ABB 57510001‑AA DSCA114 Asynchronous Serial Communication Module

Technical Specifications

Model:57510001‑AA(DSCA114)

Brand:ABB

Product Type:Asynchronous serial communication module

Communication Interface:RS‑232,RS‑485

Baud Rate Range:300‑19200bps

Power Supply:Supplied via rack backplane

Bus Interface:MasterPiece local bus connector

Indicator:Running,communication,fault LED status indicators

Feature:Rack plug‑in installation,support serial data interaction with HMI,PLC and other third‑party devices

System Compatibility:ABB Advant Master,MasterPiece200,S100 I/O DCS system

Remark:Legacy EOL spare component;confirm controller bus matching requirement before replacement

Module Form:Rack‑mount plug‑in PCB board

Weight:0.45 kg

Dimension:234 mm×100 mm×25 mm

Protection Grade:IP20

Certification:CE

Working Temperature:‑10℃ ~ +60℃,non‑condensing

Storage Temperature:‑40℃ ~ +85℃

Humidity:5%‑95% non‑condensing

Application:Power plant,petrochemical,papermaking industry,realize serial data communication between Advant Master DCS system and external HMI,third‑party PLC and instruments,complete serial protocol data interaction,system overhaul and spare‑part replacement.

Product Details

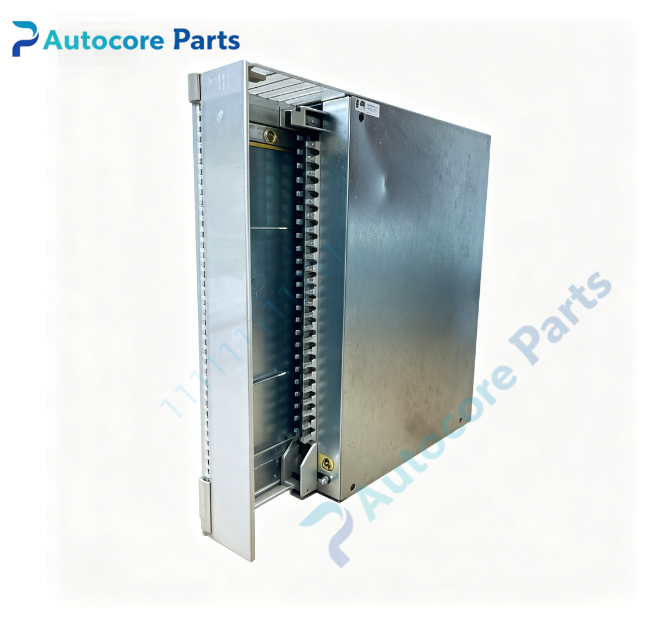

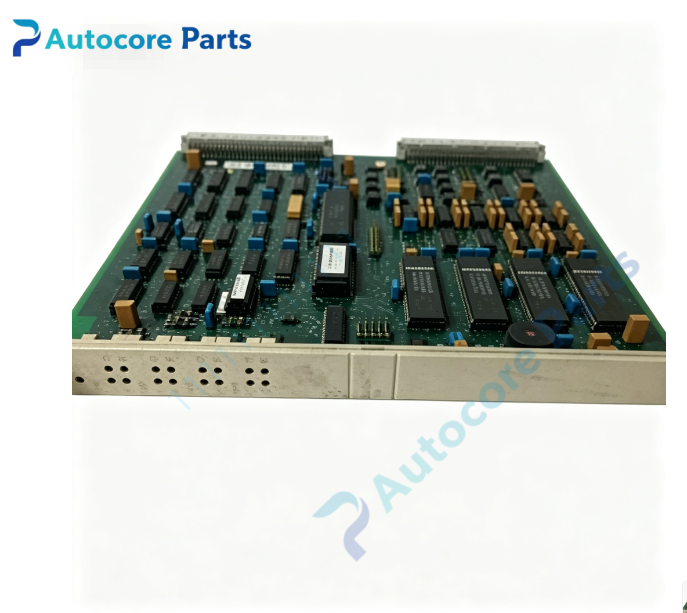

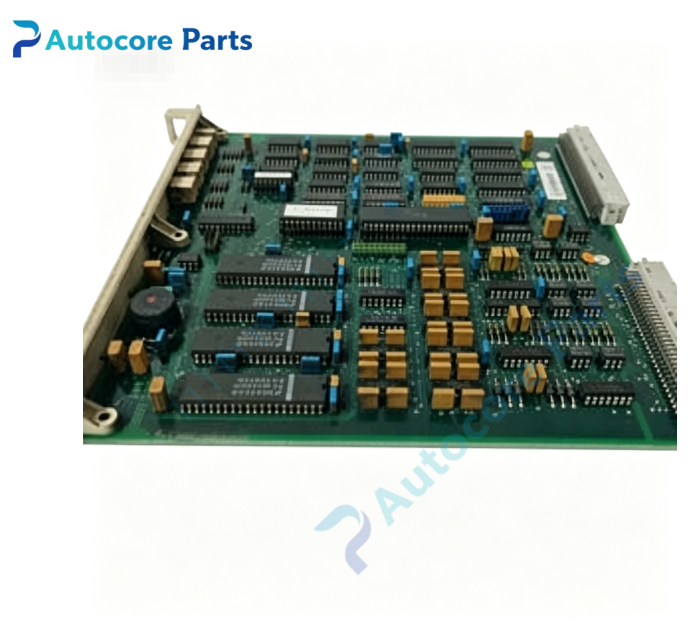

57510001‑AA,type DSCA114,is asynchronous serial communication module for ABB Advant Master DCS system.

It provides RS‑232 / RS‑485 serial channel,realizes data exchange between controller and external third‑party equipment such as man‑machine interface,external PLC and field instruments. Rack plug‑in structure,insert into controller unit slot,with multi‑group LED for communication status diagnosis. Module fault will cause serial communication channel offline,loss of data interaction with external devices. Widely used for old‑generation Advant series DCS site maintenance.

Note:This is legacy EOL spare component,widely used for process industry spare‑part replacement.
