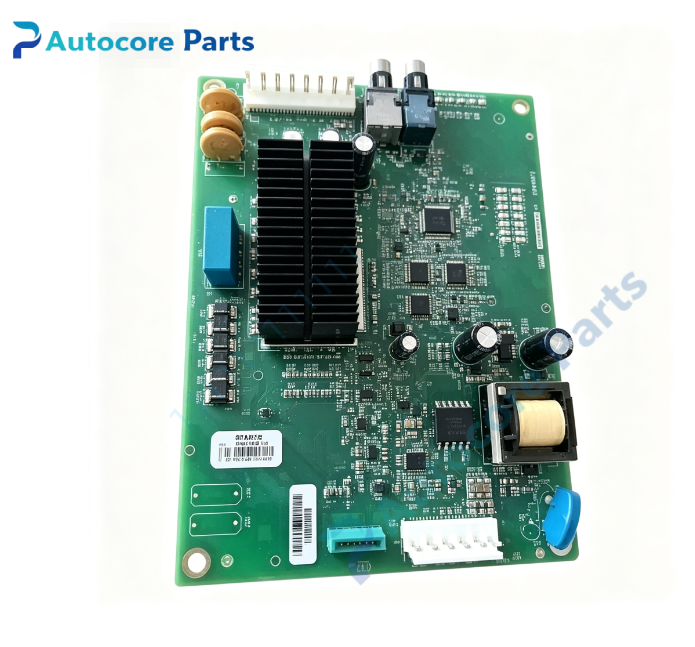

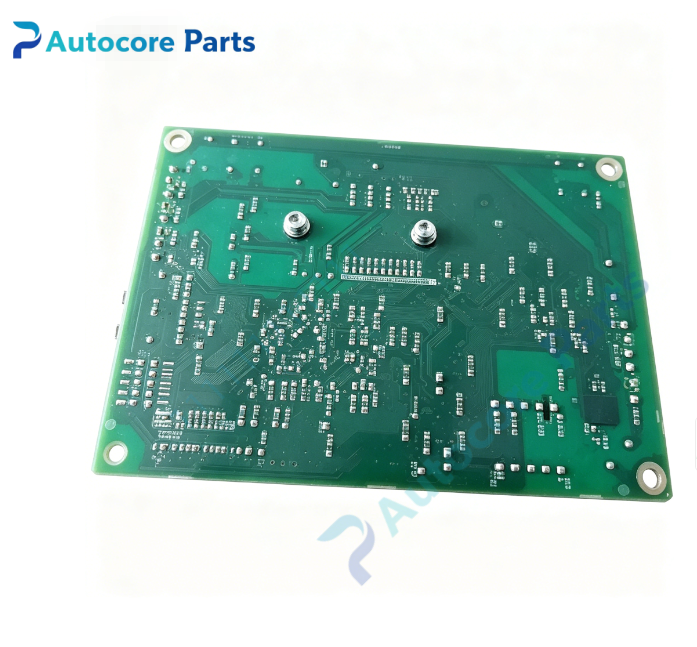

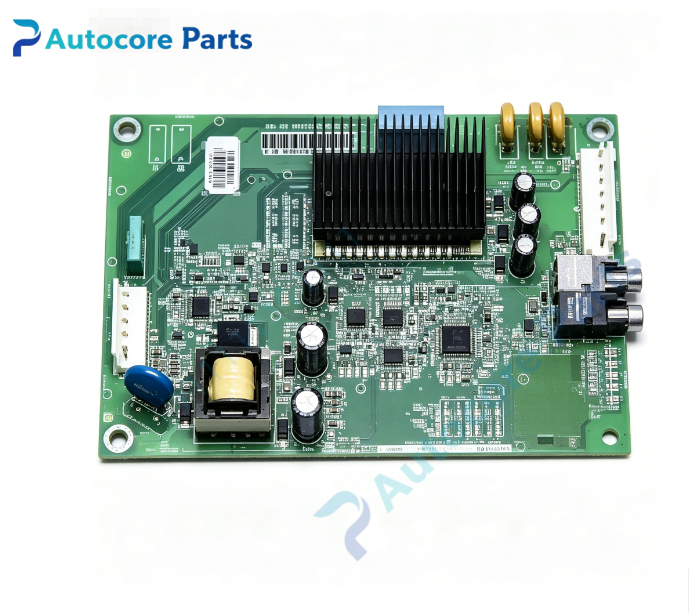

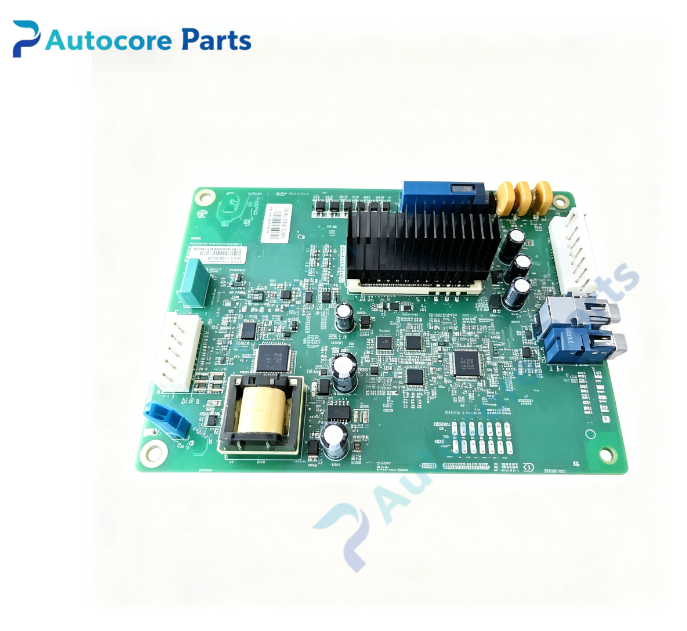

ABB AFIN‑02C Motor Control Board

Technical Specifications

Model:AFIN‑02C

Brand:ABB

Part No:3AXD50000038423

Replaced old part:AFIN‑01C,64693808

Product Type:Fan inverter motor control board

Weight:0.14 kg

Dimension:140mm×100mm×30mm

Operating Temperature:-20℃ ~ +60℃

Storage Temperature:-40℃ ~ +85℃

Humidity:5%‑95% non‑condensing

Feature:Full backward compatibility with AFIN‑01C,support fan drive closed‑loop control,real‑time fan speed monitoring and fault diagnosis

System Compatibility:ABB medium‑high power drive fan inverter kit,match R8I fan assembly

Remark:Legacy drive spare component;direct substitute for AFIN‑01C,no hardware modification required for replacement.

Product Details

AFIN‑02C (3AXD50000038423) is ABB fan inverter motor control board,used to control and monitor the cooling fan of high‑power frequency converter.

It is the upgraded replacement model of AFIN‑01C(64693808),fully backward compatible without modification.Realize fan speed closed‑loop regulation,collect fan running status and alarm signal,feed back fault information to main drive control unit.Board failure will cause fan abnormal operation,over‑temperature alarm and drive trip,widely used for old drive site overhaul and spare‑part replacement
