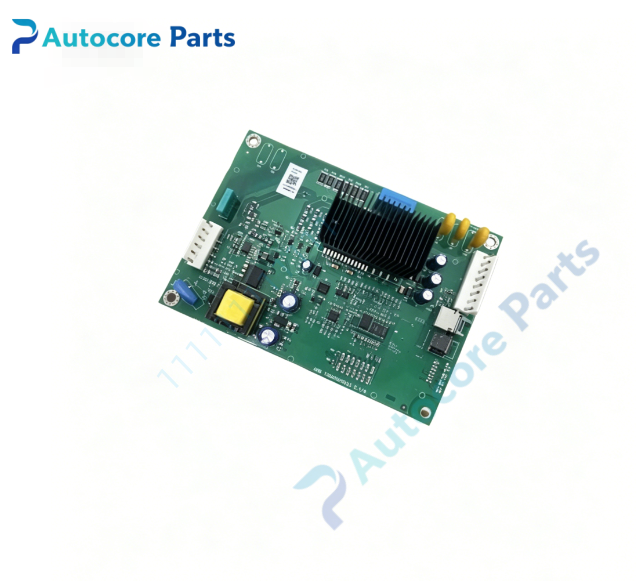

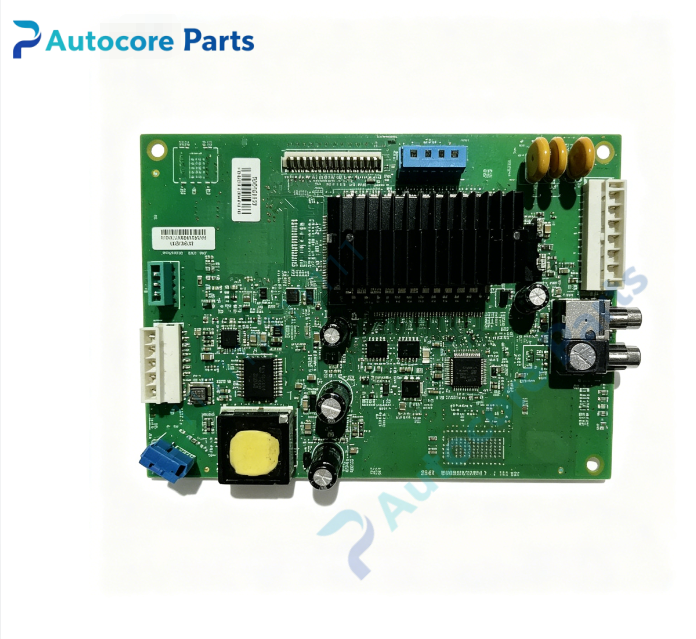

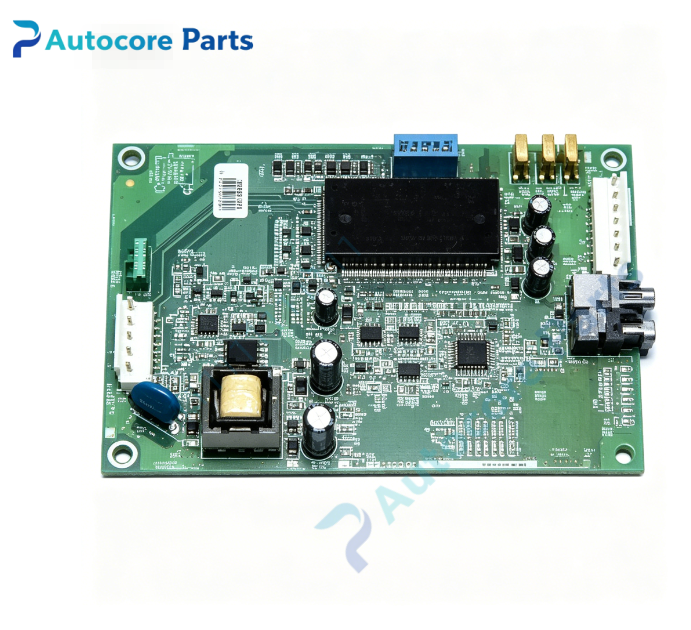

ABB AFPS‑61C Fan Power Supply Board

Technical Specifications

Model:AFPS‑61C

Brand:ABB

Part No:3AXD50000000753

Product Type:Cooling fan switch power supply board

Input voltage:100‑240V AC

Output:Fan dedicated power output

Weight:0.50 kg

Dimension:178mm×127mm×30mm

Operating Temperature:-20℃ ~ +60℃

Storage Temperature:-40℃ ~ +85℃

Humidity:5%‑95% non‑condensing

Feature:Isolated switching power supply design,over‑voltage,over‑current,short‑circuit protection,real‑time fan power monitoring

System Compatibility:ABB ACS800 series high‑power converter,fan unit power supply assembly

Remark:Legacy drive spare component;responsible for supplying power to cooling fan assembly,check fan assembly matching status before replacement.

Product Details

AFPS‑61C (3AXD50000000753) is ABB dedicated fan power supply board for ACS800 high‑power frequency converter.

Adopt isolated switching power supply architecture,provide stable power supply for converter cooling fan assembly,with over‑voltage,over‑current and short‑circuit protection functions. Board failure will cause fan no‑run,over‑temperature alarm and drive trip. Widely used for old‑site drive overhaul and spare‑part replacement.
