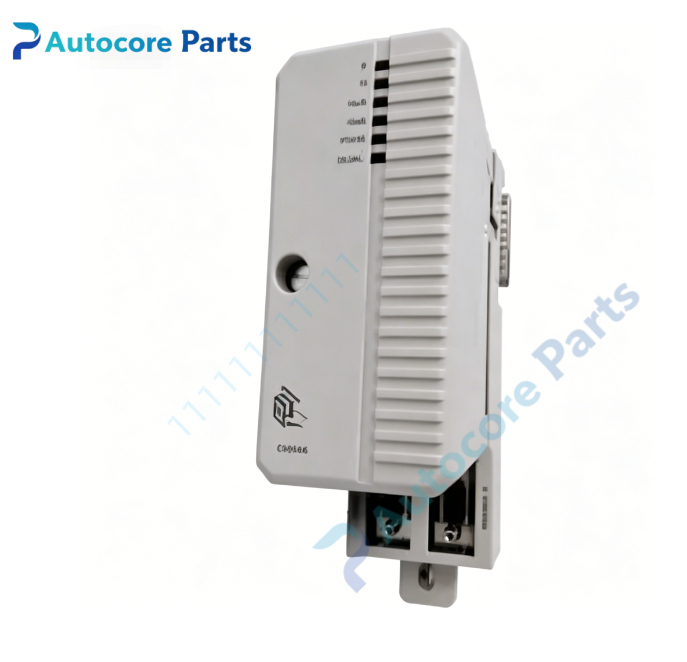

ABB BIVECTOR535‑18 Servo Drive

Technical Specifications

Model:BIVECTOR535‑18

Brand:ABB

Product Type:AC servo drive, Bivector500 series

Input voltage:3×400‑480V AC

Rated output current:35A

Peak output current:70A

Control mode:Torque / Speed / Position control,field‑oriented vector control

Feedback support:Resolver,encoder

Interface:RS232/RS485 serial port,Digital I/O,Analog input/output,enable terminal

Communication:Serial interface for parameter setting and monitoring

Weight:12.5 kg

Dimension:420mm×225mm×155mm

Operating Temperature:0℃ ~ +45℃

Storage Temperature:-20℃ ~ +70℃

Humidity:5%‑95% non‑condensing

Feature:High dynamic response,on‑board fault memory,auto‑tuning function,support multi‑axis synchronization

System Compatibility:ABB 8C series brushless servo motors,packaging,machine‑tool,wood‑working automation equipment

Remark:Legacy EOL spare component;match resolver‑based 8C servo motor,please check motor rating before replacement.

Product Details

BIVECTOR535‑18 belongs to ABB Bivector500 series high‑performance AC servo drive.

Adopts field‑oriented vector control technology,support torque,speed and position control modes;equipped with fault memory and auto‑tuning function,realize high‑precision motion control and multi‑axis synchronization. Widely used in machine tools,packaging,wood‑working and textile automation lines. Drive fault may cause motor stall,alarm and equipment shutdown,mainly used for old‑equipment overhaul and spare‑part replacement.
