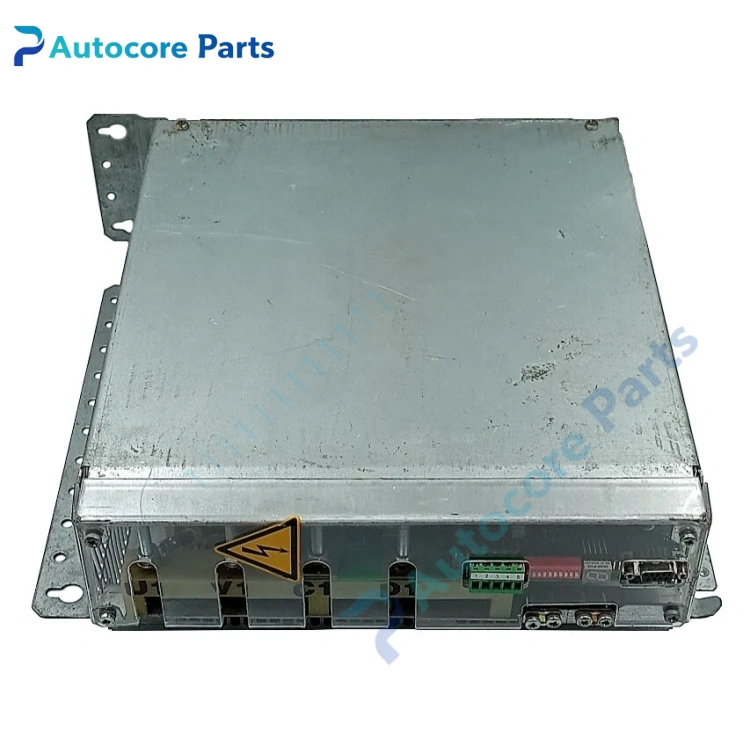

ABB DCF504A0050-0000000 Exciter Module

Feature & Principle

It is a dedicated thyristor excitation power module for ABB DCS500B DC drive. It converts AC input into adjustable DC excitation current for the field winding of DC motors. It adjusts excitation voltage and current dynamically according to drive control commands to realize field weakening and speed regulation. It communicates with the main drive control unit via fiber link, with built-in overcurrent, overvoltage and overheat protection. Widely used for heavy-duty DC motor control in rolling mills and paper machines.

Specifications

Model: DCF504A0050-0000000 Brand: ABB Applicable system: DCS500B DC drive Output current: 50 A Output voltage: 420 VDC Cooling: Forced air cooling Communication: Optical fiber interface Mounting: Cabinet rack installation Lifecycle: Discontinued legacy spare Application: Steel rolling, paper machine, heavy industrial DC motor drive cabinet Certification: CE, UL

Components & Diagnostics

Thyristor power stack, trigger circuit, fiber transceiver, cooling fan, status LED indicators, power terminal block. Common faults: no excitation output, thyristor damage, fiber communication loss, overheat alarm, fan failure.

Product Brief

DCF504A0050-0000000 field exciter module, ABB DCS500B DC drive spare widely used for heavy industry DC drive cabinet overhaul and replacement.
