ABB INICT13A Infi-Net To Computer Transfer Module

Feature & Principle

It is ABB Bailey INICT13A ICT communication gateway module for INFI90 DCS. It acts as CIU (Computer Interface Unit), realizing bidirectional data exchange between internal Infi-Net control loop and upper HMI, historian or SCADA host. It stores point definition table, processes exception report upload and host command downlink. It can match IMMPI01 terminal unit to provide RS232 / SCSI interface. This module is discontinued, successor is SPICT13A, widely used in thermal power and petrochemical DCS cabinet maintenance.

Specifications

Model: INICT13A Brand: ABB (Bailey Controls) Series: INFI 90 / Symphony Harmony Power supply: 5VDC, 2A Point capacity: up to 30000 tags Matching accessory: IMMPI01 terminal module Network: Infi-Net Mounting: IEMMU rack slot mount Application: Power plant, chemical, pulp & paper DCS supervisory communication Certification: CE

Components & Diagnostics

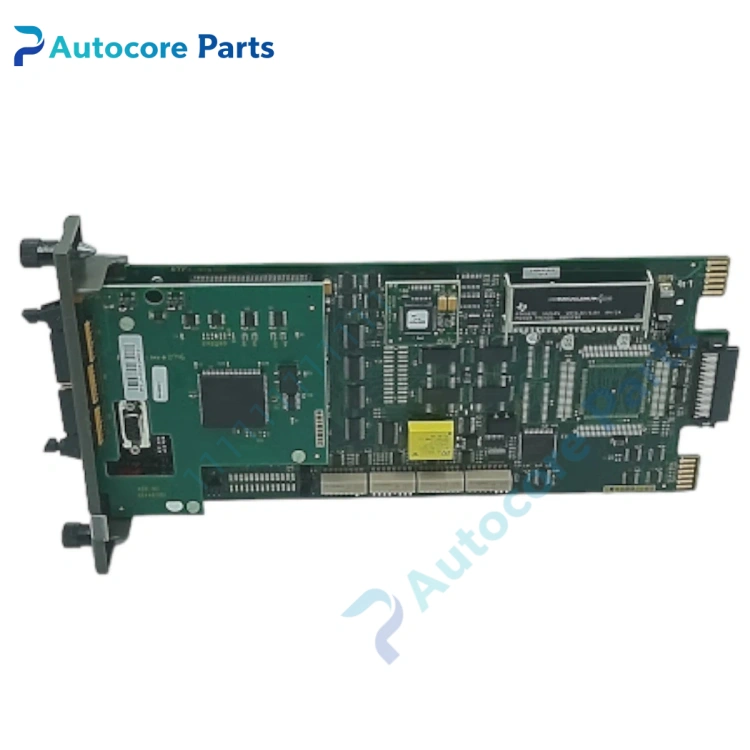

Main control PCB, Infi-Net transceiver chip, point table memory, SCSI / serial interface circuit, status LED. Common faults: memory data loss, Infi-Net communication timeout, interface chip damage, backplane contact poor.

Product Brief

INICT13A gateway communication module, ABB Bailey INFI90 DCS obsolete spare widely used for power plant DCS cabinet overhaul and replacement.
