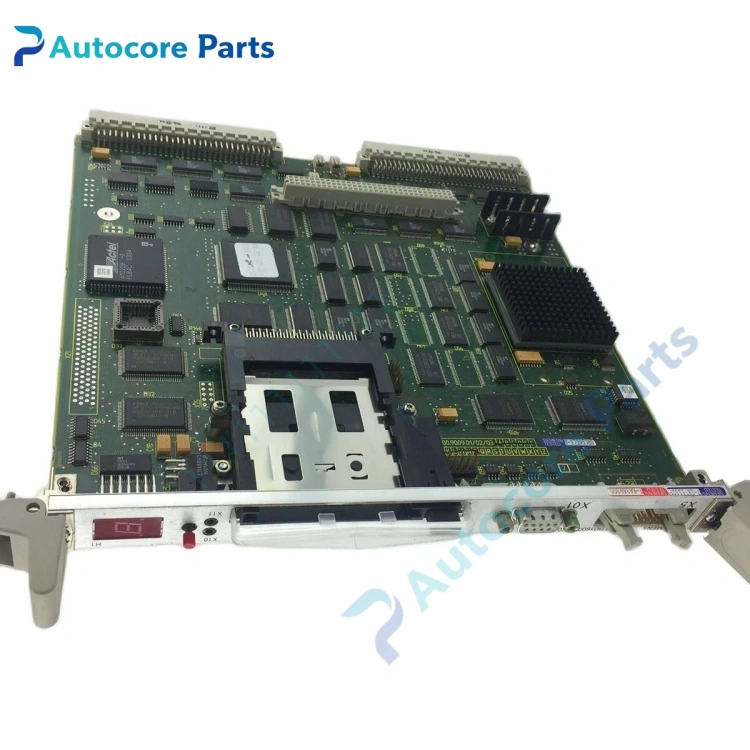

Siemens 6DD1600-0AK0 SIMADYN D PM6 Processor Module

Feature & Principle

It is Siemens SIMADYN D PM6 high-speed processor module. It adopts 64-bit RISC architecture, supports ultra-short control cycle down to 0.1ms, suitable for complex closed-loop calculation of high dynamic motion control. It communicates with other rack modules via L local bus and C communication bus. It has 8 built-in binary digital inputs, 4 of which can be used for interrupt triggering. Program configuration by D7-SYS CFC/SFC under STEP7. This model is discontinued, widely used for rolling mill, large synchronous drive and power unit control maintenance.

Specifications

Model: 6DD1600-0AK0 Brand: Siemens Series: SIMADYN D CPU: 64-bit RISC, 64/128MHz Memory: 8MB DRAM, 256KB buffered SRAM Digital input: 8 binary DI Bus: L-Bus, C-Bus Programming tool: STEP7 + D7-SYS Mounting: Subrack slot mount, forced air cooling required Application: Steel rolling mill, high-power DC/AC drive, turbine excitation control Certification: CE

Components & Diagnostics

Main processor chip, memory circuit, bus interface, DI input circuit, status LED. Common faults: battery failure, SRAM data loss, bus communication error, cycle overtime alarm, power supply damage.

Product Brief

6DD1600-0AK0 processor module, Siemens SIMADYN D high-performance drive control spare widely used for metallurgy and heavy industry control cabinet overhaul and replacement.
