Products Description
Technical Specifications
Model: PP836 (Part No:3BSE042237R1)
Series: ABB Panel800 Industrial HMI
Display:6.5‑inch TFT color screen, resolution 640×480 VGA
Operation: Resistive touch screen + integrated membrane function keys
Supply:24V DC (18‑32V DC tolerance)

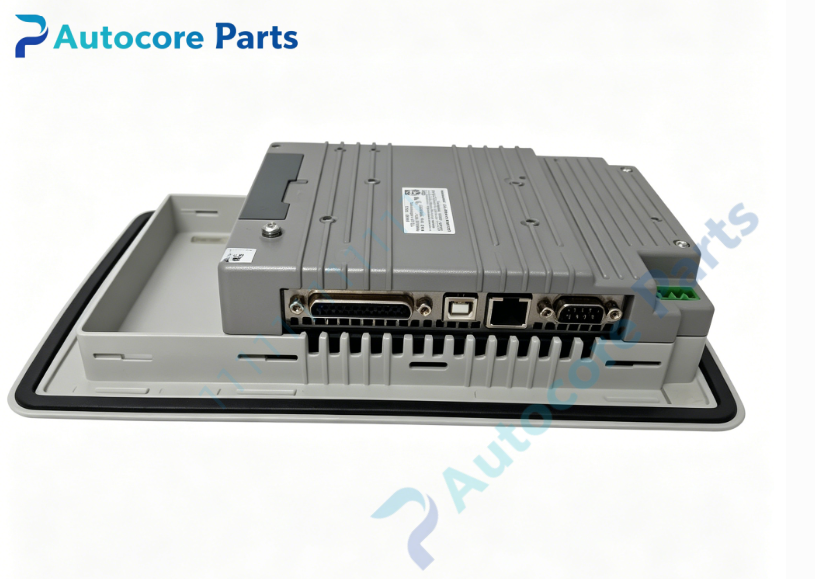

Interfaces: Ethernet, RS‑232, RS422/485 serial ports
Memory:128MB Flash,128MB RAM
Configuration Software: Panel Builder 800
Front panel protection: IP65
Operating Temperature:0℃ ~ +55℃
Applicable System: ABB System800xA, AC800M, Freelance DCS; supports Modbus RTU/TCP for third‑party controllers

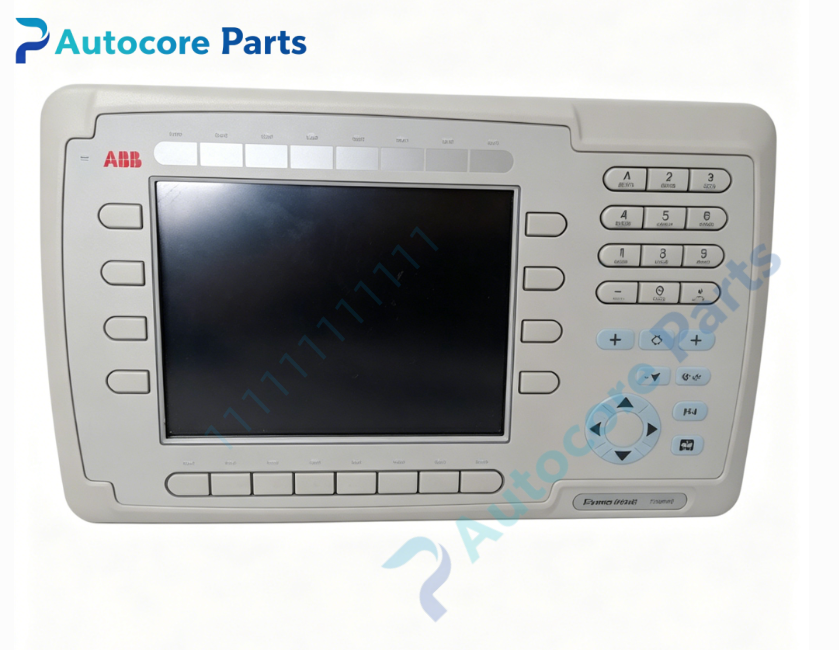

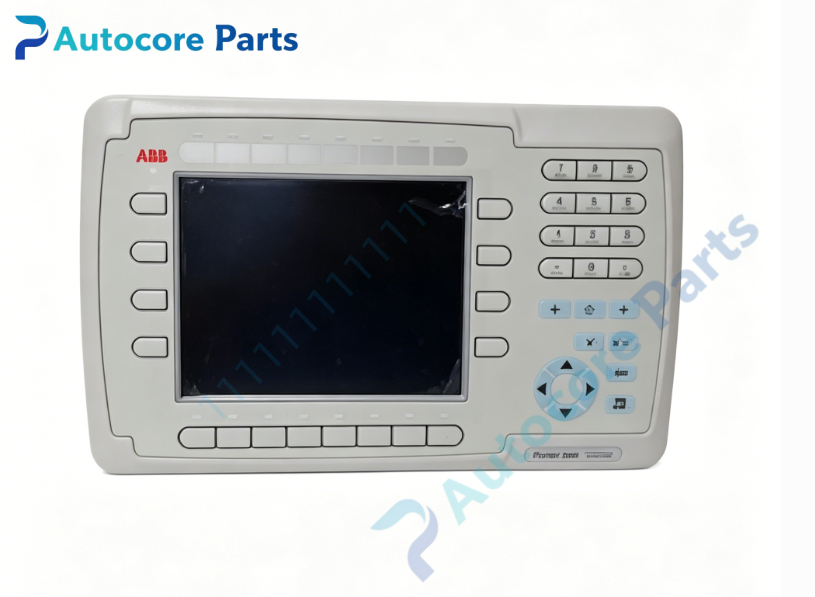

PP836 belongs to ABB Panel800 product family, 6.5‑inch operator panel combining resistive touch and physical membrane function keys. The physical keys enable quick one‑touch operation for frequently used commands, suitable for industrial sites where operators wear gloves. It realizes real‑time process value display, alarm management, parameter setting and manual equipment control.
Project configuration is completed via Panel Builder 800 engineering software. It supports connection to ABB System800xA, AC800M and Freelance DCS systems. Modbus protocol allows data exchange with third‑party automation equipment. Front‑panel IP65 rating provides dust and splash‑water protection for cabinet front‑mount installation. Adjustable backlight supports long‑term continuous operation in control cabinet environments.
It is widely used in energy, chemical, pulp & paper and water‑treatment control cabinets. Verify compatibility of HMI project files before replacement. Disconnect 24 V DC power supply before installation and removal. Suitable for on‑site fault replacement and long‑term spare stocking for existing Panel800 HMI devices.
