Products Description
Technical Specifications

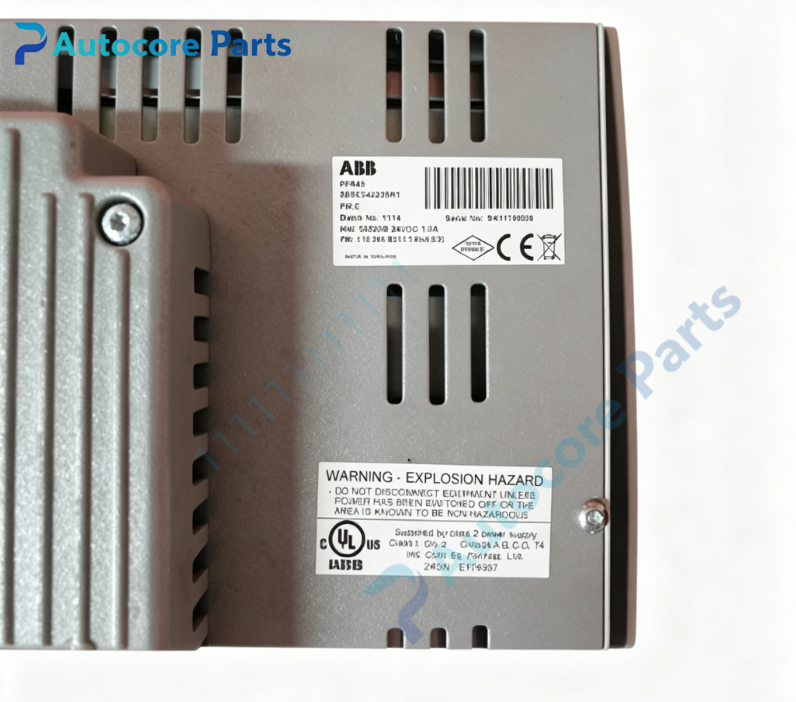

Model: PP845 (Part No:3BSE042235R1)
Series: ABB Panel800 Industrial HMI
Display:7‑inch 16:9 TFT color screen, resolution 800×480
Operation: Resistive touch screen, supports gloved operation
Supply:24V DC (18‑32V DC tolerance)

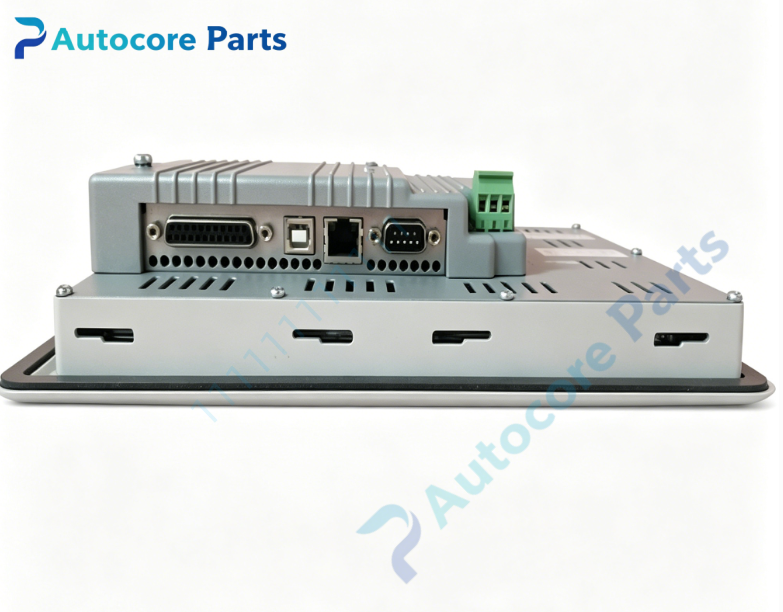

Interfaces: 1×Ethernet 10/100, RS‑232, RS422/485, USB2.0 Host
Memory:128MB Flash,128MB RAM
Configuration Software: Panel Builder 800
Front panel protection: IP65, rear IP20
Operating Temperature:0℃ ~ +55℃
Applicable System: ABB System800xA, AC800M, Freelance DCS; supports Modbus RTU/TCP for third‑party devices

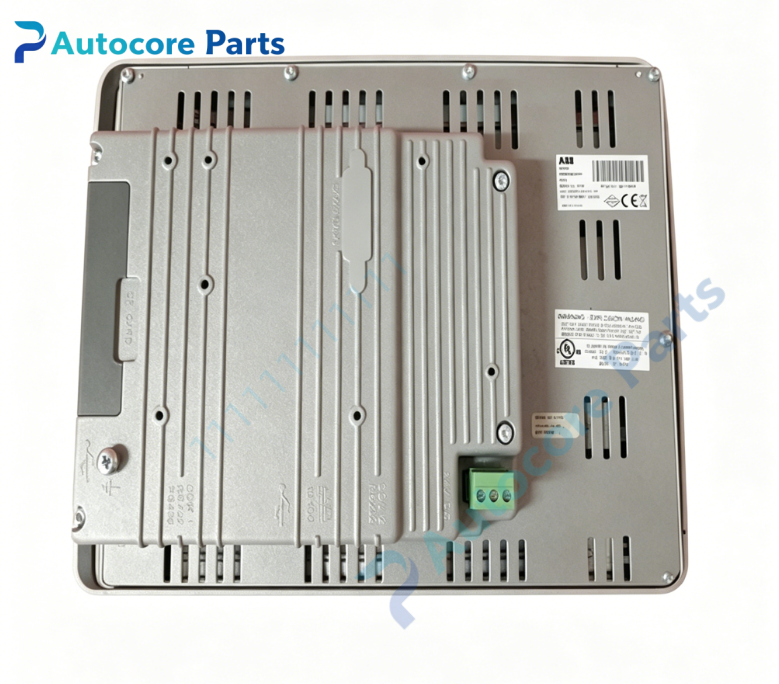

PP845 is a compact widescreen touch operator panel of ABB Panel800 product family. With 7‑inch wide‑format display, it is suitable for installation space‑limited cabinet locations. It performs real‑time process data display, alarm message management, parameter modification and manual equipment operation.
Configured by Panel Builder800 engineering software, it can connect to ABB DCS and controller platforms, and communicate with third‑party automation equipment via Modbus protocol. The front‑panel IP65 rating provides dust and splash‑water protection for cabinet front mounting. Resistive touch supports operation with work gloves for industrial site scenarios. LED backlight with dimming function ensures stable long‑time operation.
It is widely used in chemical, water treatment, energy and small‑scale process control cabinets. Confirm HMI project program compatibility before replacement. Cut off 24V DC power supply during disassembly and installation. Suitable for on‑site fault replacement and long‑term spare stocking for existing Panel800 HMI devices.
