Technical Specifications

• Model: PP846, 3BSE042238R1

• Brand: ABB

• Screen: 10.4‑inch TFT‑LCD color touch screen

• Resolution: 800×600 SVGA

• Supply Voltage: 24 V DC (18‑32 V DC)

• Memory: 64 MB RAM, 64 MB Flash

• Interfaces: Dual Ethernet, RS232/RS422/RS485 serial port, USB

• Protection Class: IP66(Front), IP20(Rear)

• Operating Temperature: 0℃ ~ +50℃

• Backlight Service Life: 50000 hours

• Weight: 2.5 kg

• Application: ABB 800xA control system

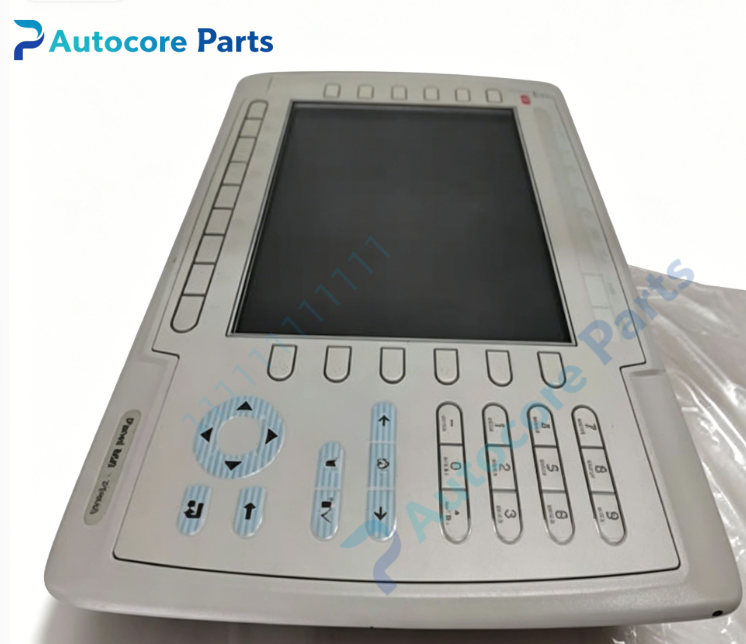

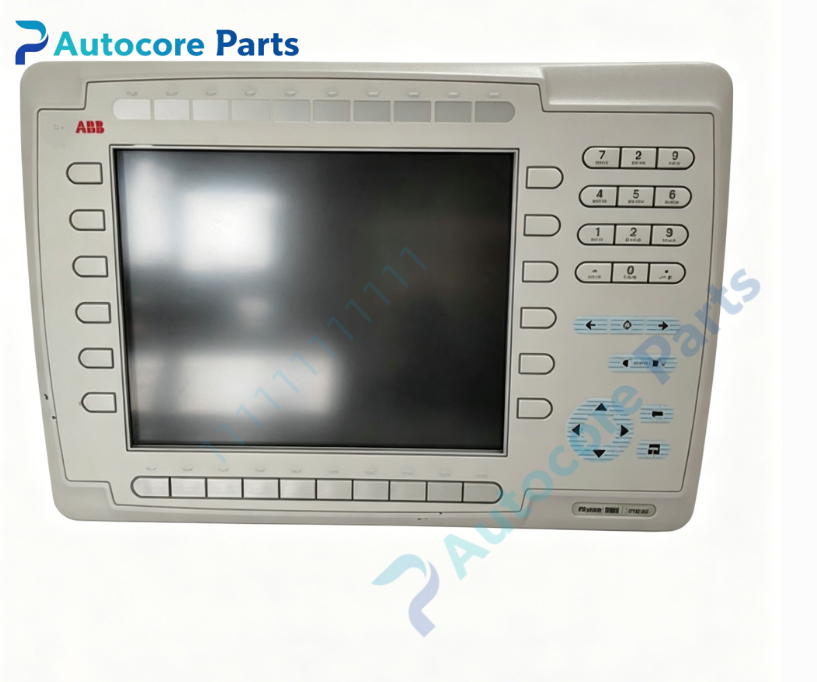

Product DetailsPP846 3BSE042238R1 belongs to ABB Panel 800 series industrial operator HMI panel, designed for ABB 800xA distributed control system. It realizes real‑time process monitoring, parameter setting, alarm prompting and trend data recording on site. Equipped with 10.4‑inch high‑definition color touch display, supporting multiple communication interfaces and mainstream industrial communication protocols. The die‑cast aluminum housing provides excellent dust‑proof and splash‑proof performance for front panel, adapting to harsh factory and power plant working conditions. It can complete equipment operation and data visualization efficiently. Widely used in power, chemical, metallurgy and factory automation fields. It is an important spare part for on‑site HMI replacement and system maintenance.
