Technical Specifications

Model: PP826, 3BSE042244R1

Brand: ABB

Screen: 5.7‑inch STN‑LCD color display

Resolution: 320×240

Supply Voltage: 24 V DC (18‑32 V DC)

Memory: 128 MB RAM, 128 MB Flash

Interfaces: Ethernet, RS232/RS422/RS485 serial port, USB

Protection Class: IP65(Front), IP20(Rear)

Operating Temperature: 0℃ ~ +55℃

Weight: 1.2 kg

Application: ABB 800xA control system

Product Details

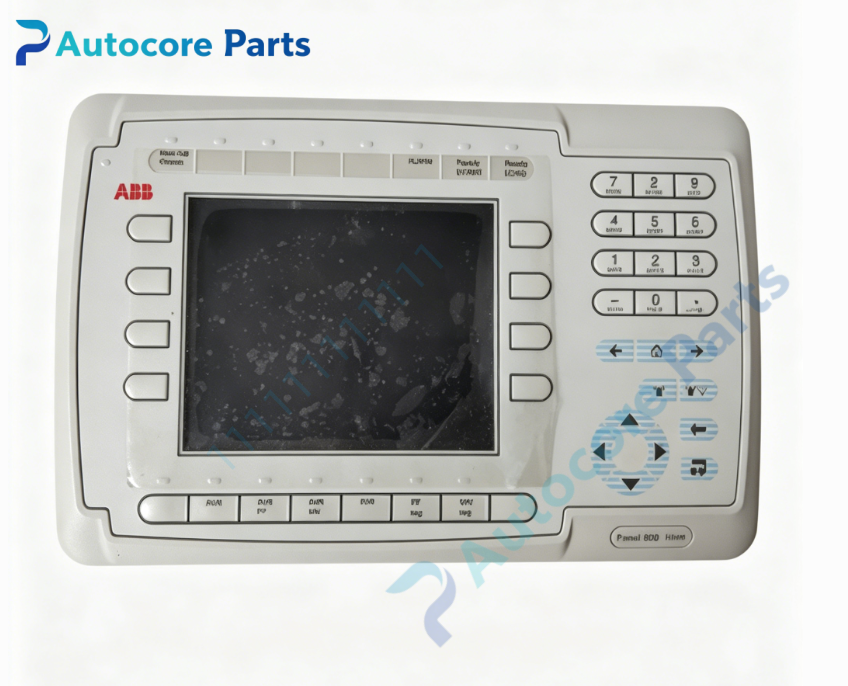

PP826 3BSE042244R1 belongs to ABB Panel 800 series compact operator HMI panel, compatible with ABB 800xA distributed control system. It realizes on‑site process data display, parameter modification, alarm monitoring and historical trend recording.

Equipped with 5.7‑inch color display, resistive touch supports glove operation. Multiple communication interfaces support mainstream industrial protocols. Compact structure, die‑cast aluminum front panel meets IP65 protection grade, adapting to dust and splash‑prone industrial workshops, power plants and chemical sites.

It adopts panel embedded installation, easy for on‑site replacement and debugging. Widely used in metallurgy, power, chemical and process automation industries, it is a key spare part for old system renovation and HMI fault replacement.
