ABB PP875 3BSE092977R1 Operator Panel

Technical Specifications

Model: PP875, 3BSE092977R1

Brand: ABB

Screen: 7‑inch TFT‑LCD widescreen resistive touch

Resolution: 800×480 (16:9)

Brightness: 350 cd/m²

Processor: 1 GHz ARM9

Memory: 512 MB DDR RAM, 2 GB SSD

Supply Voltage: 24 V DC (18‑32 V DC)

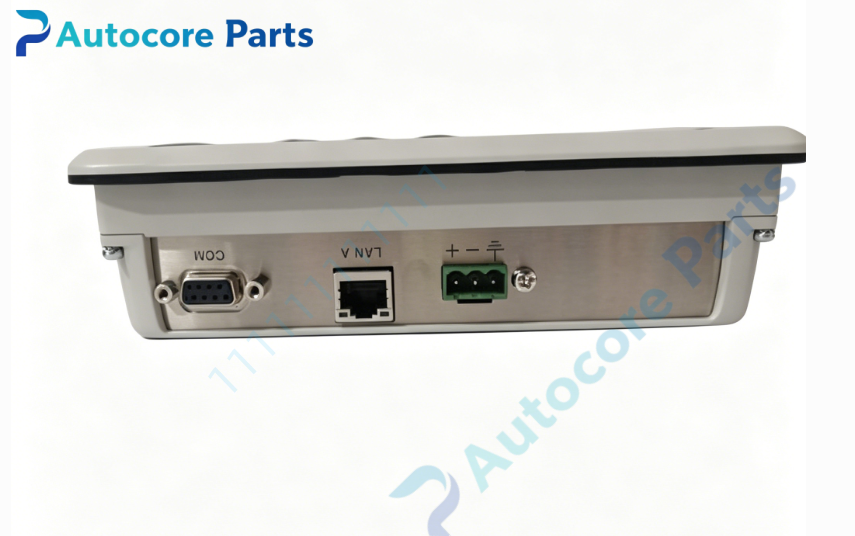

Interfaces: 1×10/100Mbps Ethernet, USB2.0, SD card slot

Protection Class: IP65(Front), IP20(Rear)

Operating Temperature: ‑10℃ ~ +60℃

Weight: 0.8 kg

Application: ABB 800xA DCS System

Product Details

PP875 3BSE092977R1 belongs to ABB Panel 800 series compact widescreen operator panel, specially matched with ABB 800xA distributed control system. It realizes on‑site process data monitoring, parameter configuration, alarm display and historical trend query.

Equipped with 7‑inch wide‑angle TFT LCD resistive touch screen, it supports glove touch operation. Industrial‑grade ARM9 processor ensures stable running of HMI project. Die‑cast aluminum front panel reaches IP65 protection level, resisting dust and splashing water for harsh industrial workshops, power plants and chemical sites.

It supports cabinet flush mounting and VESA bracket installation. Compact dimension saves cabinet installation space. Widely used in energy, metallurgy, chemical and process automation industries, it is an important spare part for on‑site HMI replacement and system upgrade maintenance.
