ABB PP881 3BSE092978R1 Operator Panel

Technical Specifications

Model: PP881, 3BSE092978R1

Brand: ABB

Screen: 10.1‑inch TFT‑LCD widescreen resistive touch

Resolution: 1024×600 (16:9)

Brightness: 500 cd/m²

Processor: 1 GHz ARM9

Memory: 1 GB RAM, 2 GB SSD

Supply Voltage: 24 V DC (18‑32 V DC)

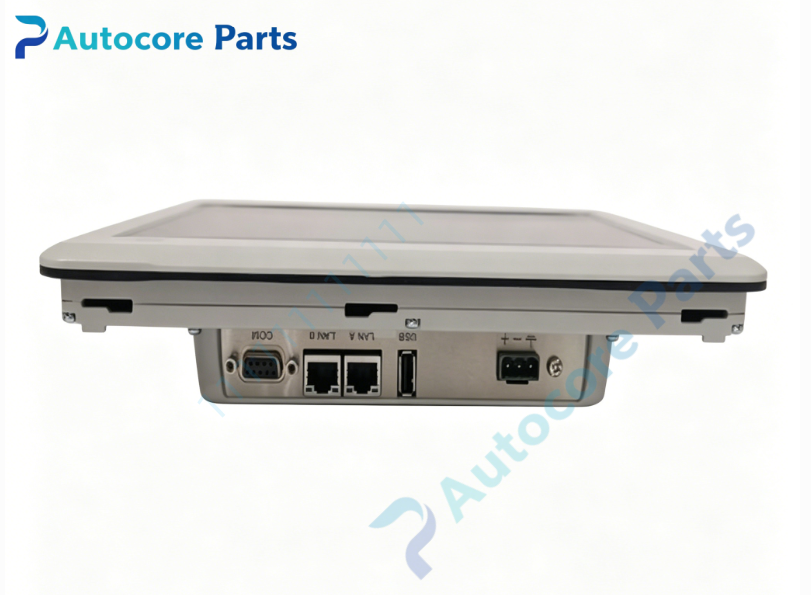

Interfaces: Dual 10/100Mbps Ethernet, 2×USB2.0, SD card slot

Protection Class: IP65(Front), IP20(Rear)

Operating Temperature: ‑10℃ ~ +60℃

Dimension: 292mm×194mm×52mm

Application: ABB 800xA DCS System

Product Details

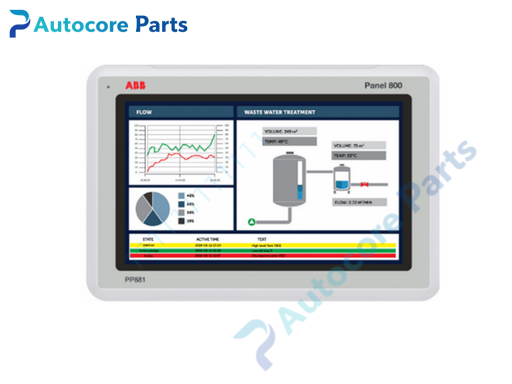

The PP881 3BSE092978R1 is a high‑performance ABB operator panel for the 800xA DCS platform, serving as a mainstream replacement unit for older generation HMI devices in industrial sites. As core human‑machine interface equipment, this industrial touch screen delivers reliable data interaction for process automation under complex on‑site conditions.

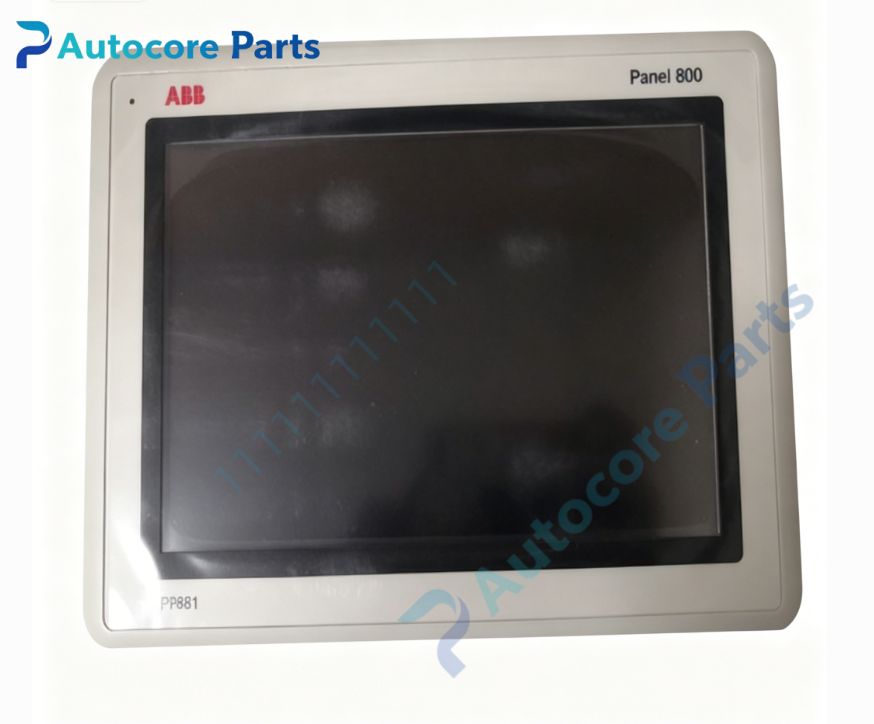

Equipped with a 10.1‑inch high‑brightness TFT‑LCD resistive touch display, it supports glove‑based touch operation, which is very practical for workshop operators wearing protective gloves. The 1GHz ARM9 processor paired with 1GB RAM and 2GB SSD storage ensures smooth loading and stable running of complex monitoring screens, alarm log recording and historical trend data storage. Dual Ethernet interfaces support network redundancy, effectively lowering communication interruption risks for key production lines.

The die‑cast aluminum front panel reaches IP65 protection grade, resisting dust accumulation and liquid splashes. It can work stably within ‑10℃ to +60℃ ambient temperature range, adapting to severe working environments in power plants, chemical plants and metallurgical workshops. Two installation options including cabinet flush mounting and VESA bracket mounting bring great flexibility for cabinet reconstruction and spare‑part replacement work.

This ABB HMI is widely deployed in energy, chemical, metallurgy and process automation industries. It completes real‑time process monitoring, on‑site parameter configuration, fault alarm popup and historical data query tasks. It acts as a critical industrial spare part for on‑site equipment overhaul, old‑system renovation and faulty operator panel replacement.
