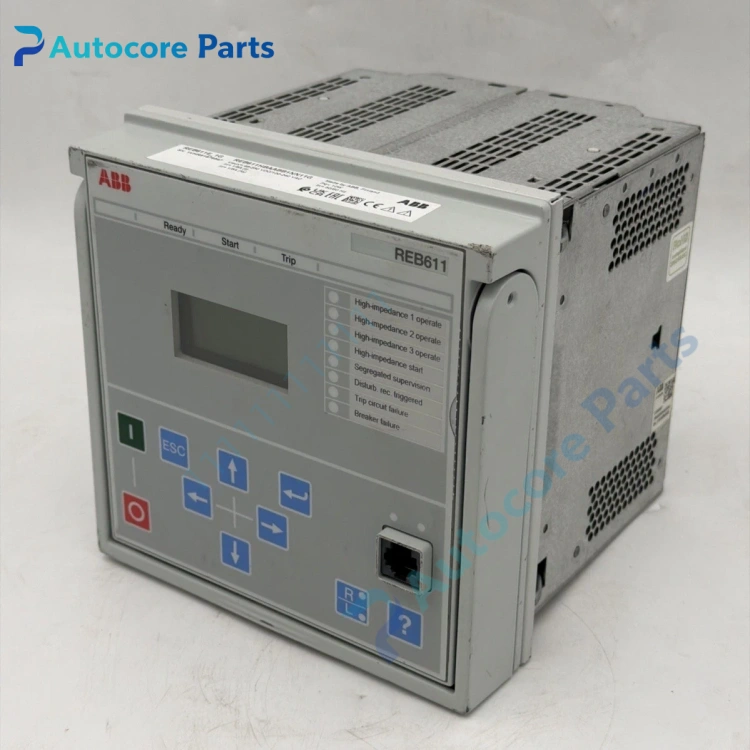

ABB REB611HBAABB1NN11G Busbar Protection Relay Unit

Feature & Principle

This protection IED adopts high impedance differential principle, monitors busbar current from each incoming and outgoing feeder. It identifies busbar internal short-circuit fault and trips rapidly to isolate fault section. It supports IEC61850 and GOOSE communication, built-in fault recorder, trip circuit supervision and self-diagnosis function.

Specifications

Model: REB611HBAABB1NN11G Brand: ABB Series: Relion 611 Type: High impedance busbar protection relay Communication: IEC61850, GOOSE Mounting: Panel flush mounting Protection: IP20 Certification: CE, IEC60255

Components & Diagnostics

Main CPU board, signal sampling board, relay output contact set, HMI display panel, Ethernet communication port and status LED. Common faults: sampling channel abnormal, communication interruption, relay contact burnout, self-supervision alarm.

Product Brief

REB611HBAABB1NN11G busbar protection relay, ABB power protection spare widely used for industrial and utility medium voltage substation busbar protection cabinet.
