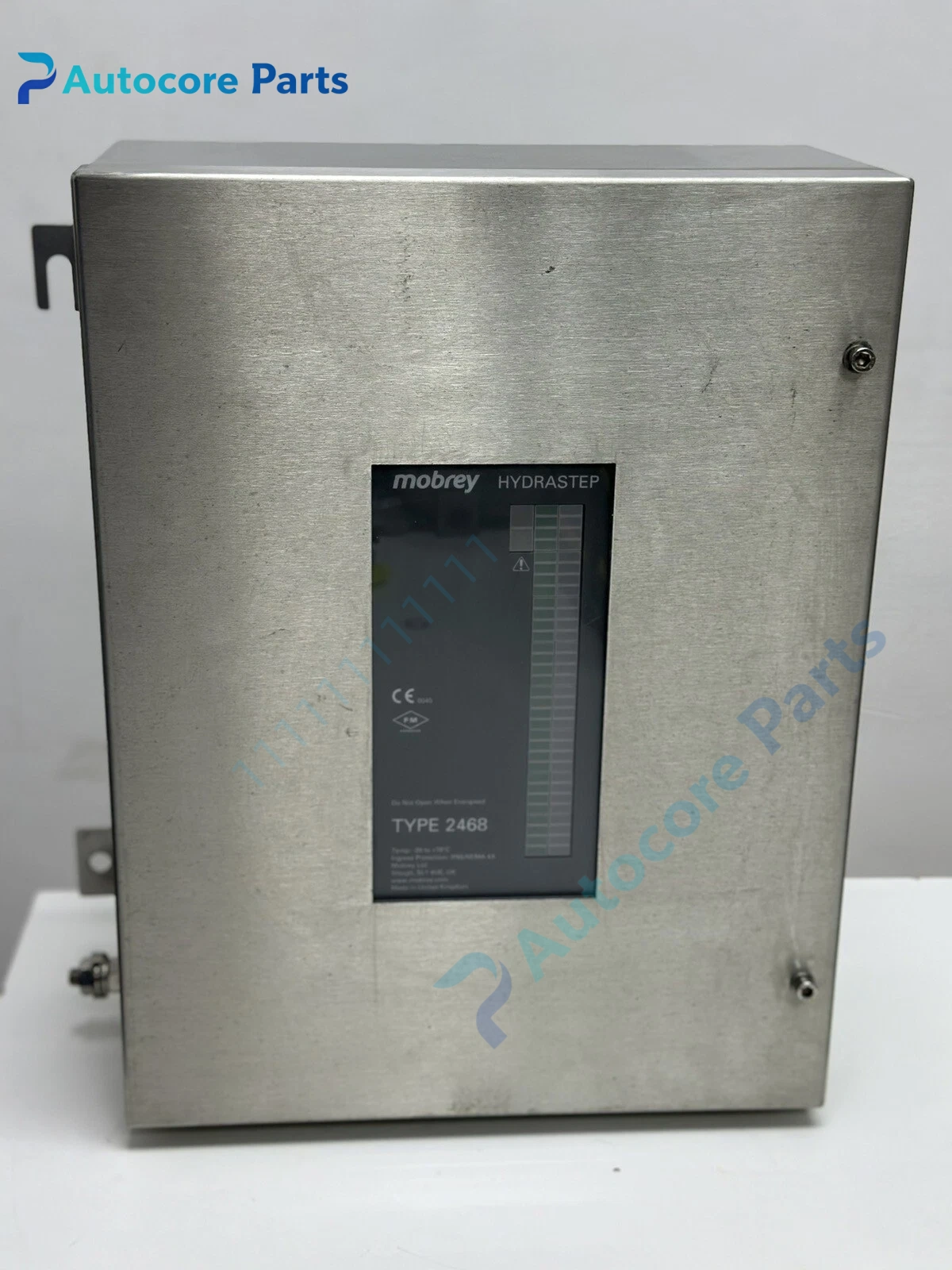

Mobrey 2468CBAD Hydrastep 2468 Boiler Electronic Water Level Gauge Controller Unit

Feature & Principle

This electronic gauge controller works with conductive electrode probes installed on boiler steam drum. It detects water level by measuring medium conductivity, identifies dry and wet electrode status, judges real-time drum water level. It outputs high/low water level alarm and trip relay signals, and supports status transmission to DCS for boiler interlock protection.

Specifications

Model: 2468CBAD Brand: Mobrey (Emerson) Series: Hydrastep 2468 Detection Principle: Conductive electrode type Output: Relay alarm / trip contacts Power Supply: 110/230V AC Mounting: Panel mount Certification: CE, IEC

Components & Diagnostics

Main control PCB, electrode signal sampling circuit, relay output assembly, status LED indicators and terminal block. Common faults: electrode scaling, signal loss, false level alarm, relay contact failure and power supply abnormality.

Product Brief

2468CBAD controller, Mobrey boiler instrument spare widely used for thermal power plant, industrial boiler steam drum water level safety monitoring and protection.
