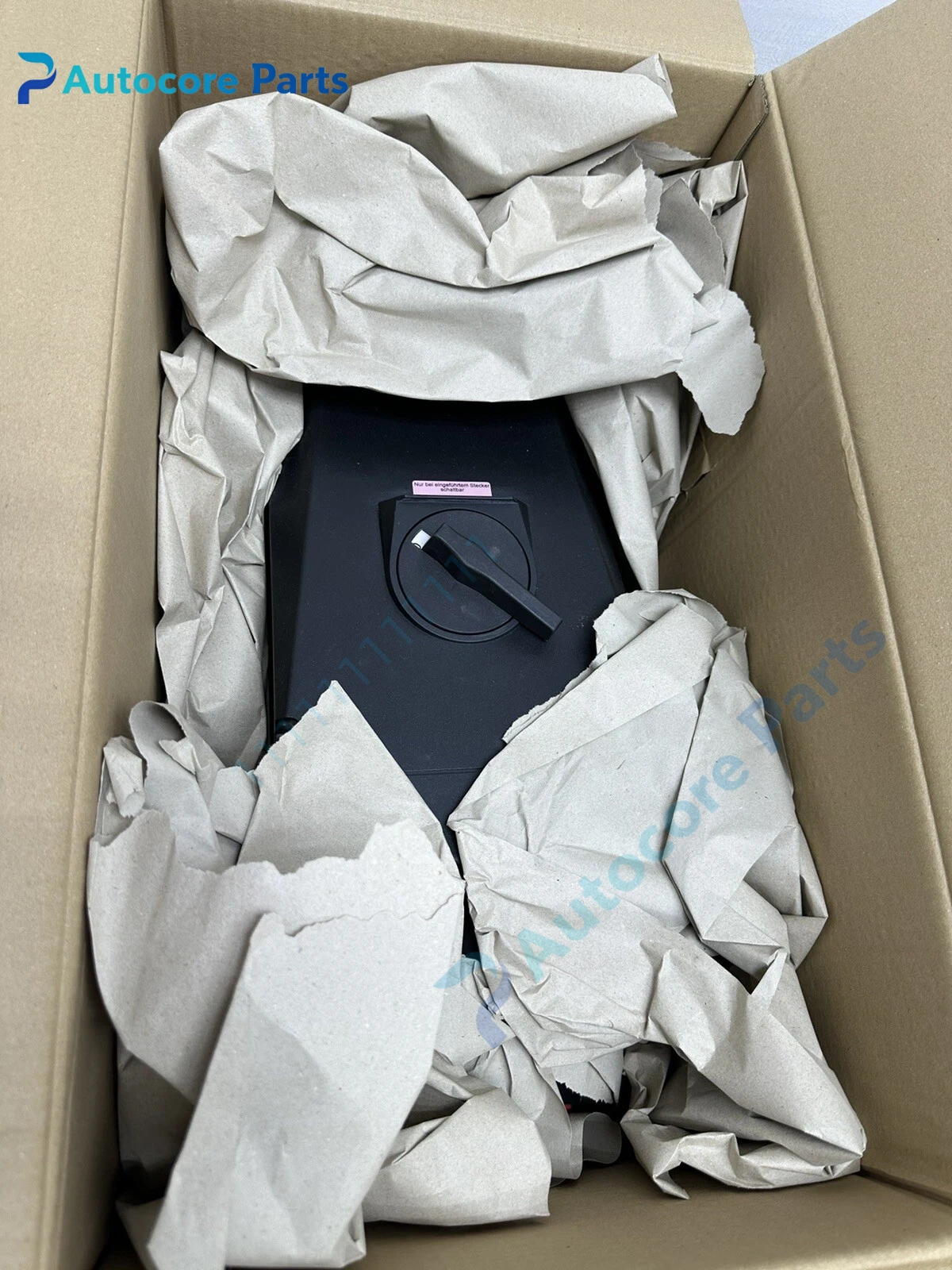

Eaton CEAG GHG5154506R3001 125A 5P Explosion-Proof Interlock Receptacle Unit

Feature & Principle

This interlock explosion-proof socket adopts mechanical interlock structure. The internal switch can only be energized after the plug is fully inserted and rotated. It locks the plug during power-on, so it cannot be pulled out with load to avoid electric arc ignition in hazardous environment. The sealed shell provides dustproof and waterproof protection, suitable for long-term use in corrosive and wet industrial sites.

Specifications

Model: GHG5154506R3001 Brand: Eaton / CEAG Crouse-Hinds Rated Current: 125A Poles: 5-pole Rated Voltage: 380-415V AC Standard: IEC60309 Hazardous Certification: ATEX, IECEx Zone1/21 Thread: M63 Housing Material: Nylon

Components & Diagnostics

Explosion-proof housing, built-in interlock switch, conductive contact assembly, sealing ring and locking mechanism. Common faults: contact overheating, interlock failure, sealing aging, internal carbon deposition and locking jamming.

Product Brief

GHG5154506R3001 receptacle, Eaton explosion-proof electrical spare widely used for chemical plant, oil and gas, paint workshop and other hazardous area mobile equipment power connection.
