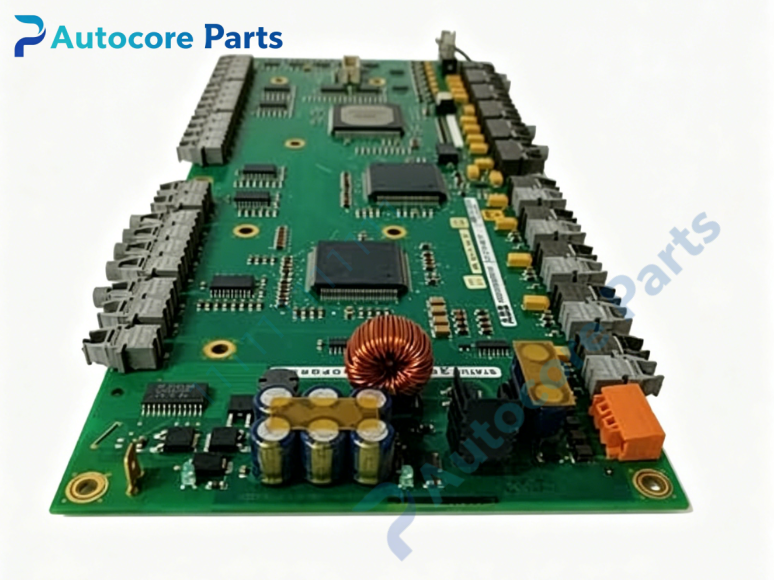

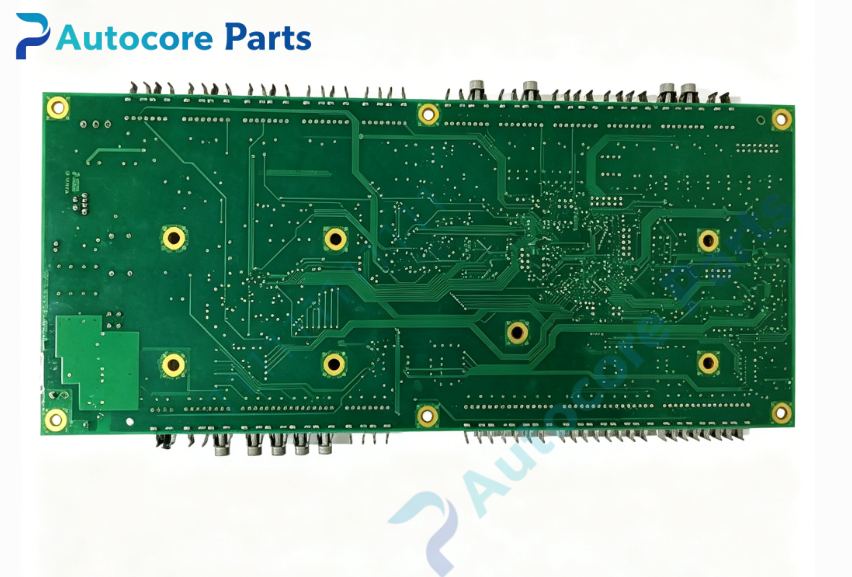

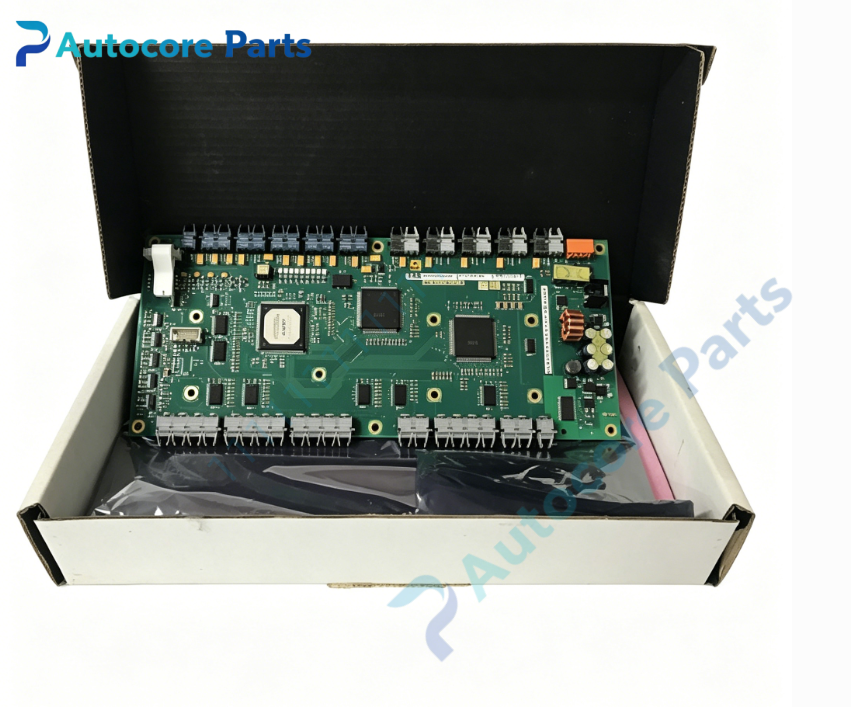

ABB UFC718AE101 HIEE300936R0101 Main Circuit Interface Board

Technical Specifications

Model: UFC718AE101

Part Number: HIEE300936R0101

Brand: ABB

Product Type: Main circuit interface trigger board

Matching System: ABB UNITROL 5000 generator excitation system

Power Supply: Cabinet backplane DC power supply

Signal Interface: Thyristor gate trigger output, power unit status feedback input

Communication Interface: Internal high‑speed bus, fiber‑optic interface

Isolation Mode: Galvanic isolation between control side and power side

Installation Method: Cabinet plug‑in card installation

Operating Temperature: 0℃ ~ +60℃, non‑condensing

Protection Class: IP20

Weight: 0.52kg

Dimension: 330mm × 180mm × 32mm

Compatible System: Thermal power, hydropower synchronous generator excitation cabinet

Core Function: Transmit trigger pulses for thyristor power unit, collect power loop working feedback signals, realize signal isolation transmission between main control board and power unit, complete trigger monitoring and hardware fault diagnosis to guarantee safe and stable operation of excitation power loop.

Product Details

The UFC718AE101 HIEE300936R0101 is main circuit interface trigger board for ABB UNITROL 5000 generator excitation system.

This UFC718AE101 board serves as critical signal link between main control processor and thyristor power unit. It receives trigger instructions from main control board and distributes precise gate pulses to thyristor components.

It collects real‑time operating status and fault feedback from power unit, and transmits feedback information back to main controller for protection logic judgment.

Adopts optocoupler isolation and fiber‑optic transmission design, effectively resisting strong electromagnetic interference in power plant environment.

On‑board monitoring circuit can detect pulse loss, phase abnormality and channel failure, and output corresponding fault alarm signals.

Conformal coated circuit board improves moisture‑proof and anti‑dust performance for harsh industrial site.

Standard plug‑in structure supports fast on‑site replacement without complex wiring modification.

It is widely used in overhaul and renovation projects of thermal power plants and hydropower station generator excitation systems.

It is important spare hardware for excitation cabinet maintenance, trigger loop debugging and defective UFC718AE101 board replacement.
