ABB UFC762AE101 3BHE006412R0101 Control Interface Board

Technical Specifications

Model: UFC762AE101

Part Number: 3BHE006412R0101

Brand: ABB

Product Type: Excitation control signal processing board

Matching System: ABB UNITROL 5000 generator excitation system

Power Supply: Cabinet backplane DC power supply

Signal Interface: Fiber‑optic communication, multi‑channel status signal input and output

Communication Interface: High‑speed internal system bus, optical fiber interface

Isolation Mode: Electrical isolation between control and power circuit

Installation Method: Cabinet plug‑in card installation

Operating Temperature: 0℃ ~ +60℃, non‑condensing

Protection Class: IP20

Weight: 0.58kg

Dimension: 330mm × 215mm × 32mm

Compatible System: Thermal power, hydropower synchronous generator excitation cabinet

Core Function: Realize high‑speed data interaction between main control unit and power unit, process trigger instructions and feedback signals, complete signal synchronization and logic judgment, support stable operation of excitation regulation and protection functions.

Product Details

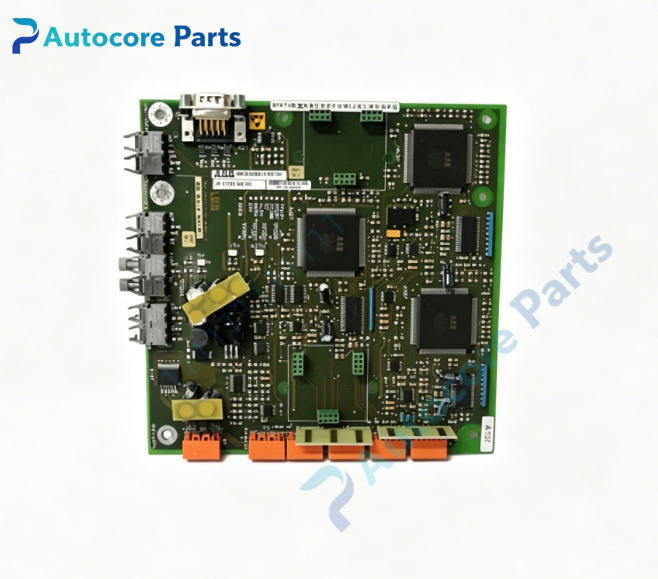

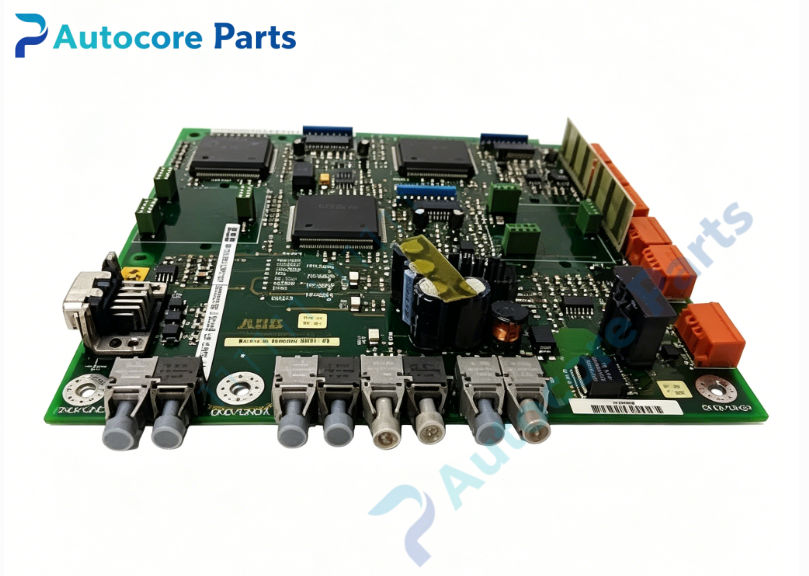

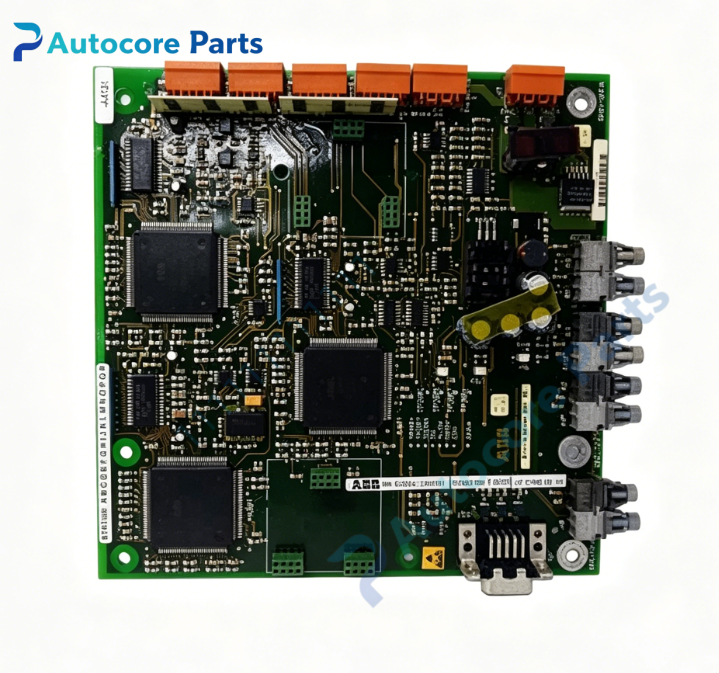

The UFC762AE101 3BHE006412R0101 is control signal processing board for ABB UNITROL 5000 generator excitation system.

This UFC762AE101 board undertakes important signal transmission and processing work inside excitation cabinet. It adopts optical fiber communication to improve anti‑interference ability in complex power‑plant electromagnetic environment.

It receives control commands from main control board, forwards trigger signals to power unit interface board, and collects operating status and fault feedback from power unit in real time.

High‑speed bus ensures low‑delay data exchange, guarantees synchronous execution of excitation regulation, thyristor triggering and protection logic.

On‑board hardware monitoring circuit can detect communication abnormality, signal loss and channel failure, and output corresponding alarm signals.

Conformal coated circuit board adapts to harsh industrial environment, improves moisture‑proof and anti‑dust performance.

Standard plug‑in structure supports convenient on‑site maintenance and replacement.

It is widely used in generator excitation system overhaul and renovation projects of thermal power plants and hydropower stations.

It is important spare hardware for excitation cabinet maintenance, signal loop debugging and defective UFC762AE101 board replacement.
