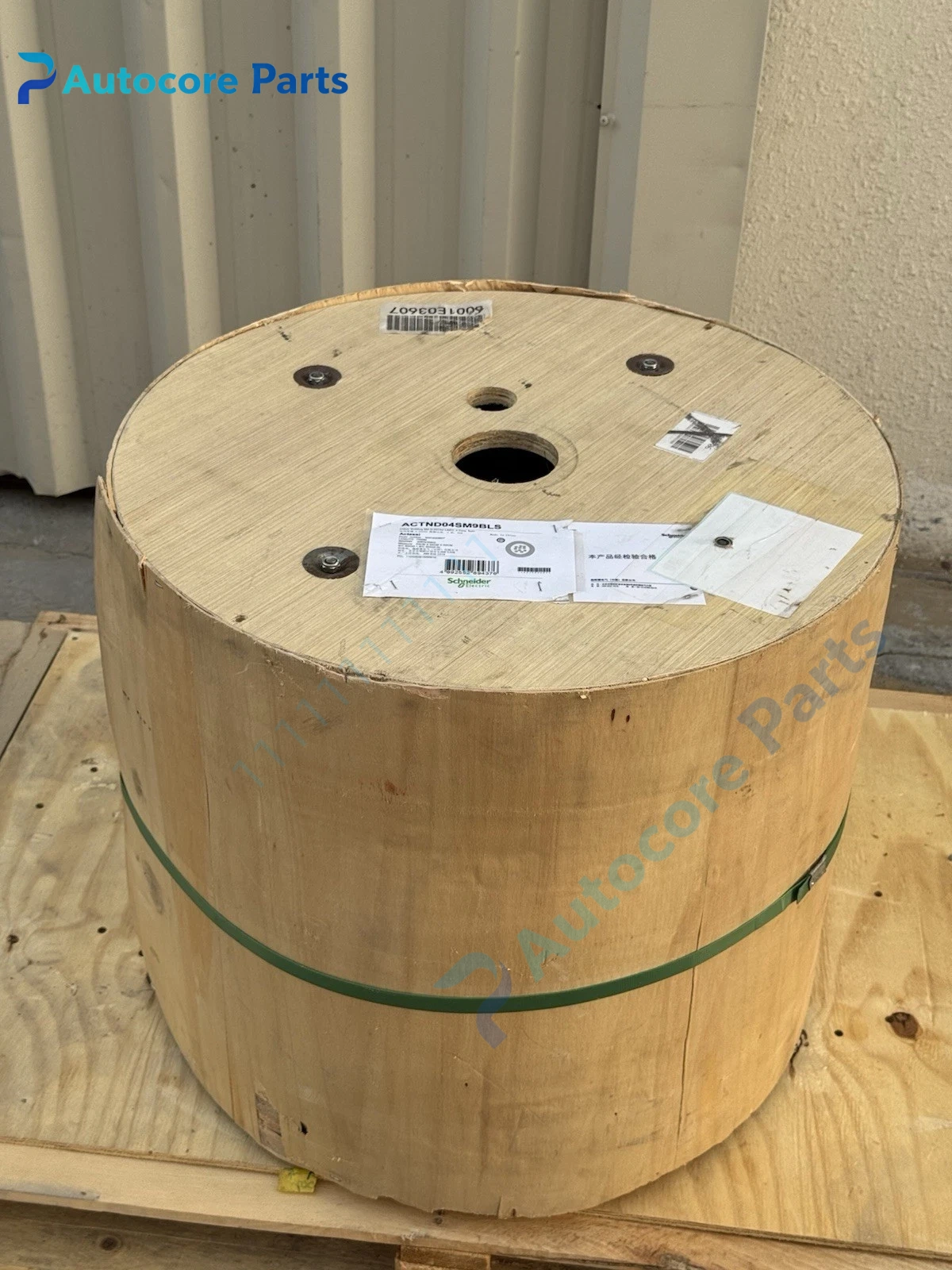

ACTND04SM9BLS Fiber Optic Cable Unit

Feature & Principle

It adopts G657A2 bend-insensitive single-mode fiber, tight buffer structure with LSZH flame-retardant sheath. Low smoke and non-toxic when burning, excellent bending resistance, suitable for indoor wiring, cabinet jumpers and horizontal communication links. It transmits optical signals for industrial control network and data communication system.

Specifications

Model: ACTND04SM9BLS Brand: Schneider Actassi Fiber type: OS2 G657A2, 9/125μm Core count: 4 cores Structure: Tight buffered 900μm Sheath: LSZH, red Outer diameter: 4.8mm Attenuation: 0.5dB/km@1310nm, 0.4dB/km@1550nm Certification: CE, IEC

Components & Diagnostics

Single-mode optical fiber, tight buffer layer, aramid yarn reinforcement, LSZH outer sheath. Common faults: fiber breakage, excessive attenuation, sheath damage, bending-induced signal loss.

Product Brief

ACTND04SM9BLS indoor optical cable, Schneider communication spare widely used for industrial control room, data center, building automation fiber wiring.
