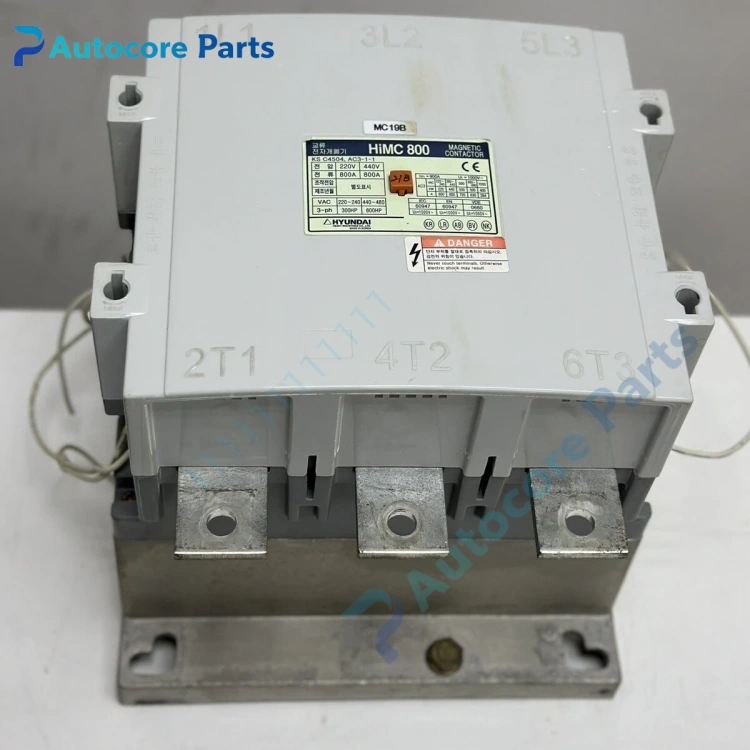

HiMC800 Contactor Unit

Feature & Principle

It works by electromagnetic attraction. After the coil is energized, the iron core pulls the main contact closed to switch on the main power circuit. When power off, the spring resets and disconnects the load. It can be matched with thermal overload relay for motor overload protection, receives control signals from PLC or relay to realize remote on-off control of high-power loads.

Specifications

Model: HiMC800 Brand: Hyundai Rated operational current: 800A Insulation voltage: 1000V Auxiliary contact: 2a2b Coil voltage: AC110V / 220V / 380V Mounting: Base fixed installation Certification: CE, KS

Components & Diagnostics

Electromagnetic coil, main contact assembly, arc extinguishing cover, iron core, return spring, auxiliary contact block. Common faults: coil burnout, contact ablation, welding sticking, poor attraction, arcing inside arc chamber.

Product Brief

HiMC800 magnetic contactor, Hyundai power spare widely used for ship, power plant and industrial MCC cabinet large motor and heavy load switching control.
