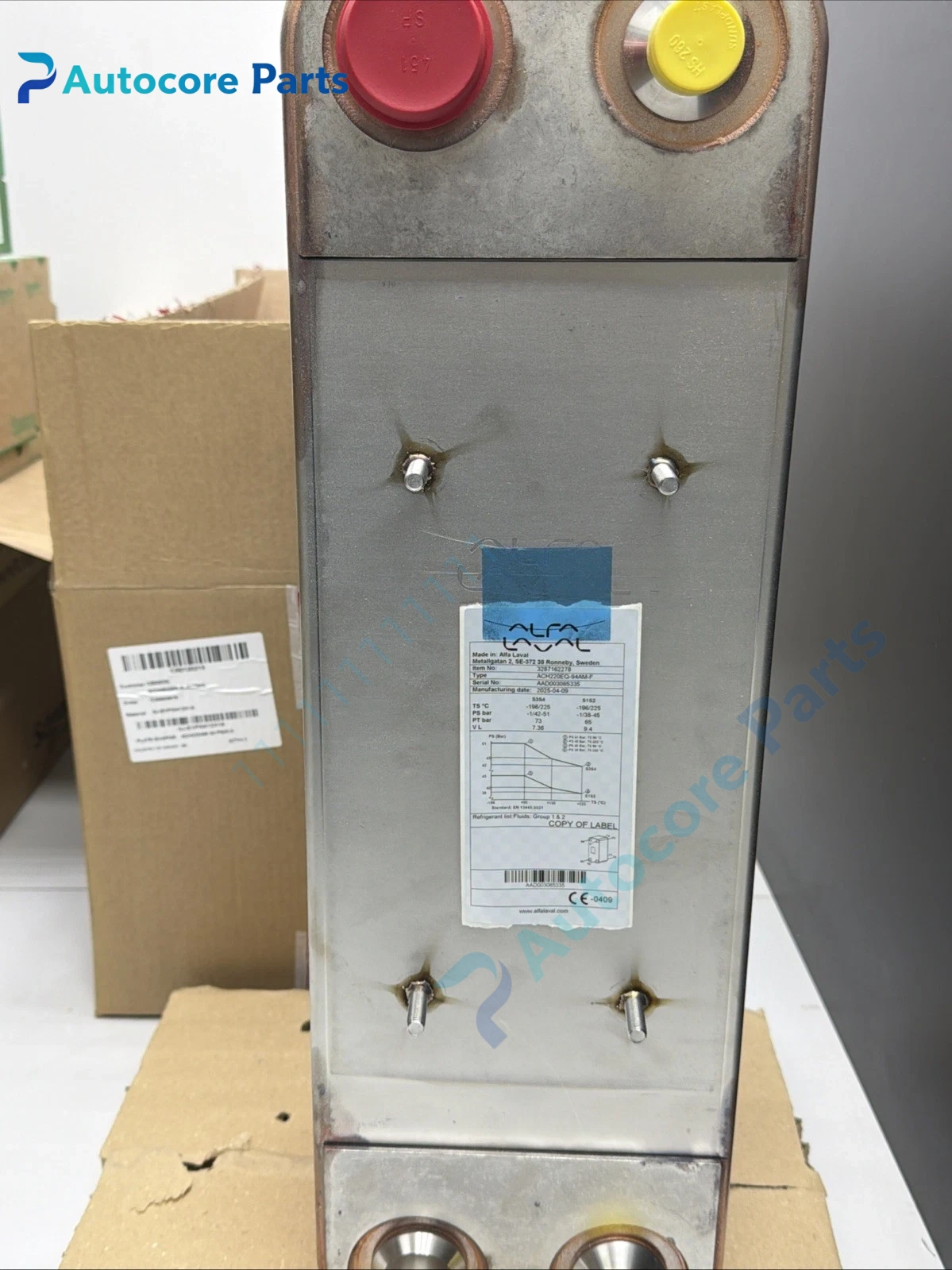

Alfa Laval ACH220EQ-94AM-F BPHE Unit

Module Feature

ACH220EQ-94AM-F belongs to Alfa Laval AC brazed plate heat exchanger family.

It adopts copper-brazed stainless steel plate construction without rubber gaskets. It is optimized for refrigerant and secondary fluid heat exchange, suitable for R410A, R134a and other common refrigerants. It features compact size, low internal volume and excellent pressure resistance. It is widely applied in water chillers, heat pumps and packaged air conditioning units.

Working principle

Refrigerant and secondary liquid flow through alternate plate channels.

Heat transfers across thin stainless steel plates between two media. Turbulent flow inside channels enhances heat exchange coefficient. The brazed sealing structure prevents cross leakage between refrigerant side and water side.

Onboard components

Stainless steel heat transfer plates, copper brazing alloy, steel end cover plates, threaded sweat connection ports, positioning support frame.

LED indicators

Not applicable.

Hardware self‑diagnosis

No built-in electronic diagnostic. Performance inspection is carried out by pressure test, leak detection and temperature difference monitoring.

Programming software

Not applicable.

Electrical & Process Parameters

Model:ACH220EQ-94AM-F Brand:Alfa Laval Device type:Brazed plate heat exchanger Function:Heat exchange between refrigerant and secondary fluid for refrigeration & HVAC circuits

Mechanical & Structure

Mounting:Foot or bracket fixed installation Protection class:IP20 Housing:Brazed stainless steel plate package with steel end plates

Environmental

Operating temperature:-40℃ ~ +160℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing

Certification:CE, AHRI

Status:Original Alfa Laval refrigeration spare

Installation

Fix the heat exchanger steadily, avoid stress on pipe nozzles.

Connect refrigerant and water pipelines, perform nitrogen pressure holding leak test before filling refrigerant.

InterfaceSweat connection ports for refrigerant and secondary fluid, mounting foot holes.

Diagnostic

Low heat exchange efficiency: Fouling on plate surface, insufficient flow rate or air trapped inside. External leakage: Crack on brazed joint, overpressure impact or nozzle mechanical stress. Internal cross leakage: Plate rupture caused by fatigue or freeze damage.

Product Brief

Alfa Laval ACH220EQ-94AM-F brazed plate heat exchanger, compact BPHE spare for chiller and heat pump maintenance replacement.
