ABB SPIET800 Ethernet CIU Transfer Module Unit

Module Feature

SPIET800 is an Ethernet CIU transfer gateway module for ABB Symphony Plus distributed control system, successor of IET800 / INIET800.

It provides protocol conversion between the proprietary INFI-NET control bus and standard Ethernet TCP/IP network. It supports connection with S+ Engineering tool, S+ Operations HMI and Harmony OPC server. License key is required separately for full function activation. Conformal coated PCB design is adopted for harsh industrial environments, widely used in thermal power, pulp & paper and chemical process control cabinets.

Working principle

The module receives cyclic process data, alarm messages and controller status from INFI-NET bus.

It repackages and forwards these data to upper-level Ethernet hosts, and transmits operator commands and configuration downloads back to INFI-NET controllers. Internal watchdog and bus monitoring ensure stable data exchange between two different network domains.

Onboard components

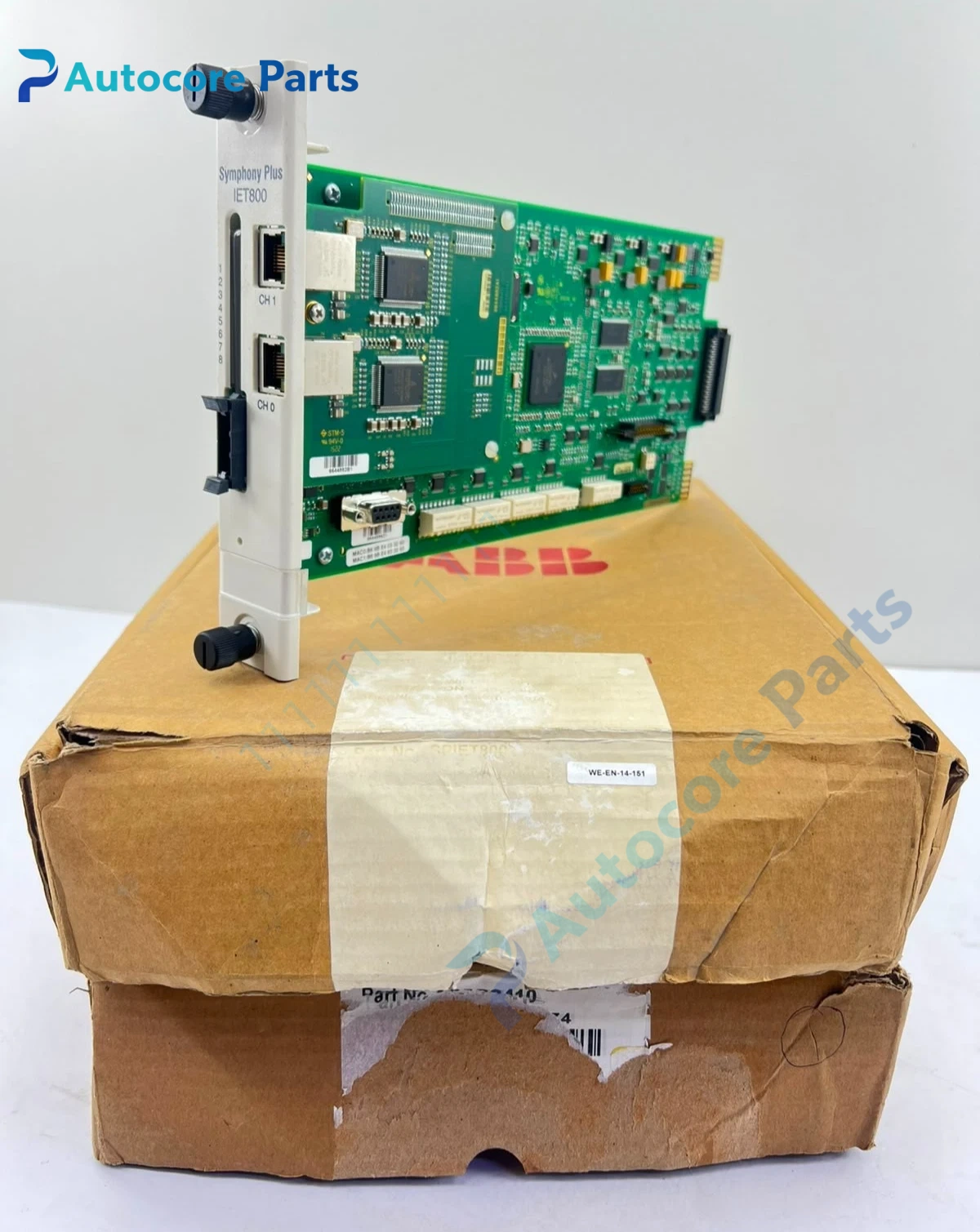

Dual Ethernet RJ45 transceivers, INFI-NET backplane interface circuit, main processing chip, status LED array, flash memory for firmware, metal reinforced front panel assembly.

LED indicators

Front LEDs indicate power supply, module run status, INFI-NET bus fault and Ethernet link alarm.

Hardware self‑diagnosis

Built-in supervision detects INFI-NET communication loss, Ethernet link down, firmware error and internal hardware failure. Fault status and event logs can be checked via Symphony Plus engineering software.

Programming softwareABB Symphony Plus Engineering Tool, used for network configuration, firmware upgrade, communication diagnosis and license activation.

Electrical & Process Parameters

Model:SPIET800 Brand:ABB Device type:DCS INFI-NET to Ethernet gateway module Supply voltage:24V DC Function:Protocol bridging between INFI-NET control network and Ethernet host system

Mechanical & Structure

Mounting:Plug-in installation on Symphony Plus rack backplane Protection class:IP20 Housing:Metal front panel with coated circuit board

Environmental

Operating temperature:0℃ ~ +60℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing

Certification:CE

Status:Original ABB Symphony Plus DCS spare

Installation

Insert the module into designated rack slot and lock the handle.

Connect INFI-NET backplane connector and dual Ethernet cables, verify link status and data transmission before commissioning.

InterfaceDual Ethernet RJ45 ports, INFI-NET backplane bus connector, 24V DC power terminal.

Diagnostic

No INFI-NET communication: Bent backplane pin, bus termination missing or bus cable damage. Ethernet link unstable: Network cable fault, IP address conflict or switch port abnormality. Function limited: Missing or invalid software license key.

Product Brief

ABB SPIET800 gateway module, INFI-NET to Ethernet communication transfer unit for Symphony Plus DCS cabinet maintenance replacement.
