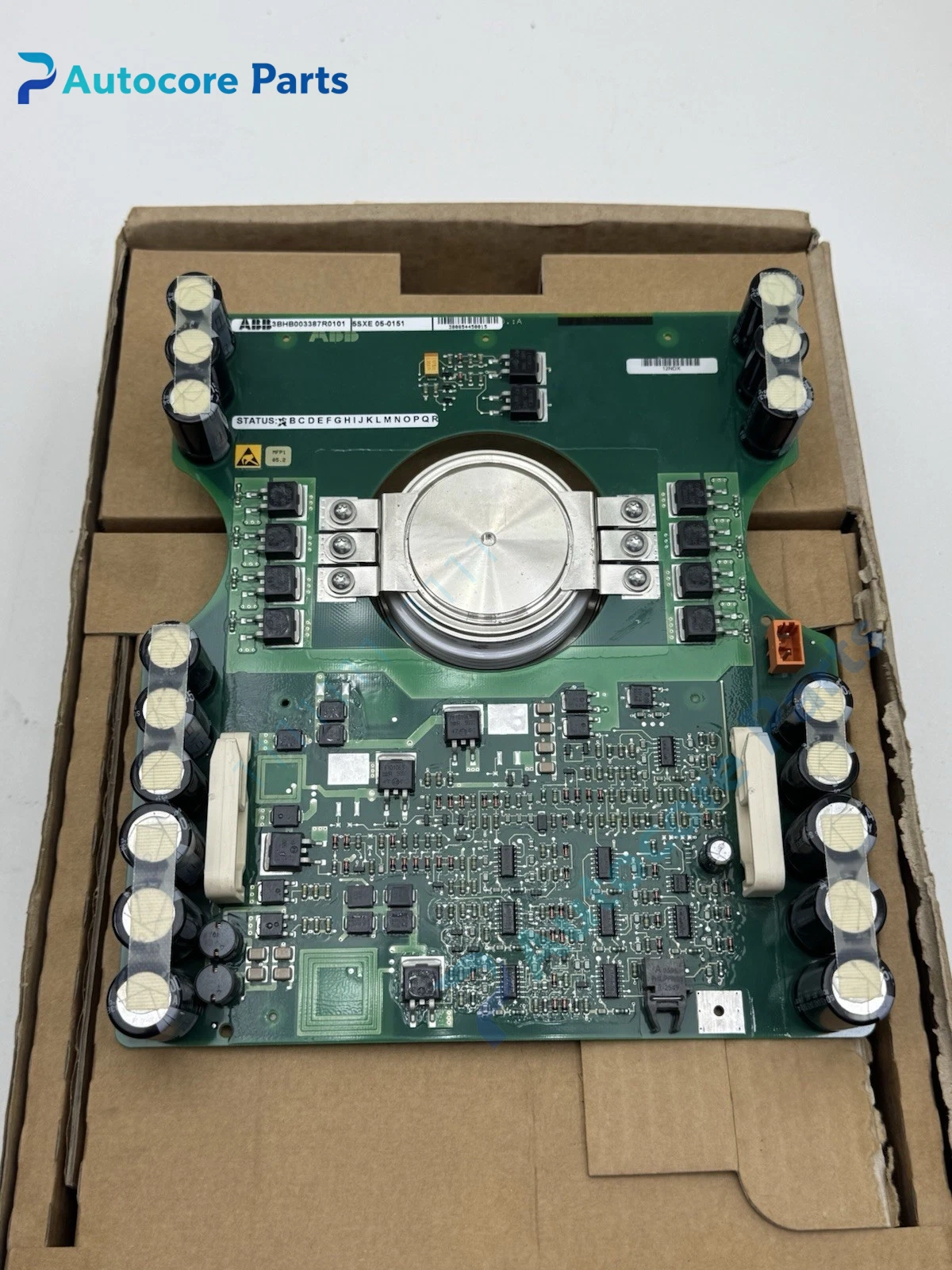

ABB 3BHL000385P0101 IGCT Power Module Unit

Module Feature

3BHL000385P0101 belongs to ABB HiPak IGCT series, serving as the core switching component of ACS6000 medium voltage variable frequency drives.

It adopts press-pack packaging, integrating IGCT chip, anti-parallel freewheeling diode and snubber matching structure. It features high blocking voltage, low on-state loss and high surge current tolerance. It must work with dedicated gate drive unit, widely used for medium voltage motor, compressor and pump speed regulation.

Working principle

The gate drive signal controls turn-on and forced commutation turn-off of the IGCT chip.

Together with rectifier and inverter circuit, it completes AC-DC-AC power conversion. The snubber circuit suppresses transient voltage spike during switching and protects the semiconductor chip from breakdown.

Onboard components

IGCT thyristor wafer, freewheeling diode, copper substrate, snubber assembly, high-current bus terminals, gate signal connector, insulated press-pack housing.

LED indicators

No built-in LED. Operating status and fault alarms are displayed on the drive control board and upper HMI system.

Hardware self‑diagnosis

Diagnostic functions are implemented by the matched drive control unit. It monitors overcurrent, overvoltage, overtemperature, gate drive fault and internal open/short circuit. Fault logs can be read via ABB DriveWindow commissioning software.

Programming software

ABB DriveWindow, used for converter status monitoring, fault history export and parameter maintenance.

Electrical & Process Parameters

Model:3BHL000385P0101 Brand:ABB Device type:HiPak integrated gate-commutated thyristor module Function:Power switching for medium voltage inverter inverter stage

Mechanical & Structure

Mounting:Clamped installation on liquid cooling heat sink Protection class:IP20 Housing:Insulated press-pack power module

Environmental

Operating temperature:-25℃ ~ +85℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing

Certification:CE, IEC60747

Status:Original ABB medium voltage drive spare

Installation

Mount the module on the designated cooling radiator, apply thermal interface material evenly.

Tighten high-power terminals and gate signal connector, perform insulation withstand test before energizing.

InterfaceMain power terminals, gate drive signal port, cooling contact surface.

Diagnostic

IGCT fault alarm: Loose gate wiring, damaged chip or poor thermal contact. Overvoltage trip: Aging snubber components or excessive wiring inductance. Overtemperature alarm: Blocked cooling circuit or insufficient coolant flow.

Product Brief

ABB 3BHL000385P0101 IGCT module, core power semiconductor spare for ACS6000 medium voltage variable frequency drive cabinet replacement.
