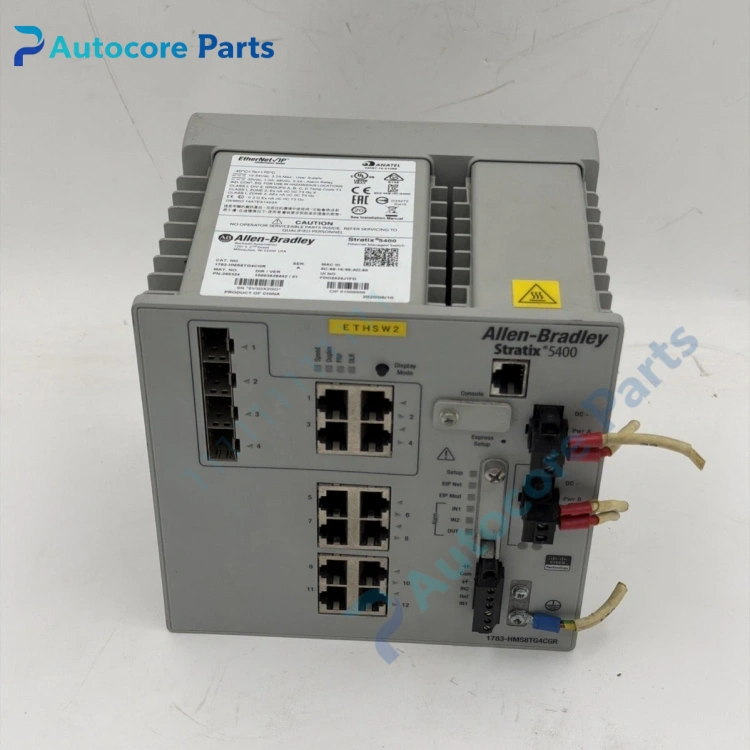

Allen‑Bradley 1783-HMS8TG4CGR Stratix 5400 Industrial Switch Unit

Feature & Principle

This Layer3 industrial switch adopts embedded Cisco operating system. It supports static routing, VLAN, RSTP, QoS, ACL, PTP and CIP sync, connects PLC, HMI and drives. It provides stable gigabit communication for EtherNet/IP control network, with wide temperature and anti-surge design to adapt to harsh workshop cabinet environment.

Specifications

Model: 1783-HMS8TG4CGR Brand: Allen‑Bradley (Rockwell Automation) Series: Stratix 5400 Ports: 8×10/100/1000M RJ45, 4×Gigabit combo (SFP or RJ45) Firmware: Layer 3 Mounting: DIN rail Operating temp: -40℃ ~ +70℃ Protection: IP30 Certification: CE, UL

Components & Diagnostics

Main switching board, SFP slots, RJ45 port bank, dual DC power input, status LED and alarm relay. Common faults: port link loss, SFP module failure, configuration loss, power failure and network storm.

Product Brief

1783-HMS8TG4CGR Stratix 5400 switch, Rockwell automation spare widely used for EtherNet/IP production line control cabinet networking.
