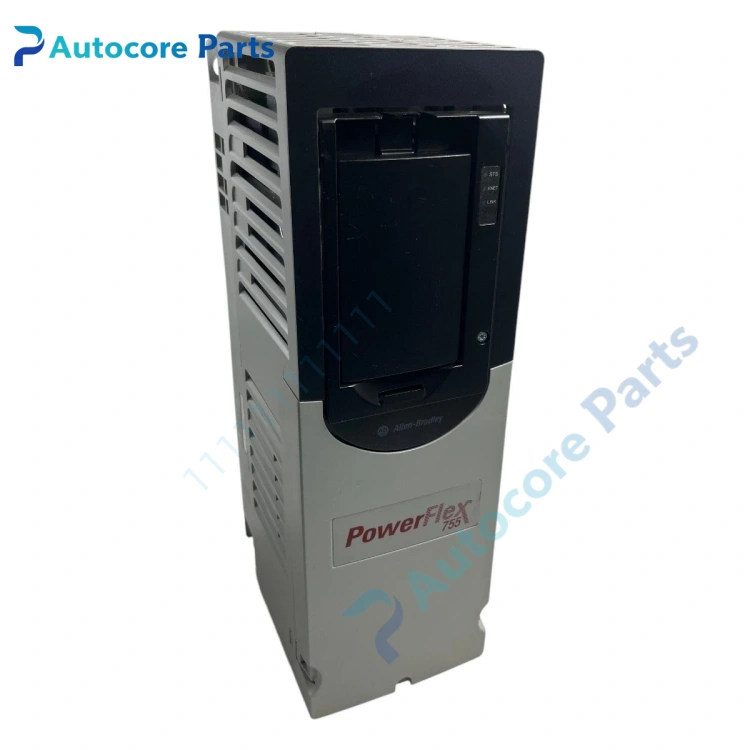

Allen‑Bradley 20G11N VFD

Feature & Principle

It is Rockwell PowerFlex 755 high‑performance AC drive. It converts fixed AC input to adjustable frequency and voltage output to realize closed‑loop speed and torque control. Built‑in EtherNet/IP for high‑speed network connection with PLC. It supports dual ND/HD rating, dynamic braking transistor, rich safety and protection functions. Modular design allows option card expansion for encoder feedback and safety control. Widely used for heavy‑duty industrial motor control.

Specifications

Model: 20G11N (prefix for full part number) Brand: Allen‑Bradley (Rockwell) Series: PowerFlex 755 Cooling: Forced air cooling Communication: Embedded EtherNet/IP Control mode: V/F, sensorless vector, closed loop vector Enclosure: IP20 / IP00 open type Protection: OVP, OCP, OTP, phase loss, ground fault Application: Conveyor, extruder, pump, fan, packaging and process machinery Certification: CE, UL

Components & Diagnostics

IGBT power stack, main control board, communication module, cooling fan, DC bus capacitor, terminal block and status LED. Common faults: overcurrent alarm, overheat trip, network disconnection, capacitor aging, fan failure.

Product Brief

20G11N PowerFlex 755 AC drive, Rockwell high performance motor control spare widely used for heavy industrial automation overhaul and replacement.
