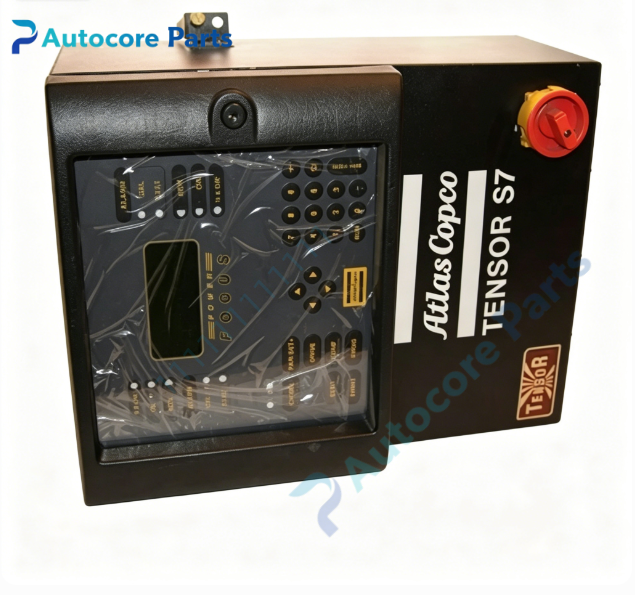

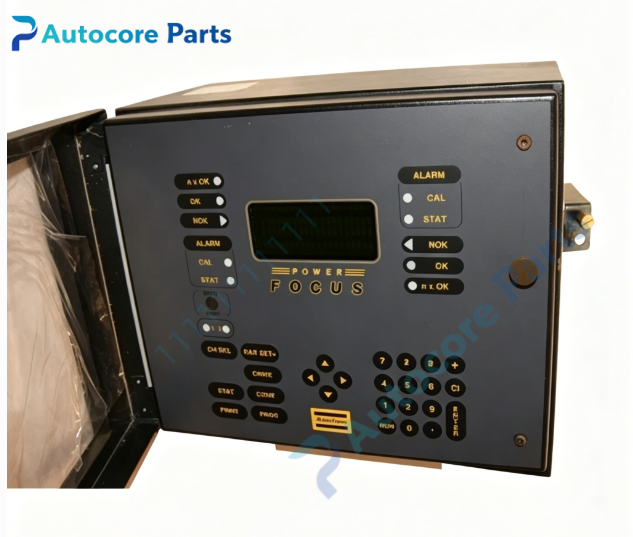

Atlas Copco PF2101-S7-230R Tightening Controller

Technical SpecificationsModel:PF2101-S7-230R Brand:Atlas Copco Product Type:Power Focus 2101 Tightening Controller Power Supply:230V AC,50/60Hz,200W Mounting:Cabinet rack mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:8.9kg Dimension:405mm305mm160mm

System compatibilityPF2101-S7-230R belongs to Atlas Copco Power Focus 2101 series single-tool tightening controller. Compatible with Atlas Copco Tensor S7 series electric nutrunner tools. Built-in basic operation panel, optional communication interface can be added. It can connect with PLC and MES system for fastening result upload, production traceability and remote parameter control.

FunctionPF2101-S7-230R is compact torque-angle control unit for automated bolt assembly. It supports multi-step tightening sequences, real-time torque-angle curve monitoring and OK/NOK fastening judgement. It stores fastening history records and supports parameter backup, built-in emergency stop safety relay. Suitable for simple fixed bolt assembly stations in automotive component and general machinery production.

InstallationCut off power before installation. Mount controller inside electrical cabinet. Connect AC power, tool motor cable and signal wiring. Configure tightening programs via front panel or PC software. Complete tool calibration and test tightening before online operation.

InterfaceSingle tool drive port, 24V digital I/O terminals, optional communication expansion port, basic front operation panel, status LED indicators, E-stop safety relay terminal.

FeatureAtlas Copco Power Focus2101 compact torque controller, S7 tool matching version, 230V power input, real-time torque-angle monitoring, built-in E-stop safety relay, fastening data storage, IP20 cabinet protection. Discontinued legacy spare part, used for single station bolt tightening system maintenance and replacement.

DiagnosticController no power: check AC input, fuse and wiring. Tool no rotation: inspect tool cable, motor winding and tool enable signal. Tightening result deviation: verify tool calibration, tightening program and joint mechanical condition. Communication abnormal: check communication module, bus cable, node address and PLC configuration. Front panel display fault: check internal display connector and controller firmware.

Product BriefAtlas Copco PF2101-S7-230R is Power Focus2101 S7 230V torque tightening controller, widely used in automotive and machinery assembly production lines for single station bolt fastening control.
