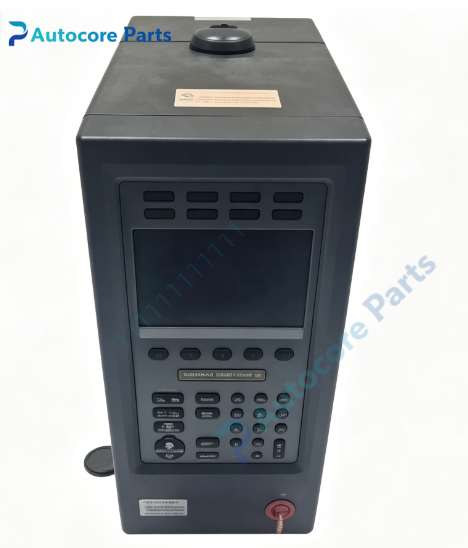

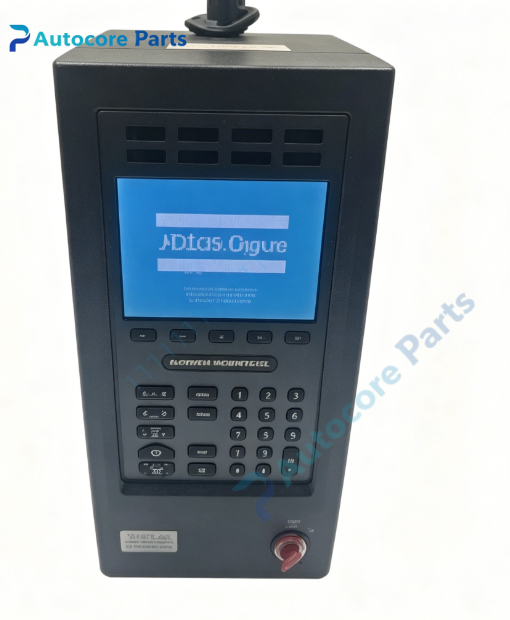

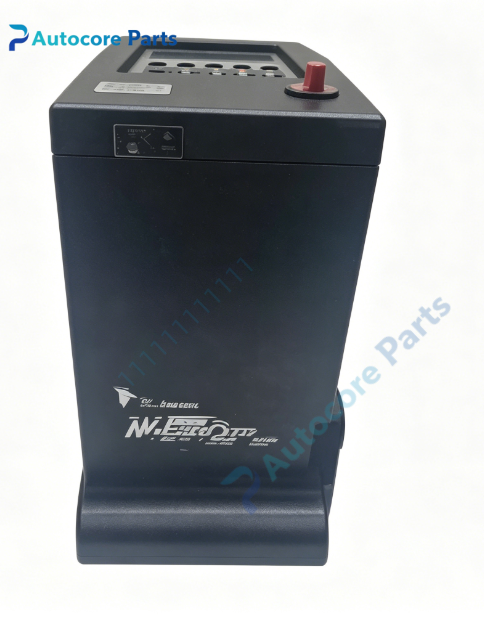

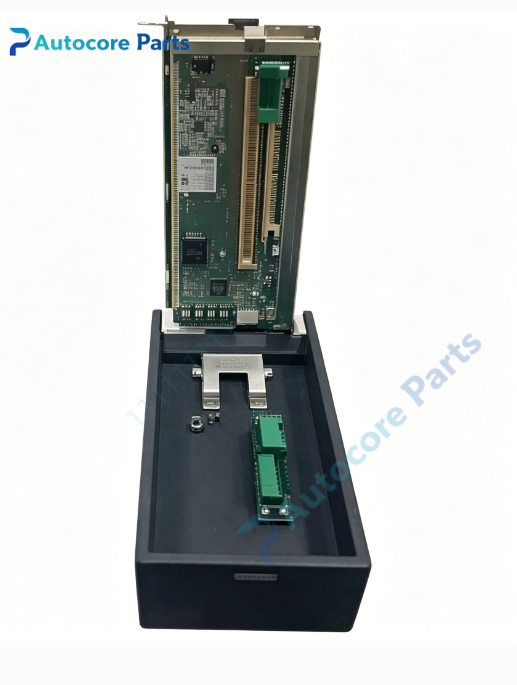

Atlas Copco PF4002-G-PB-HW Tightening Controller

Technical SpecificationsModel:PF4002-G-PB-HW Brand:Atlas Copco Product Type:Power Focus 4002 Graph Tightening Controller with Profibus DP Power Supply:100-120/200-240V AC,50/60Hz,150W Mounting:Cabinet rack mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:12.7kg Dimension:415mm319mm173mm

System compatibilityPF4002-G-PB-HW belongs to Atlas Copco Power Focus 4002 compact single-tool controller series. Compatible with Atlas Copco Tensor series electric nutrunner tools. Equipped with Graph local HMI and Profibus DP industrial fieldbus, supports communication with PLC and MES system for fastening result upload, production traceability and remote parameter control.

FunctionPF4002-G-PB-HW is compact high precision torque-angle control unit for automated bolt assembly. It executes multi-step tightening programs, monitors torque and angle curve in real time and judges OK/NOK fastening results. The integrated Graph HMI supports local program editing and parameter adjustment without external PC. The onboard Profibus DP interface enables high-speed bi-directional data exchange with upper automation systems. It supports fastening data storage, error-proofing logic and integrated emergency stop safety relay, widely used for small station assembly lines.

InstallationCut off power before installation. Mount controller inside electrical cabinet. Connect AC power, tool motor cable and Profibus DP network cable. Configure tightening parameters and Profibus node address via local Graph panel or ToolsTalk software. Complete tool calibration and test tightening before online operation.

InterfaceSingle tool drive port, 24V digital I/O terminals, Profibus DP port, built-in Graph HMI operation panel, status LED indicators, E-stop safety relay terminal.

FeatureAtlas Copco Power Focus 4002 compact torque controller, local Graph HMI for on-site programming, Profibus DP communication interface, real-time torque-angle monitoring, built-in E-stop safety relay, fastening data traceability, error proofing function, IP20 cabinet protection. Obsolete legacy spare part, used for assembly line single bolt tightening station maintenance and replacement.

DiagnosticController no power: check AC input, fuse and wiring. Tool no rotation: inspect tool cable, motor winding and tool enable signal. Tightening result deviation: verify tool calibration, tightening program and joint mechanical condition. Profibus DP communication loss: check bus cable, node address, PLC configuration and bus termination resistor. HMI display fault: check internal display connector and controller firmware.

Product BriefAtlas Copco PF4002-G-PB-HW is Power Focus 4002 Graph Profibus DP compact torque tightening controller, widely used in automotive and machinery assembly production lines for single station bolt fastening, on-site program setup and factory bus communication.
