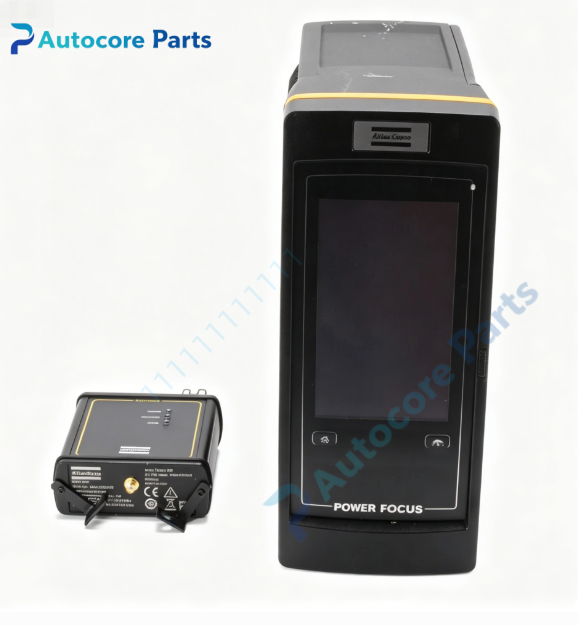

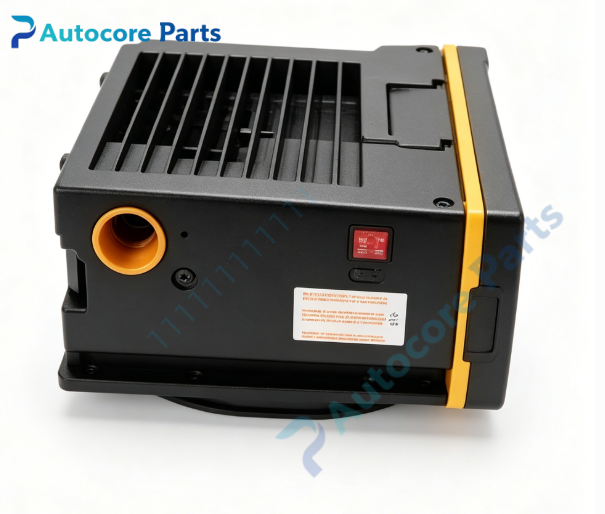

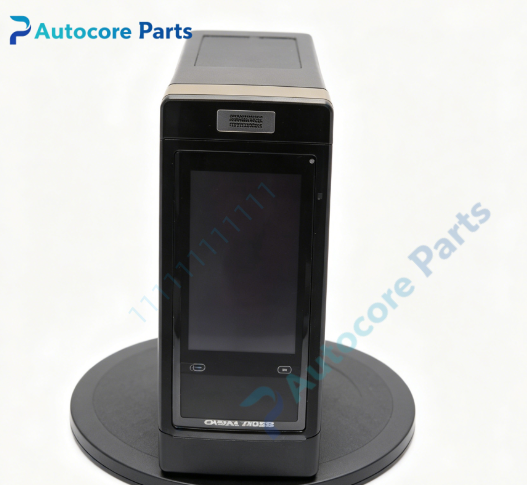

Atlas Copco PF6000LV Tightening Controller

Technical SpecificationsModel:PF6000LV Brand:Atlas Copco Product Type:Power Focus 6000 LV Tightening Controller Power Supply:24V DC Mounting:Cabinet rack mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:11.94kg Dimension:395mm223mm377mm

System compatibilityPF6000LV belongs to Atlas Copco Power Focus 6000 series low voltage tightening controller. It is compatible with Atlas Copco electric low voltage nutrunner tools. It supports multiple virtual stations, can communicate with PLC, DCS and upper MES system for assembly data upload and production traceability.

FunctionThis PF6000LV tightening controller is the core control unit for industrial assembly torque fastening. It controls electric nutrunner to execute precise torque and angle tightening strategy, monitors tightening curve in real time, judges OK/NOK fastening results. It stores assembly records, transmits torque data, batch information and fault alarms to upper system. It supports multi-tool management, parameter group switching and remote programming for automobile and heavy industry assembly lines.

InstallationCut off power before installation. Mount the controller inside control cabinet on DIN/rack frame. Connect 24V DC power cable, tool motor cable and signal communication cable. Configure tightening programs, torque limits and communication parameters via software. Perform tool calibration and tightening test before online operation.

InterfaceTool drive port, digital I/O terminal, Ethernet communication port, fieldbus interface, status LED indicators, local operation keys.

FeatureAtlas Copco low voltage torque controller, high precision torque-angle monitoring, multi virtual station, assembly data traceability, built-in fault diagnosis, supports Profinet / Ethernet/IP fieldbus. Obsolete legacy spare part, used for production assembly line tightening system maintenance and replacement.

DiagnosticController no power: check 24V DC power supply and wiring polarity. Tool no rotation: inspect tool cable, motor winding and tool enable signal. Tightening deviation over limit: check tool calibration, torque program parameter and mechanical joint condition.

Product BriefAtlas Copco PF6000LV is Power Focus 6000 LV low voltage torque tightening controller, widely used in automotive, machinery assembly production lines for precision bolt fastening control.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
