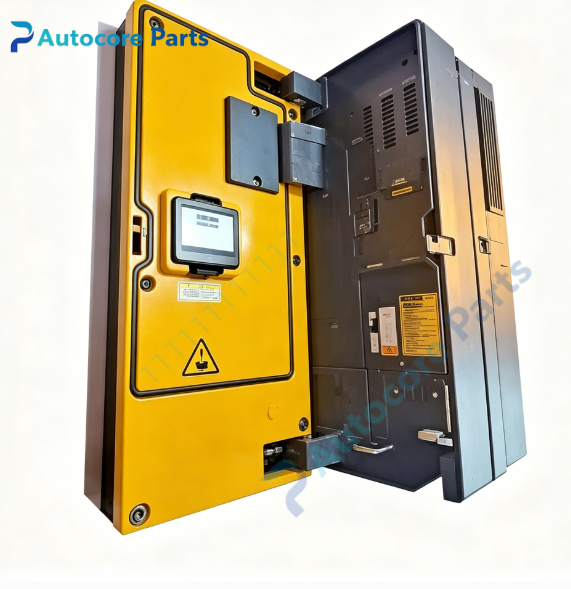

Atlas Copco PF6000 Tightening Controller

Technical SpecificationsModel:PF6000 Brand:Atlas Copco Product Type:Power Focus 6000 Tightening Controller Power Supply:100-240V AC,50/60Hz,1500W Mounting:Cabinet rack mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:10.8kg Dimension:292mm325mm140mm

System compatibilityPF6000 belongs to Atlas Copco Power Focus 6000 series main tightening controller. It supports up to 6 electric nutrunner tools from different tool families, compatible with Tensor STR, Tensor Revo and other Atlas Copco handheld or fixtured tightening tools. It can connect with PLC, DCS, MES via industrial fieldbus for fastening data upload and production traceability.

FunctionPF6000 is the core torque-angle control unit for automated bolt assembly lines. It executes multi-step tightening strategies including TurboTight, monitors torque and angle curve in real time, judges OK/NOK fastening results. It adopts virtual station technology, each connected tool operates independently with separate tightening programs. It stores complete fastening records, supports parameter backup via IAM memory module, and realizes remote configuration through Web HMI interface. Widely used in automotive and heavy machinery assembly for high precision bolt fastening.

InstallationCut off power before installation. Mount the controller inside electrical cabinet by rack mounting. Connect AC power cable, tool motor cable and communication wiring. Configure tightening programs, torque limits and fieldbus parameters by ToolsTalk2 software. Complete tool calibration and test fastening before putting into production.

InterfaceTool drive ports, 24V digital I/O terminals, Ethernet port, Profinet / Ethernet/IP fieldbus interface, 7-inch touch screen, status LED indicators.

FeatureAtlas Copco main Power Focus 6000 tightening controller, multi-tool virtual station, high precision torque-angle monitoring, Open Protocol, Web HMI remote access, built-in IAM data storage, modular scalable function license, IP20 cabinet protection. Obsolete legacy spare part, used for assembly line fastening system maintenance and replacement.

DiagnosticController no power: check AC power input, fuse and wiring. Tool no rotation: inspect tool cable, motor winding and tool enable signal. Tightening result deviation: verify tool calibration, tightening program and mechanical joint condition. Communication failure: check network cable, IP address and fieldbus configuration.

Product BriefAtlas Copco PF6000 Power Focus 6000 torque tightening controller, widely used in automotive and machinery assembly production lines for multi-tool precision bolt fastening control.

Disclaimer:All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
