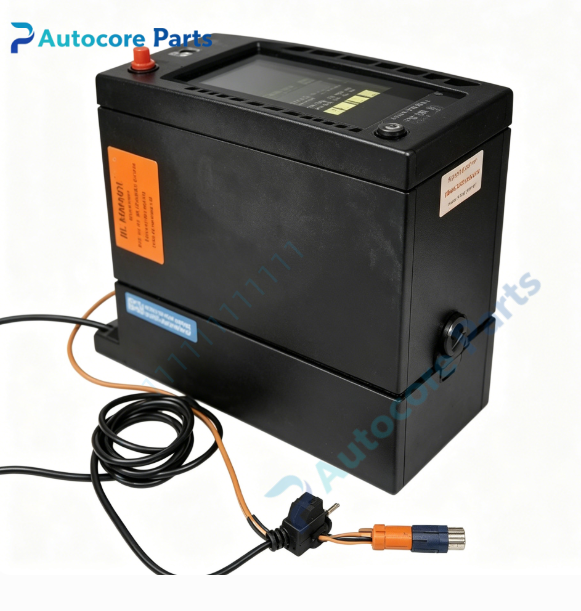

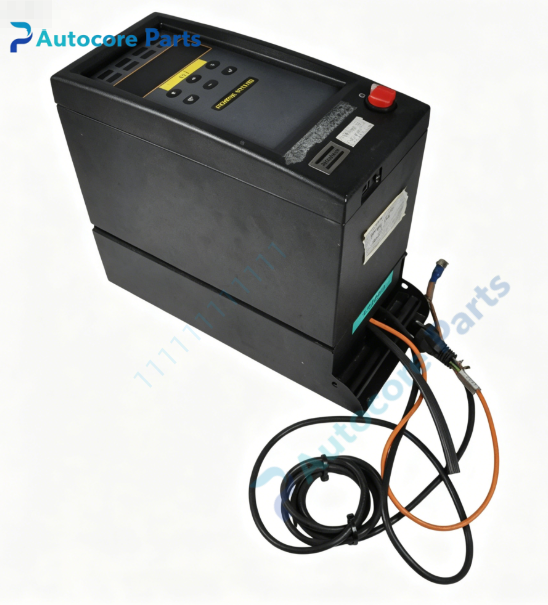

Atlas Copco PF4000-C-PN-HW Tightening Controller

Technical SpecificationsModel:PF4000-C-PN-HW Brand:Atlas Copco Product Type:Power Focus 4000 Tightening Controller with Profinet Power Supply:100-240V AC,50/60Hz,320W Mounting:Cabinet rack mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:11.88kg Dimension:415mm319mm173mm

System compatibilityPF4000-C-PN-HW belongs to Atlas Copco Power Focus 4000 series tightening controller. Compatible with Atlas Copco Tensor series electric nutrunner tools. Equipped with Profinet industrial fieldbus, can communicate with PLC and MES system for fastening result upload, production data traceability and remote parameter control.

FunctionPF4000-C-PN-HW is a high precision torque-angle control unit for automated bolt assembly. It executes multi-step tightening programs, monitors torque and angle curve in real time, judges OK/NOK fastening results. It supports fastening data storage, error-proofing logic and integrated emergency stop relay. The built-in Profinet interface realizes high-speed data exchange with upper automation system, widely used for automotive and heavy machinery assembly lines.

InstallationCut off power before installation. Mount controller inside electrical cabinet. Connect AC power, tool motor cable and Profinet communication cable. Configure tightening parameters and fieldbus address via ToolsTalk software. Perform tool calibration and test tightening before online operation.

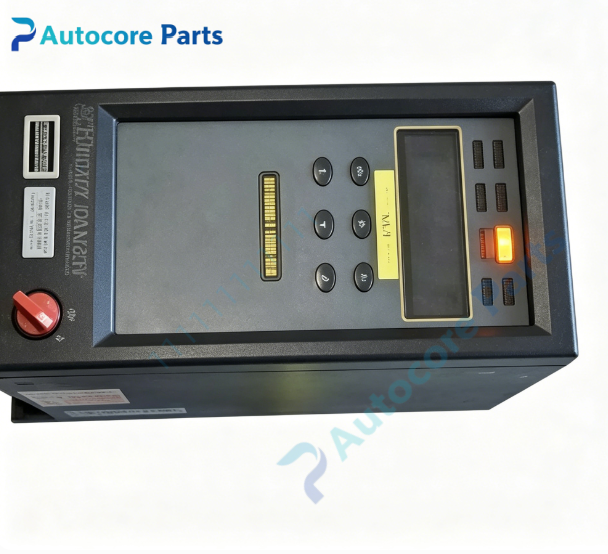

InterfaceTool drive port, 24V digital I/O terminals, Profinet port, built-in display and operation keys, status LED indicators, E-stop safety relay terminal.

FeatureAtlas Copco PF4000 series torque controller, Profinet communication interface, real-time torque-angle monitoring, built-in safety E-stop relay, fastening data traceability, error proofing function, IP20 cabinet protection. Obsolete legacy spare part, used for assembly line bolt tightening system maintenance and replacement.

DiagnosticController no power: check AC input, fuse and wiring. Tool no rotation: inspect tool cable, motor winding and tool enable signal. Tightening result deviation: verify tool calibration, tightening program and joint mechanical condition. Profinet communication loss: check network cable, IP address, PLC configuration and bus topology.

Product BriefAtlas Copco PF4000-C-PN-HW is Power Focus 4000 Profinet torque tightening controller, widely used in automotive and machinery assembly production lines for bolt fastening control and quality data collection.

Disclaimer:All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
