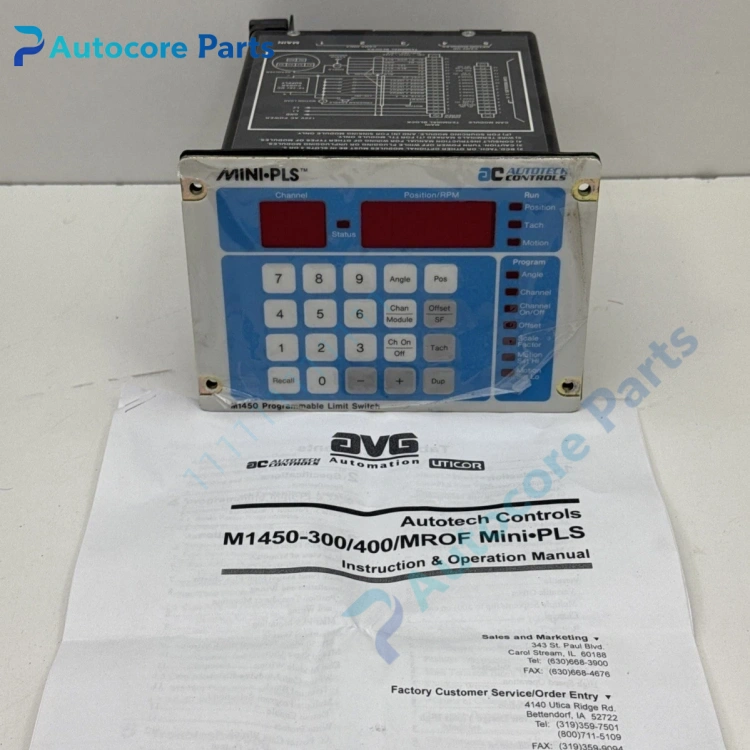

Autotech SAC-M1450-400 MINI PLS Programmable Limit Switch Unit

Feature & Principle

This programmable limit switch tracks shaft rotary position via resolver signal. Users configure multiple angle trigger points, and the unit outputs switch signals when shaft reaches preset angles. The speed compensation function corrects trigger timing under variable speed, ensures accurate synchronous action for cut-off, marking and interlock control.

Specifications

Model: SAC-M1450-400 Brand: Autotech Controls Series: MINI•PLS Type: Single-turn rotary PLS Resolution: 4-digit Function: ModZ, speed compensation Mounting: Panel front mount Power supply: 24VDC Status: Discontinued Certification: CE, UL

Components & Diagnostics

Resolver interface board, logic processing board, output relay module, front setting panel, status LED indicator. Common faults: position offset, output channel failure, speed compensation abnormal, resolver signal loss.

Product Brief

SAC-M1450-400 programmable limit switch, Autotech cam controller spare widely used for rotary press, slitter, packaging and converting production line.
