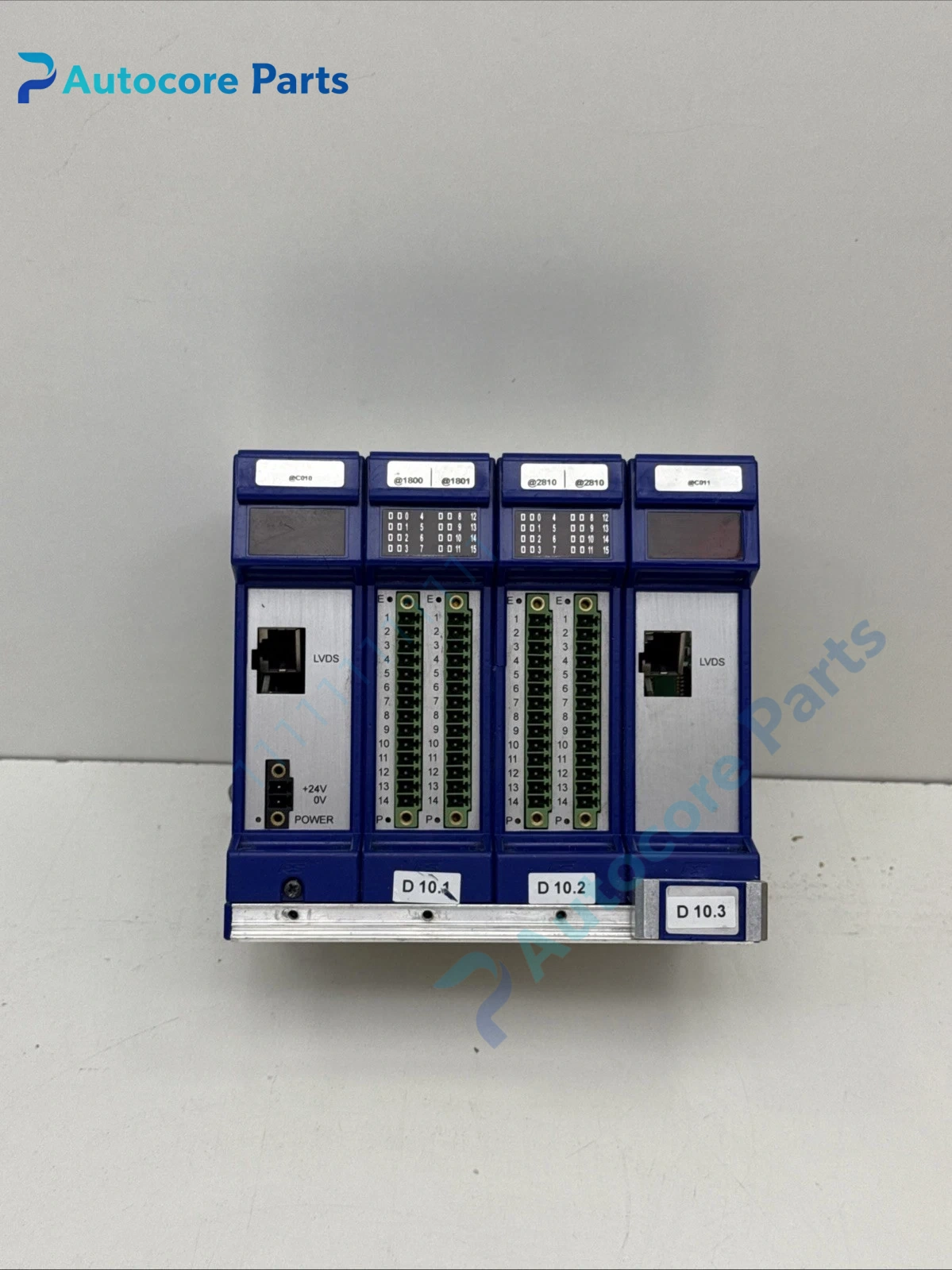

TR-Systemtechnik IO-CUST-00043 Custom I/O Module Unit

Feature & Principle

This I/O module collects digital and analog feedback signals from printing units, registers, paper transfer mechanisms. It exchanges control signals with the main motion controller, realizes signal isolation, conversion and transmission to guarantee accurate register control and equipment interlock protection during high-speed printing.

Specifications

Model: IO-CUST-00043, P2534170 Brand: TR-Systemtechnik Application: KBA offset printing press Power supply: 24VDC Type: Custom digital + analog IO module Mounting: Cabinet panel installation Certification: CE

Components & Diagnostics

Terminal block, signal isolation circuit, logic control board, status indicator LEDs. Common faults: channel no signal input/output, communication interruption, terminal burnout, signal drift.

Product Brief

IO-CUST-00043 custom IO module, TR-Systemtechnik spare widely used for KBA offset press electrical overhaul and replacement.
