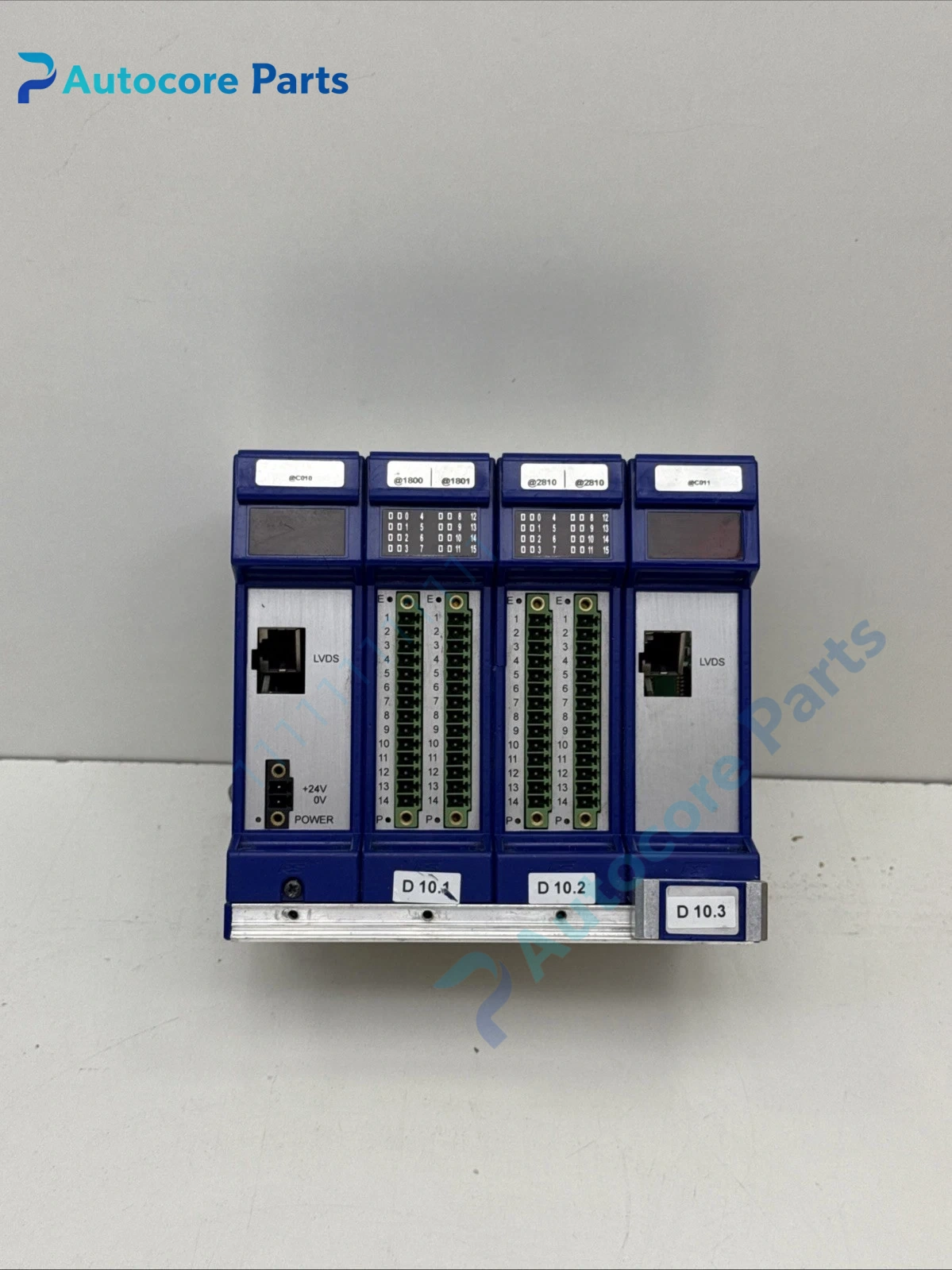

KBA IO-CUST-00043 Servo Drive Module Unit

Feature & Principle

This servo drive receives motion commands from the press control system and outputs adjustable frequency and voltage power to the servo motor. It realizes precise speed and position closed-loop control for the printing cylinder, register adjustment and paper transfer axes, ensuring stable register accuracy during high-speed printing.

Specifications

Model: IO-CUST-00043 Brand: KBA Type: IO-CUST servo drive module Application: KBA offset printing press Weight: 3 kg Mounting: Cabinet DIN rail / panel installation Certification: CE

Components & Diagnostics

Power rectifier unit, IGBT power board, control CPU board, signal terminal block, cooling structure. Common faults: overcurrent alarm, bus overvoltage, communication loss, drive no output, internal power component burnout.

Product Brief

IO-CUST-00043 servo drive module, original KBA printing press spare widely used for offset press printing unit overhaul and axis control replacement.
