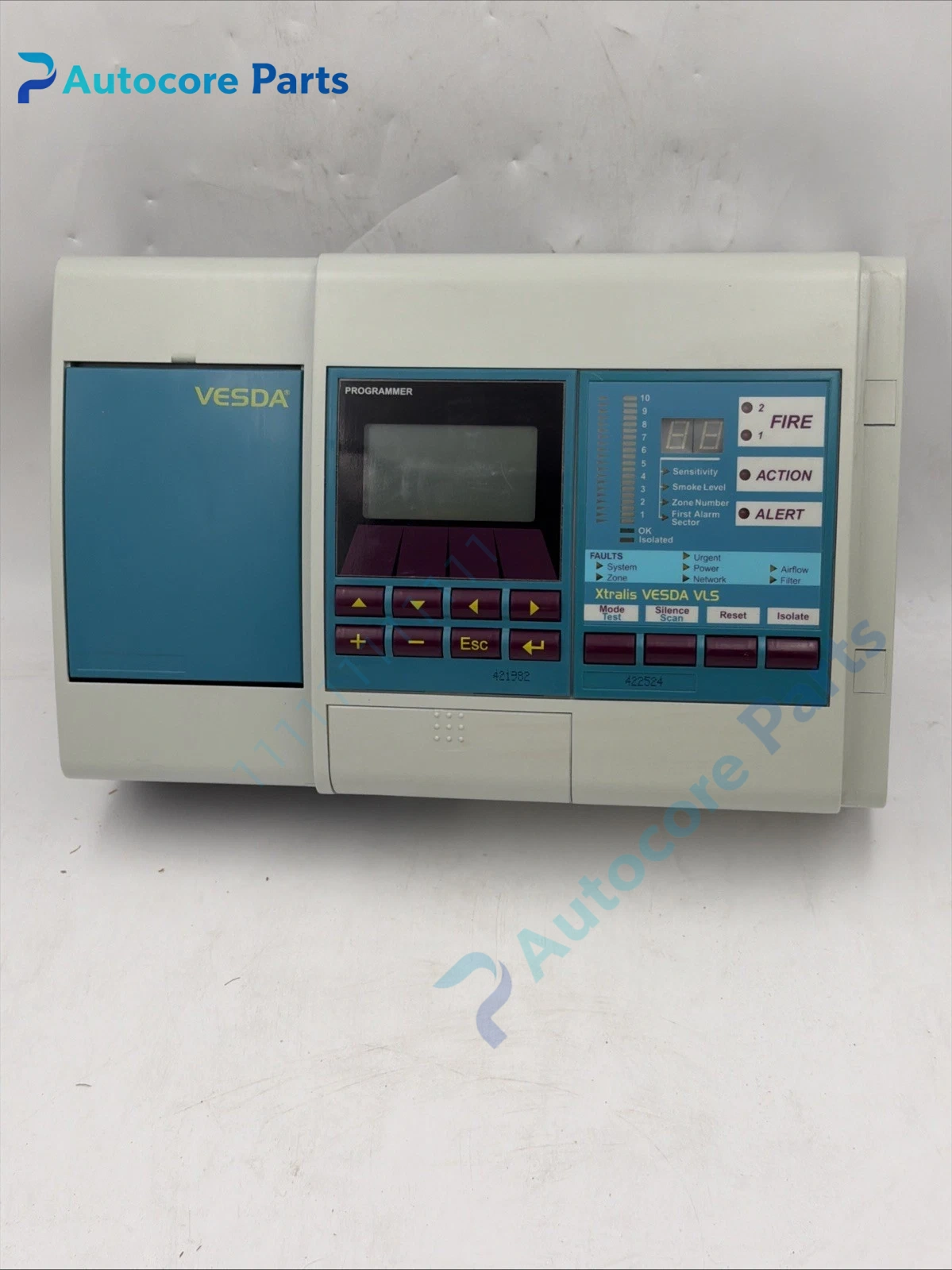

Xtralis VESDA VLS-314 LaserSCANNER Air Sampling Smoke Detector Unit

Feature & Principle

The built-in fan draws air samples from four sampling pipe sectors. When smoke is detected, the unit automatically scans each channel to locate the smoke sector. It uses laser light scattering principle to detect ultra-low smoke concentration at the early fire stage, sends alarm and fault signals via relay contacts to fire alarm host.

Specifications

Model: VLS-314 Brand: Xtralis (VESDA) Series: LaserSCANNER Power supply: 18 ~ 30 VDC Sensitivity range: 0.005% ~ 20% obs/m Relay: 12 programmable relays Sampling: 4 independent sectors Dimension: 350 mm × 225 mm × 125 mm Weight: 4.0 kg Protection: IP30 Certification: UL, FM, CE, LPCB Status: Discontinued

Components & Diagnostics

Laser detection chamber, aspirator fan, solenoid valve manifold, LCD display module, relay board, filter cartridge. Common faults: fan failure, filter clogging, sampling pipe leakage, laser contamination, relay output abnormal.

Product Brief

VLS-314 aspirating smoke detector, VESDA fire safety spare widely used for substation, server room, battery room and high-value equipment early fire monitoring.
