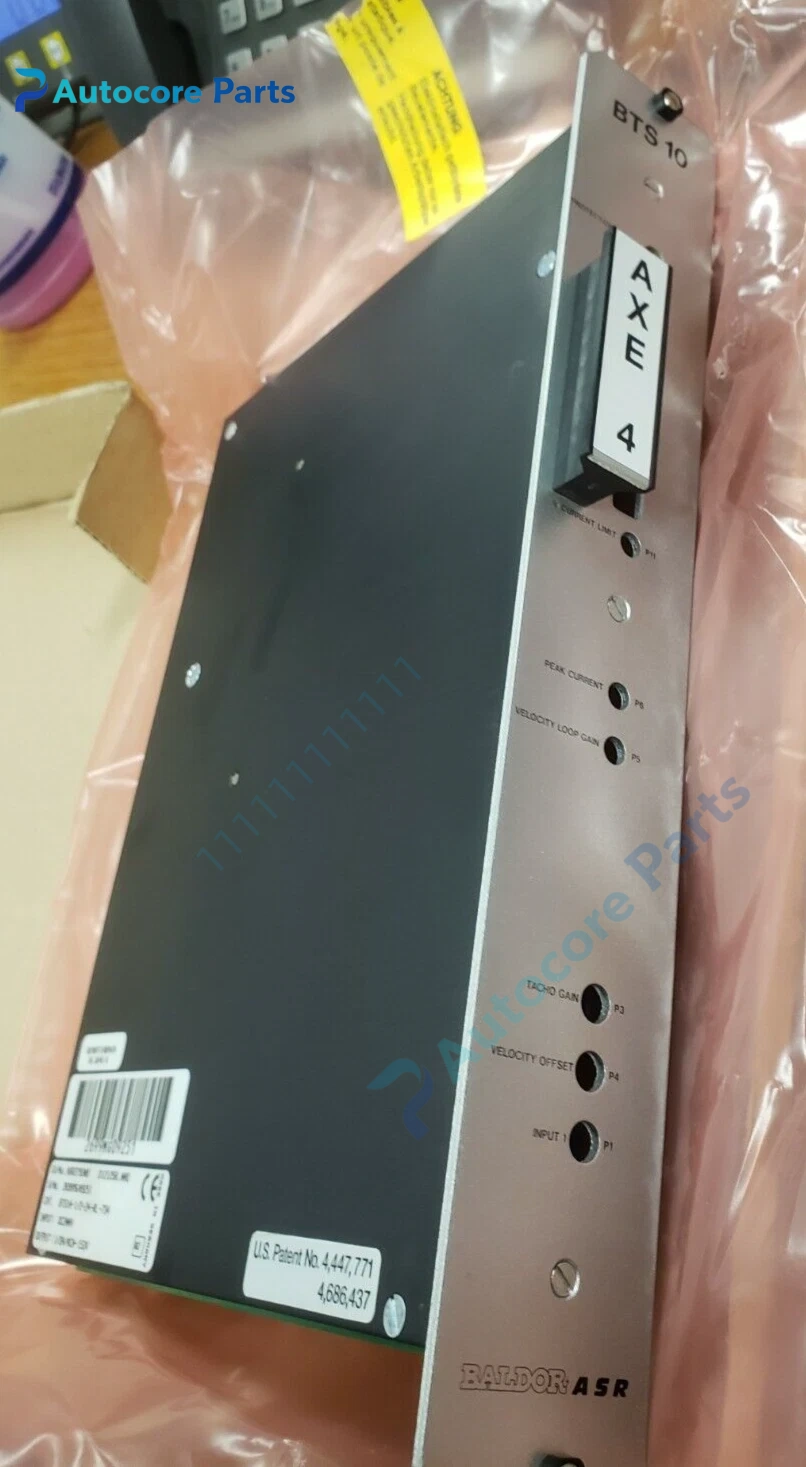

Baldor BTS10-1/2-24-RL-734 Servo Drive Unit

Module Feature

BTS10-1/2-24-RL-734 belongs to Baldor BTS10 series rack mount servo drive. It is a plug-in rack servo amplifier,designed for Staubli robotic systems and high-precision automation machinery. It supports closed-loop position,speed and torque control. Equipped with encoder feedback interface,digital I/O and bus communication. Widely applied in robotic arms,precision machining and automated production equipment.

Working principle

The drive receives motion command from upper controller,calculates current output through internal DSP. It outputs PWM power waveform to servo motor. Encoder feeds back real-time rotor position and speed to realize closed-loop motion control. Built-in protection circuit monitors current,voltage and temperature.

Onboard components

DSP control board,IGBT power module,encoder signal processing circuit,digital/analog I/O circuit,status LED array,rack backplane connector.

LED indicators

Power LED,run LED,fault LED,encoder link LED.

Hardware self-diagnosis

Overvoltage,undervoltage,overcurrent,overtemperature,encoder fault,output short circuit,communication error detection.

Programming software

Baldor motion software,supports servo auto-tune,parameter configuration,fault log reading and motion program debugging.

Electrical & Process Parameters

Model:BTS10-1/2-24-RL-734 Brand:Baldor Device type:BTS10 Rack Mount Servo Amplifier Control power:24VDC Control mode:Position, speed, torque closed-loop control Feedback:Encoder interface Cooling:Forced air cooling Protection:Over voltage,under voltage,over current,over temperature,short circuit,encoder fault protection

Mechanical & Structure

Mounting:Rack plug-in module mounting Protection class:IP20 Housing:Metal reinforced printed circuit board assembly

Environmental

Operating temperature:0℃ ~ +45℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:CE,UL compliant Status: Baldor original BTS10 servo drive for Staubli robot and precision automation motion control

Installation

Follow strict ESD safety procedure before handling.Insert module into designated rack slot and lock securely.Connect power,motor cable and encoder wiring.Complete servo auto-tune and parameter commissioning before operation.

Interface

Rack backplane connector,motor power terminal,encoder port,digital/analog I/O terminal.

Diagnostic

Over current:motor winding short circuit,cable damage or mechanical jam. Encoder fault:broken encoder wire or poor connector contact. Overheat:fan failure or insufficient cabinet ventilation.

Product Brief

Baldor BTS10-1/2-24-RL-734 rack plug-in BTS10 servo amplifier,24VDC control supply,closed-loop motion control,specially matched for Staubli robot and high-precision automation equipment.
