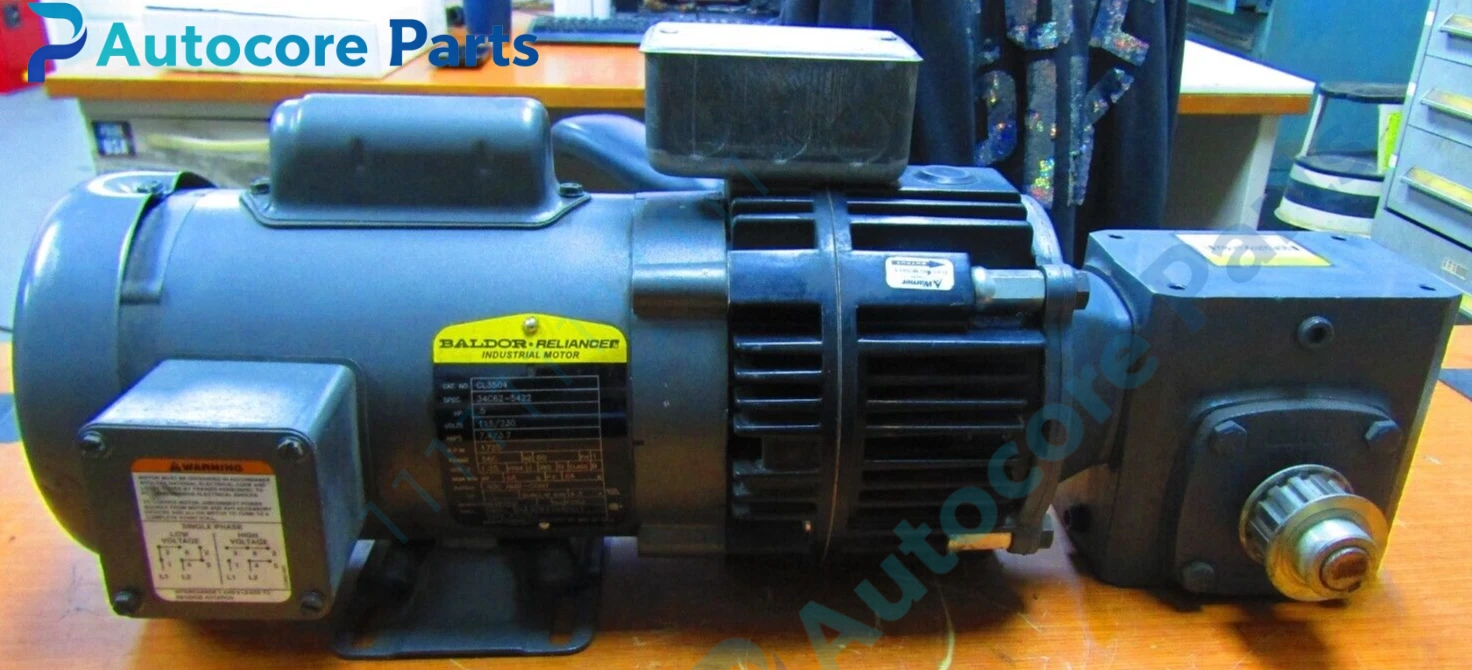

Baldor CL3504/W Single Phase Induction Motor Unit

Module Feature

CL3504/W belongs to Baldor CL series single-phase capacitor start induction motor,NEMA 56C frame. Rated 0.5HP,1800RPM,115/230VAC,TEFC totally enclosed fan cooled housing. C-face flange mounting without feet. Capacitor-start design provides high starting torque. Widely used for small pumps,gear reducers and general factory automation equipment.

Working principle

Capacitor creates phase shift for starting winding to generate startup torque. After reaching rated speed,start winding disconnects; main winding keeps motor continuous running. TEFC fan dissipates heat generated by winding loss.

Onboard components

Cast steel frame,stator winding,rotor assembly,start capacitor,centrifugal switch,ball bearings,cooling fan,terminal box.

LED indicators

No built-in LED indicators.

Hardware self-diagnosis

Insulation resistance test,bearing noise check,capacitor capacity measurement,visual inspection for winding burn and mechanical damage.

Programming software

No dedicated programming software.

Electrical & Process Parameters

Model:CL3504/W Brand:Baldor Device type:CL Series Single Phase Induction Motor Power:0.5HP Speed:1800RPM Voltage:115/230VAC Phase:1PH Frame:56C Enclosure:TEFC Frequency:60Hz Cooling:Fan forced air cooling Protection:TEFC enclosure protect against dust and moisture

Mechanical & Structure

Mounting:C-face flange mount Protection class:IP54 Housing:Stamped steel housing

Environmental

Operating temperature:-10℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:CE,UL compliant Status: Baldor CL series single-phase 56C C-face motor for small pump and machinery applications

Installation

Follow strict safety procedure before handling.Align C-face flange and couple with load equipment.Connect power cable to terminal box,check rotation direction before full load commissioning.

Interface

C-face flange interface,power terminal block,shaft output interface.

Diagnostic

Fail to start:damaged start capacitor or faulty centrifugal switch. Abnormal noise:bearing wear or rotor imbalance. Overheat:overload,wrong voltage or blocked cooling fan.

Product Brief

Baldor CL3504/W NEMA 56C C-face single-phase TEFC motor,0.5HP 1800RPM,115/230V capacitor start motor for small pump and gear reducer driving.
