Baldor VFSWDM3538-E Washdown Duty Induction Motor Unit

Module Feature

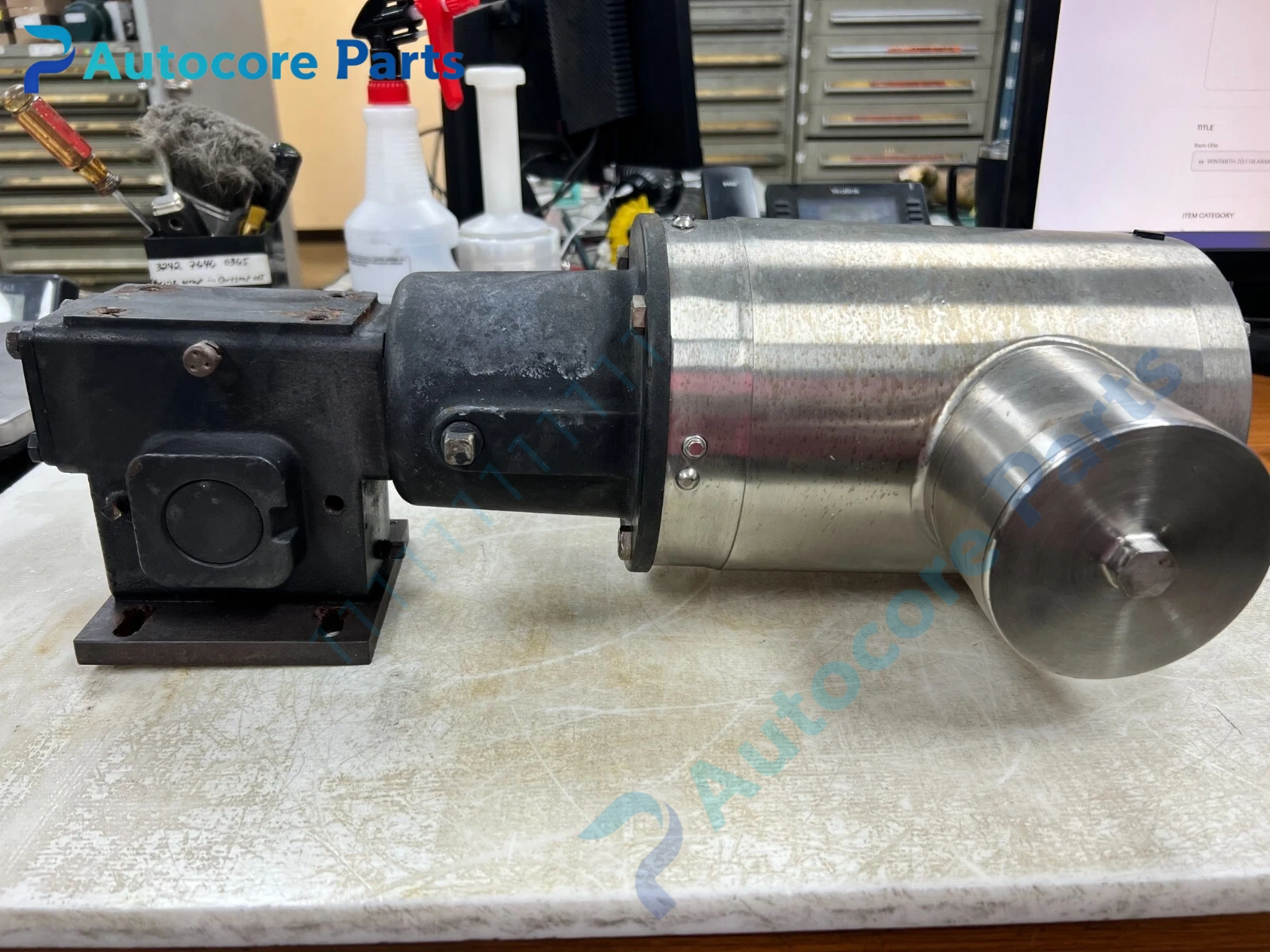

VFSWDM3538-E belongs to Baldor all stainless steel washdown duty three-phase squirrel-cage induction motor. Rated 0.5HP,1770RPM,208/230/460VAC,NEMA 56C footless C-face frame,TENV totally enclosed non-ventilated construction. Full stainless steel housing,sealed O-ring design,stainless hardware and internal shaft sealing structure,good resistance against high pressure washdown,water and cleaning chemical. NEMA Design B torque curve,NEMA Premium efficiency,Class F insulation,continuous duty. Widely used in food,beverage and pharmaceutical sanitary processing lines.

Working principle

Three-phase alternating current creates rotating magnetic field inside stator winding to drive squirrel-cage rotor. TENV design dissipates heat by natural convection through stainless steel housing without external fan. C-face flange allows direct coupling to sanitary pumps and gearboxes. Multiple sealing structures prevent moisture and cleaning liquid from penetrating motor interior.

Onboard components

Stainless steel frame,stator winding,squirrel-cage rotor assembly,sealed ball bearings,shaft slinger,O-ring sealing system,rotatable stainless steel terminal box,keyed output shaft.

LED indicators

No built-in LED indicators.

Hardware self-diagnosis

Winding insulation resistance test,bearing noise and temperature check,visual inspection of stainless housing corrosion,seal integrity and surface scratch.

Programming software

No dedicated programming software.

Electrical & Process Parameters

Model:VFSWDM3538-E Brand:Baldor Device type:All Stainless Steel Washdown 3-Phase Induction Motor Power:0.5HP Speed:1770RPM Voltage:208-230/460VAC Phase:3PH Frame:56C Enclosure:TENV Frequency:60Hz Insulation:Class F Cooling:Natural convection cooling Protection:TENV + multi sealing structure against water and chemical ingress

Mechanical & Structure

Mounting:C-face flange mount,footless Protection class:IP55 Housing:Stainless steel housing

Environmental

Operating temperature:-10℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:CE,UL,NEMA Premium compliant Status: Baldor original all stainless washdown motor for sanitary wet processing application

Installation

Follow strict safety procedure before handling.Align C-face flange and couple with sanitary pump or reducer.Connect three-phase power cable to stainless terminal box,verify rotation direction before commissioning.

Interface

C-face flange interface,power terminal block,keyed shaft output interface.

Diagnostic

Motor overheat:overload or poor heat dissipation due to dirt accumulation. Insulation failure:water/chemical penetration caused by damaged shaft seal. Abnormal noise:bearing wear under frequent washdown environment.

Product Brief

Baldor VFSWDM3538-E NEMA 56C footless C-face TENV all stainless steel washdown motor,0.5HP 1770RPM,208/230/460V,used for sanitary pumps and wet processing equipment in food & beverage industry.
