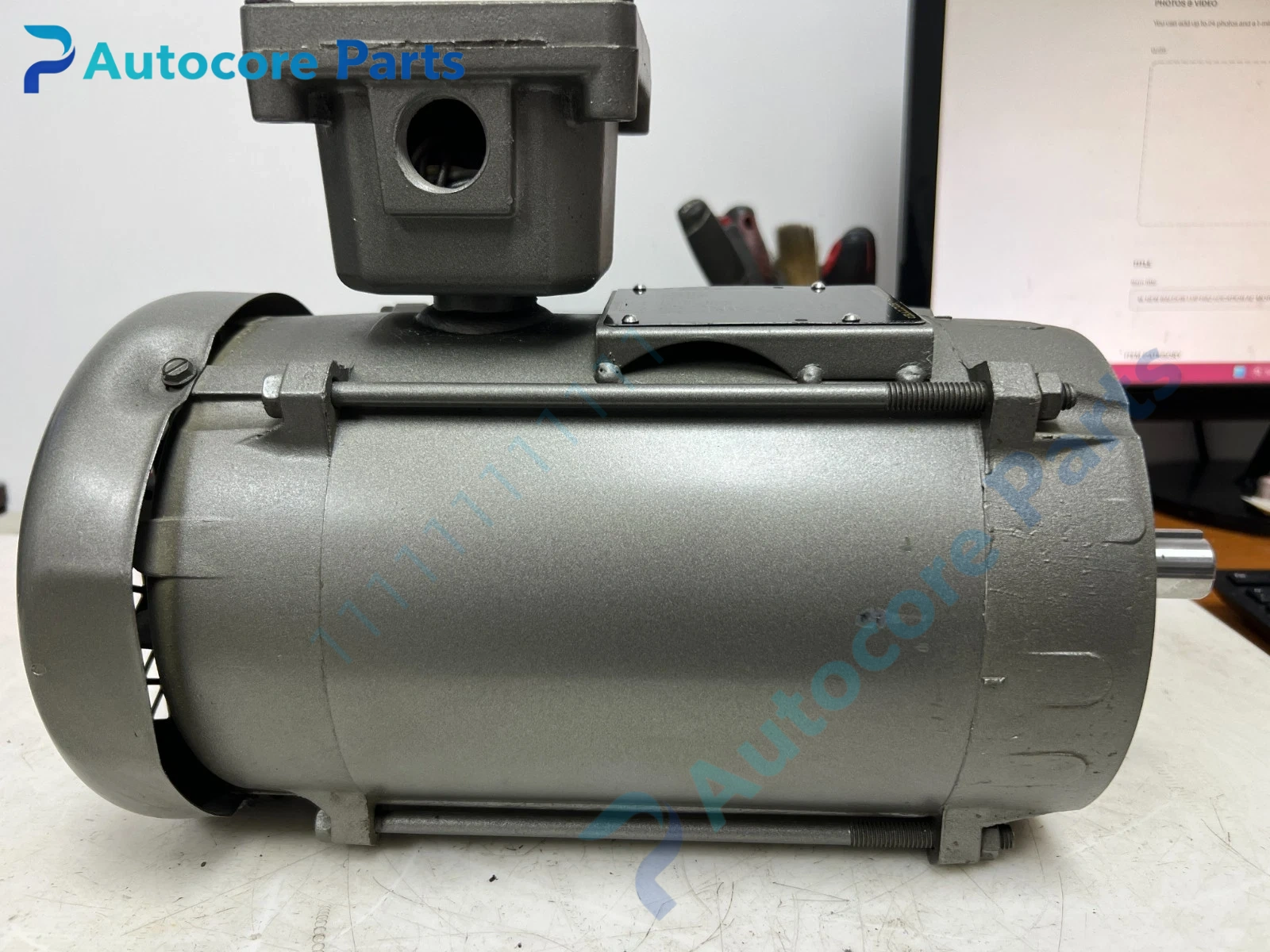

Baldor VXM14142T Explosion Proof Induction Motor Unit

Module Feature

VXM14142T belongs to Baldor XP series explosion-proof squirrel-cage induction motor. Rated 1HP at 60Hz,0.75HP at 50Hz,1800RPM,230/460VAC,NEMA 143TC frame,foot mount plus C-face flange,XPFC explosion-proof totally enclosed fan cooled construction. Approved for Class I Div 1 Group D,Class II Div 1 Group F & G hazardous locations. Design B torque characteristic,Class F insulation,continuous duty. Widely used on pumps,blowers and conveyors in chemical,petrochemical and solvent processing hazardous areas.

Working principle

Three-phase AC power creates rotating magnetic field to drive squirrel-cage rotor. XPFC explosion-proof housing contains internal sparks and prevents ignition of surrounding flammable gas/dust. Shaft-mounted fan provides forced air cooling inside sealed enclosure. Combined foot and C-face flange allows direct coupling to pumps and reducers.

Onboard components

Cast iron explosion-proof frame,stator winding,squirrel-cage rotor assembly,ball bearings,cooling fan,fan cover,explosion-proof terminal box,keyed output shaft.

LED indicators

No built-in LED indicators.

Hardware self-diagnosis

Winding insulation resistance test,bearing noise & temperature inspection,terminal box seal and flame path visual check,vibration measurement.

Programming software

No dedicated programming software.

Electrical & Process Parameters

Model:VXM14142T Brand:Baldor Device type:XPFC Explosion Proof 3-Phase Induction Motor Power:1HP@60Hz,0.75HP@50Hz Speed:1800RPM Voltage:230/460VAC @60Hz;190/380VAC @50Hz Phase:3PH Frame:143TC Enclosure:XPFC Frequency:50/60Hz Insulation:Class F Cooling:Shaft mounted fan forced cooling Protection:XP flame path for hazardous classified locations

Mechanical & Structure

Mounting:Foot mount + C-face flange mount Protection class:IP54 Housing:Cast iron housing

Environmental

Operating temperature:-10℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:UL,CSA compliant for hazardous area Status: Baldor original XP explosion-proof motor for gas and dust hazardous industrial locations

Installation

Follow strict safety procedure before handling.Mount motor on rigid base and align coupling with load.Connect three-phase power cable to explosion-proof terminal box,verify rotation direction before commissioning.Torque terminal box bolts to maintain flame path integrity.

Interface

Foot mounting holes,C-face flange interface,power terminal block,keyed shaft output interface.

Diagnostic

Fail to start:phase loss,low supply voltage or winding damage. Abnormal noise:bearing wear,loose fan or rotor imbalance. Hazard safety risk:damaged flame path or loose terminal box fasteners.

Product Brief

Baldor VXM14142T NEMA 143TC cast iron XPFC explosion-proof three-phase motor,1HP@60Hz,1800RPM,230/460V,foot and C-face mount,used for pumps and blowers in Class I/II hazardous classified environments.
