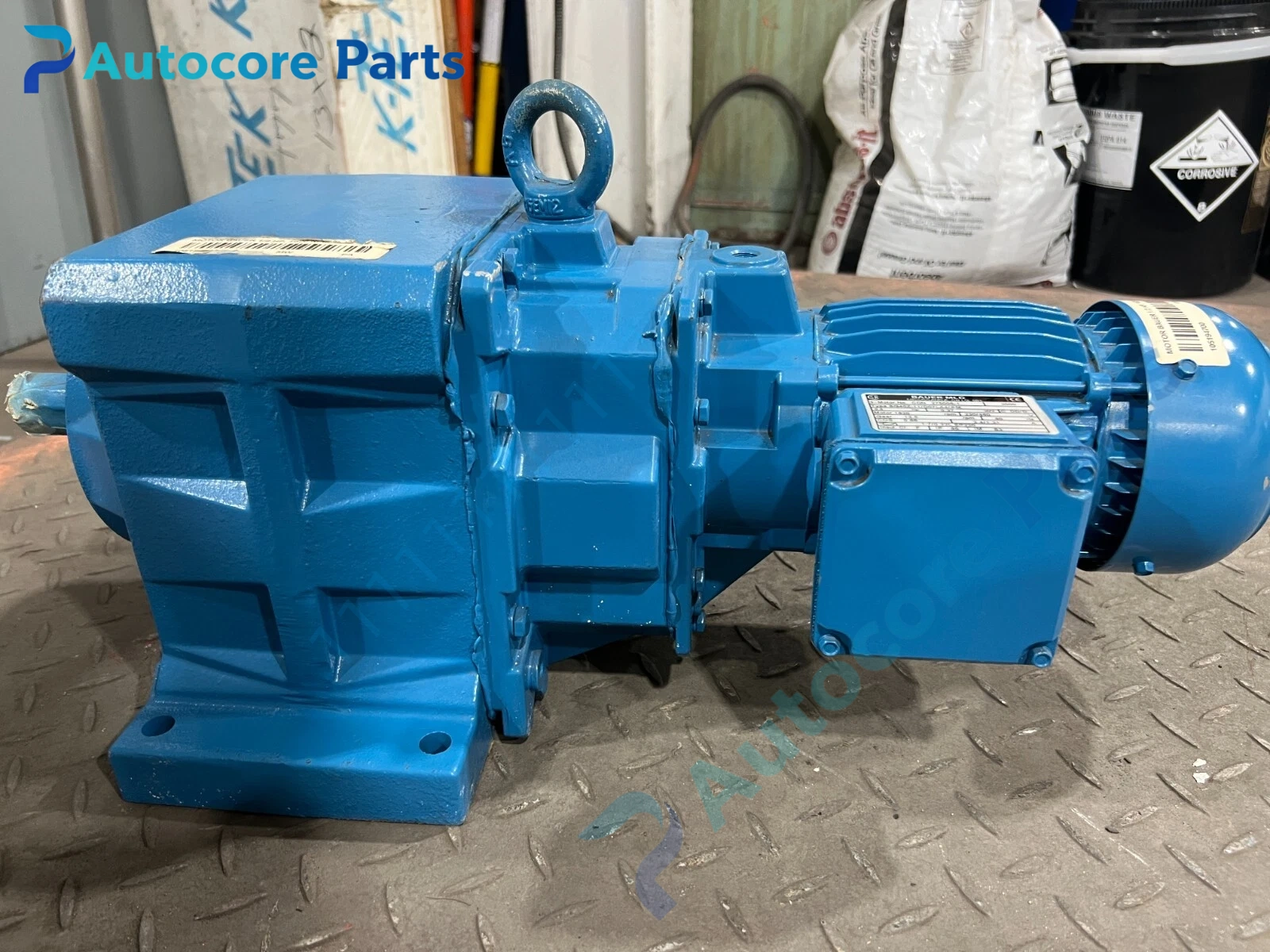

Bauer BG40Z-11/D07LA4/AM Helical Geared Motor Unit

Module FeatureBG40Z-11/D07LA4/AM belongs to Bauer BG series inline helical geared motor. BG40Z heavy duty helical gear housing, reduction ratio 11, matched with D07LA4 four-pole three-phase induction motor. Integrated coaxial structure, high mechanical rigidity and low vibration. Precision ground helical gears deliver quiet operation and high transmission efficiency. The suffix AM indicates special mounting or shaft configuration option. Widely used on conveyors, material handling equipment, packaging machinery and water treatment systems.

Working principleThree-phase motor generates rotating torque, power transmits through multi-stage helical gear set inside gearbox to reduce speed and amplify output torque. Gear oil splash lubrication provides continuous gear cooling and wear protection. The integrated housing keeps motor and gear unit aligned to minimize installation error.

Onboard componentsCast iron helical gear housing,helical gear pair,output shaft,D07LA4 stator & rotor assembly,cooling fan,fan cover,oil seal,oil level plug,terminal box.

LED indicatorsNo built-in LED indicators.

Hardware self-diagnosisGear oil level and oil quality inspection, bearing temperature & noise measurement, visual check for oil leakage, winding insulation resistance test, vibration detection.

Programming softwareNo dedicated programming software.

Electrical & Process ParametersModel:BG40Z-11/D07LA4/AM Brand:Bauer Gear Motor Device type:BG40Z Inline Helical Geared Motor Gear series:BG40Z Ratio:11 Motor type:D07LA4,3-phase 4-pole Lubrication:Splash oil lubrication Cooling:Shaft mounted fan forced air cooling Protection:IP55 enclosure,shaft oil seal against dust and oil leakage

Mechanical & StructureMounting:Foot mount Protection class:IP55 Housing:Cast iron gear housing

EnvironmentalOperating temperature:-10℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:CE,UL compliant Status: Bauer original BG40Z series coaxial helical geared motor for continuous industrial transmission

InstallationFollow strict safety procedure before handling.Mount geared motor on rigid base,align coupling with driven load.Connect three-phase power cable to motor terminal box,verify rotation direction,check gearbox oil level before full load commissioning.

InterfaceFoot mounting holes,keyed output shaft interface,power terminal block,oil filler / drain plug.

DiagnosticOil leakage:damaged shaft seal or overfilled gear oil. Abnormal noise:gear tooth wear or bearing damage. Motor overheat:overload,phase loss or poor ventilation.

Product BriefBauer BG40Z-11/D07LA4/AM inline helical geared motor,ratio 11,cast iron BG40Z gearbox matched with D07LA4 3-phase motor,IP54,for conveyors and packaging machinery.
