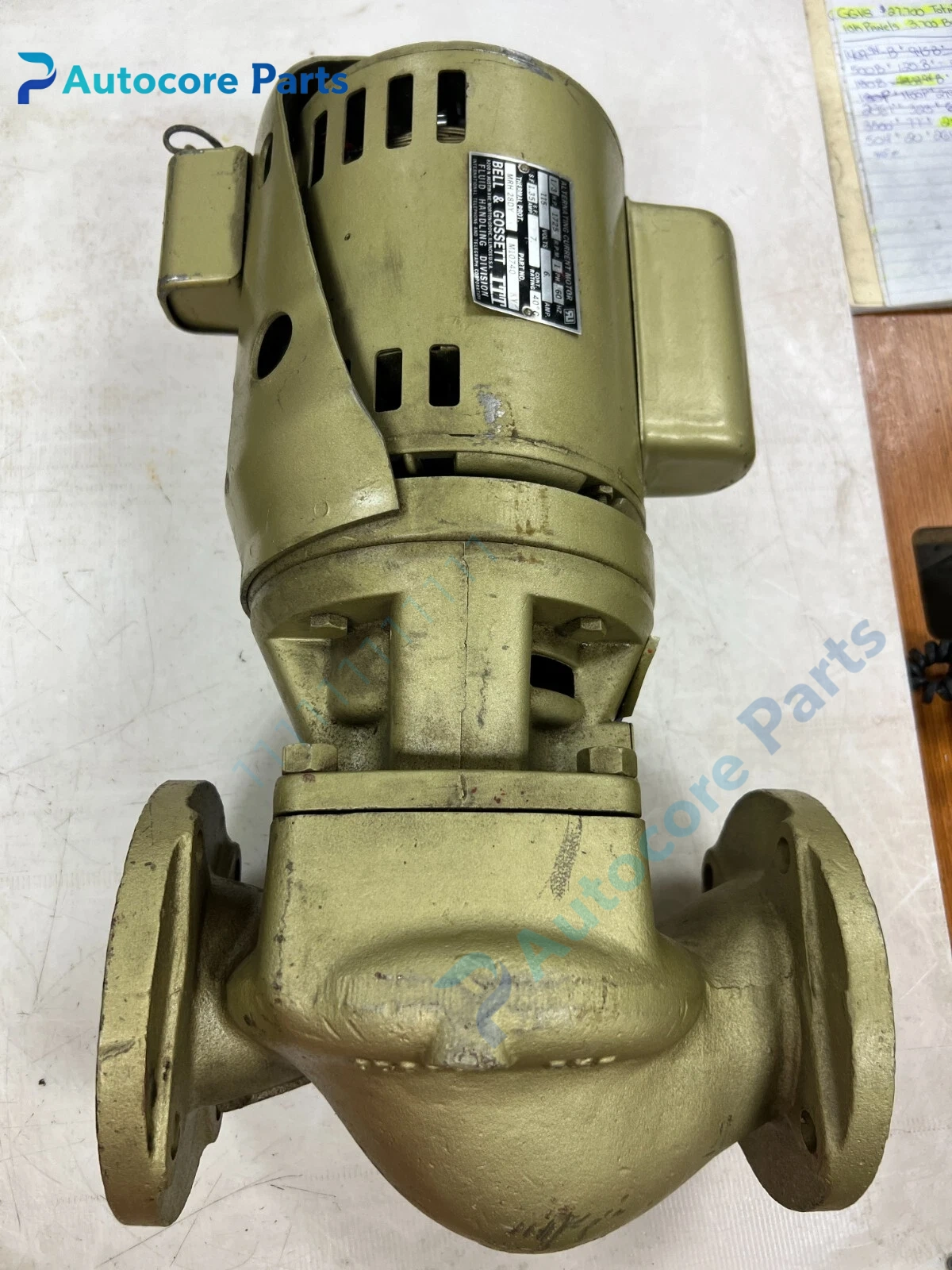

Bell & Gossett 102228LF HD3-AB Circulating Pump Unit

Module Feature102228LF belongs to Bell & Gossett HD3 AB series inline circulator pump under Xylem group. Three-piece split pump structure,all bronze volute and impeller,3-inch flange connection,1/3HP single-phase motor,115/230V dual voltage. Spring coupling and resilient motor mounting reduce vibration and noise. Modular bearing assembly design allows on-site maintenance without removing pump volute from piping. Widely used for potable domestic hot water circulation and water pressure boosting in commercial buildings.

Working principleMotor drives bronze impeller to generate centrifugal force to circulate water inside piping. Bronze wetted parts provide corrosion resistance for clean domestic water. Flexible spring coupling isolates motor vibration from pump casing to achieve quiet continuous operation.

Onboard componentsAll bronze pump volute,bronze impeller,mechanical shaft seal,bearing cartridge assembly,single-phase TEFC motor,spring coupling,3 inch flanges,gaskets and mounting hardware.

LED indicatorsNo built-in LED indicators.

Hardware self-diagnosisVisual inspection for seal leakage,check motor winding insulation resistance,bearing noise and temperature measurement,flow and pressure test.

Programming softwareNo dedicated programming software.

Electrical & Process ParametersModel:102228LF Brand:Bell & Gossett (Xylem) Device type:HD3 AB All Bronze Inline Circulator Booster Pump Motor Power:1/3HP Voltage:115/230VAC Phase:1PH Connection:3" flange Wetted material:Bronze Enclosure:TEFC Cooling:Shaft fan forced air cooling Protection:Mechanical seal against liquid leakage

Mechanical & StructureMounting:Inline flange mount Protection class:IP54 Housing:Bronze volute + stamped steel motor housing

EnvironmentalOperating temperature:-10℃ ~ +80℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:NSF,CE compliant Status: Bell & Gossett original HD3 AB domestic water inline circulation pump

InstallationFollow strict safety procedure before handling.Align pump flanges with pipeline and install gaskets.Connect single-phase power cable to motor terminal box,check rotation direction and test pressure before full load commissioning.

Interface3-inch flange interface,power terminal block,impeller shaft coupling interface.

DiagnosticNo flow:air trapped inside pump or motor rotation reversed. Water leakage:damaged mechanical shaft seal. Abnormal noise:bearing wear or loose spring coupling. Motor overheat:overload,wrong voltage or dry running.

Product BriefBell & Gossett 102228LF HD3 AB all bronze inline circulator booster pump,3 inch flange,1/3HP 115/230V single phase,for commercial building domestic hot water circulation and water boosting.
