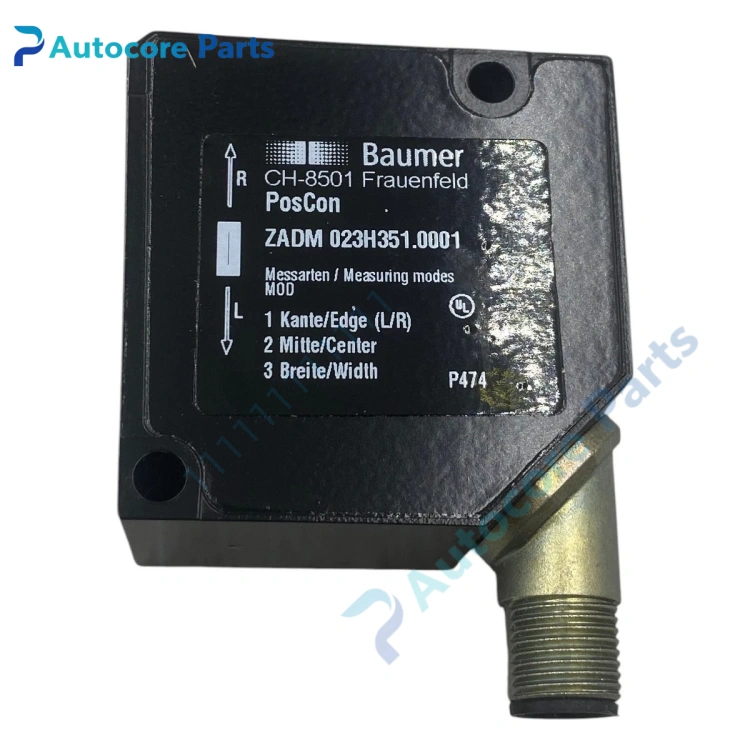

Baumer ZADM 023H351 Edge Position Sensor

Feature & Principle

It is Baumer PosCon ZADM series optical edge sensor. It uses infrared light emitter and receiver array to detect the edge position of passing material. It converts edge offset into analog or digital signal for web guiding system. It features high resolution, fast response frequency and strong resistance to dust. Compact integrated housing for simple installation on continuous production lines.

Specifications

Model: ZADM 023H351 Brand: Baumer Series: PosCon Measuring range: 350 mm Light source: IR diode 880 nm Resolution: 0.35 mm Response frequency: >500 Hz Output: 4-20mA analog, PNP/NPN switching Supply voltage: 15-28 VDC Max switching current: 100 mA Application: Printing machine, plastic extrusion, film production, web guiding Certification: CE

Components & Diagnostics

Infrared transmitter array, receiver array, signal processing PCB, status LED, M12 connector. Common faults: signal loss, unstable edge reading, contaminated optical window, wiring failure.

Product Brief

ZADM 023H351 optical edge sensor, Baumer PosCon series web position control spare widely used for printing and film production line overhaul and replacement.
