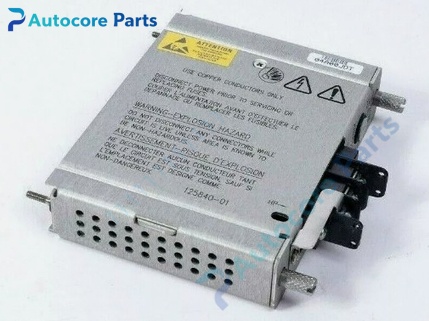

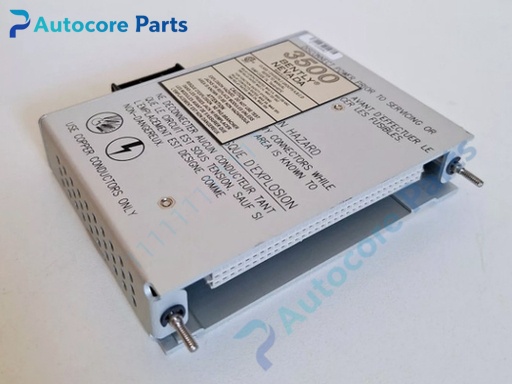

Bently Nevada 125840‑01 High‑Voltage AC Power Input Module

Technical Specifications

Model: 125840‑01

Brand: Bently Nevada

Product Type: High‑voltage AC power input module(PIM)

Matching Power Module: 127610‑01 high‑voltage AC power supply module

Input Voltage: 175‑264 VAC

Input Frequency: 47‑63 Hz

Max Input Current: 2.5 A

Protection: Built‑in fuse,over‑voltage,over‑current protection

Installation: Half‑height module,install at dedicated power slot on left side of 3500 rack

Remark: Cannot work independently; must pair with 127610‑01; redundant configuration supports hot‑swap; low‑voltage variant 125840‑02

Module Form: Half‑height rack‑mount plug‑in module

Weight: 0.32 kg

Dimension: 128 mm×165 mm×25 mm

Protection Grade: IP20

Certification: UL,CSA,CE

Working Temperature: ‑30℃ ~ +65℃,non‑condensing

Storage Temperature: ‑40℃ ~ +85℃

Humidity: 5%‑95% non‑condensing

Application: Turbine,compressor rotating machinery TSI protection system,power input interface for 3500/15 high‑voltage AC power assembly,system cabinet transformation and spare‑part replacement.

Product Details

125840‑01 is high‑voltage AC PIM power input module for Bently Nevada 3500/15 power system. It is not a standalone power supply,must be used together with 127610‑01 power supply module to form a complete high‑voltage AC power unit.

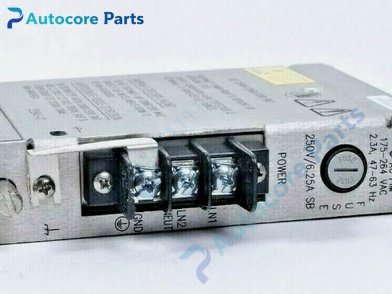

It receives 175‑264VAC field mains power,provides fuse protection and input filtering,then transfers power to 127610‑01 for DC conversion and backplane power distribution. The rack can install dual‑PIM+power‑supply for redundant power configuration,realize non‑stop hot‑swap replacement.

It occupies half‑height dedicated power slot on the left side of 3500/05 rack. 125840‑02 is low‑voltage AC PIM version for 85‑132VAC input scenario.

Note: This is legacy 3500 series spare component,widely used for replacement of turbine and compressor TSI monitoring & protection systems.
