Bently Nevada 133396‑01 Overspeed Detection I/O Sub‑Module

Technical Specifications

Model: 133396‑01

Brand: Bently Nevada

Product Type: Overspeed detection I/O sub‑module,external terminal version

Matching Main Module: 3500/53 electronic overspeed detection front‑panel module

Input Channel: 1 independent speed input channel

Supported Sensor: proximity probe,magnetic pickup

Input Signal Range: +10.0V ~‑24.0V

Input Impedance: 20 kΩ

Transducer Power:‑24 Vdc,max 40 mA

Recorder Output:4‑20mA proportional speed signal

Power Consumption: 8.0 W typical,supplied by 3500/53 main board

Remark: Cannot work independently; external green plug‑in terminals; internal terminal variant 133397‑01

Module Form: Full‑height plug‑in rear daughter board

Weight: 0.45 kg

Dimension: 241 mm×24.4 mm×165 mm

Protection Grade: IP20

Certification: UL,CSA,CE

Working Temperature:‑30℃ ~ +65℃,non‑condensing

Storage Temperature:‑40℃ ~ +85℃

Humidity: 5%‑95% non‑condensing

Application: Turbine,gas‑turbine,compressor overspeed protection system,receive speed pulse signal for 3500/53 module,system maintenance and spare‑part replacement.

Product Details

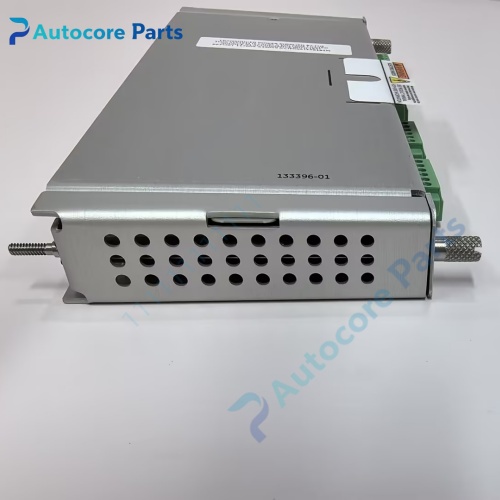

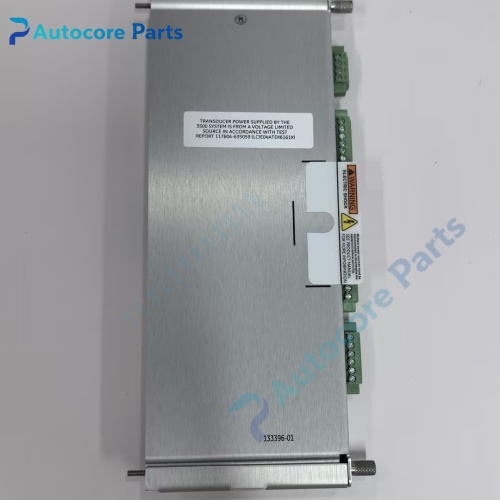

133396‑01 is external‑terminal I/O daughter‑board dedicated for Bently Nevada 3500/53 electronic overspeed detection module. It must install on rear side of 3500/53 front‑panel module and cannot operate alone.

It adopts detachable green external plug‑in terminals for field wiring,receives pulse signal from proximity probe or magnetic pickup. It supplies‑24V transducer power for sensor,transmits raw speed signal to 3500/53 front card for speed calculation,overspeed judgment and 4‑20mA recorder output.

One 3500/53 front module matches one piece of 133396‑01 for single‑channel speed input. 133397‑01 is internal‑terminal variant. Multiple sets of 3500/53+133396‑01 can be combined to build 2‑out‑of‑2 or 2‑out‑of‑3 overspeed voting protection system,comply with API‑670 standard.

Note: This is legacy 3500 series spare component,widely used for replacement of turbine and compressor TSI monitoring & protection systems.
