Bently Nevada 135613‑02 High Temperature Case Expansion Transducer

Technical Specifications

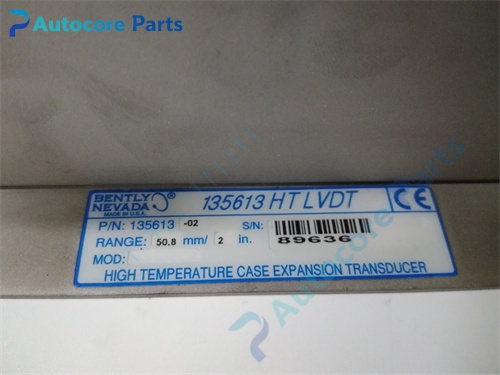

Model: 135613‑02

Brand: Bently Nevada

Product Type: High temperature case expansion transducer (HTLVDT)

Measuring Range: 50.8 mm / 2 inch

Accuracy: ±0.5 % FS

Power Supply: 24 VDC

Output Signal: 0‑5 VDC

Response Time: ≤ 1 s

Housing Material: Stainless steel

Protection Grade: IP67

Working Temperature: ‑40 ℃ ~ +85 ℃

Storage Temperature: ‑40 ℃ ~ +125 ℃

Humidity: 5 %‑95 %, non‑condensing

Weight: 1.2 kg

Dimension: 228 mm×127 mm×76 mm

System Compatibility: Bently Nevada 3500 monitor module for differential expansion measurement

Application: Steam turbine casing thermal expansion monitoring,measures casing thermal growth,matches 3500 series TSI system,field installation and spare‑part replacement.

Product Details

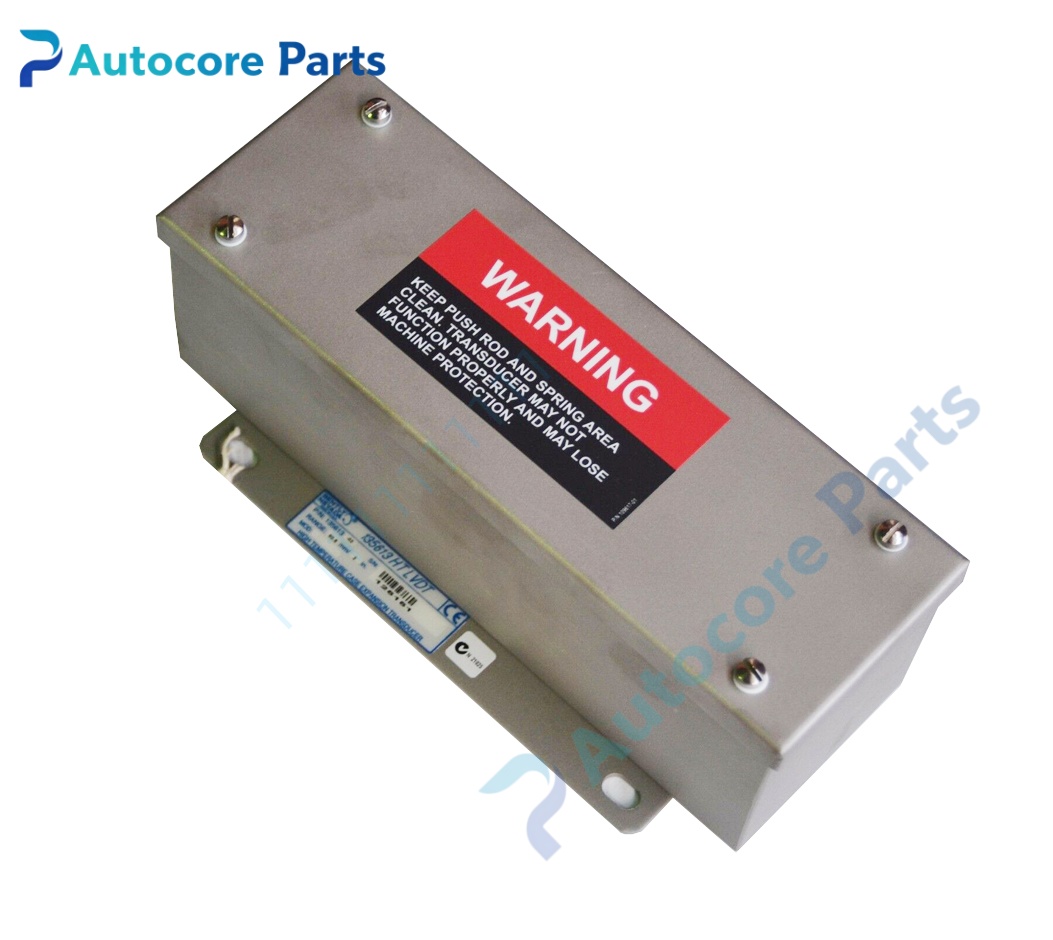

135613‑02 is a high temperature LVDT casing expansion transducer for steam turbine TSI monitoring system. It measures the absolute thermal expansion displacement of turbine casing during unit start‑up,shutdown and normal operation.

This HTLVDT sensor converts mechanical casing expansion displacement into standard 0‑5 VDC analog signal. It works with 3500 series differential expansion monitor module to complete casing expansion data collection and alarm judgement. The stainless‑steel enclosure adapts to harsh field environment of turbine workshop.

It is widely applied in steam turbine casing expansion measurement for power plant units. Please match correct measuring range during installation.

Note: This is legacy TSI field sensor spare component,widely used for replacement of turbine monitoring & protection systems.
