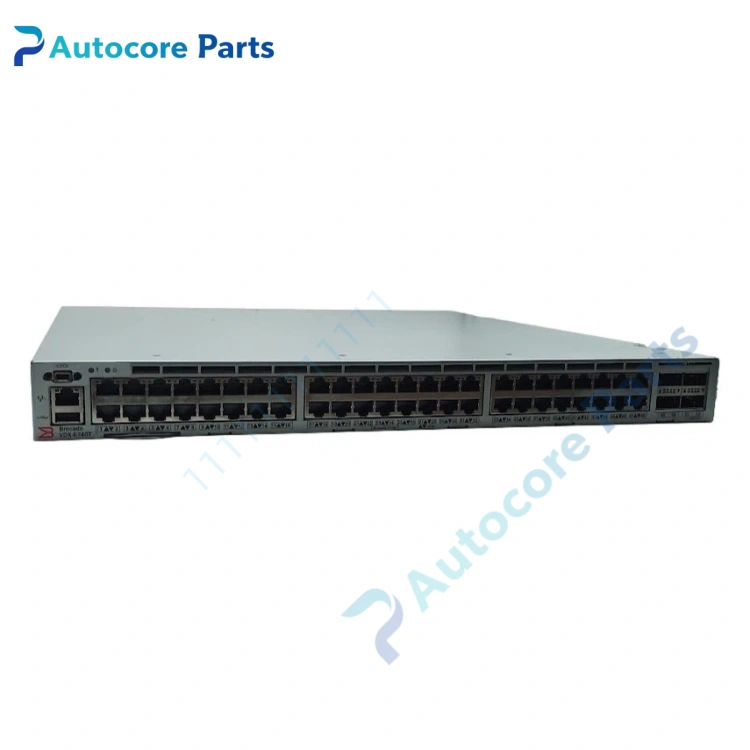

Brocade VDX6740T 10G Copper Fabric Switch

Feature & Principle

It is Brocade VDX series top-of-rack data center switch. It runs Network OS and supports VCS fabric technology for automatic multi-device pooling. Built-in DCB protocol suite including PFC, ETS and DCBX, supports FCoE storage converged network. The 40G QSFP+ port can be split into four 10G SFP+ channels with breakout cable. It adopts hot-swappable redundant power supply and fan module, front-to-back or back-to-front airflow option, suitable for high-density virtual server cabinet access.

Specifications

Model: VDX6740T Brand: Brocade (Extreme Networks) Form factor: 1U rack mount Ports: 48 × 10GBASE-T RJ45, 4 × 40G QSFP+ Switching capacity: 1.28 Tbps Forwarding rate: 960 Mpps Latency: 3 µs Jumbo frame: 9216 bytes Power input: 85~264VAC, redundant PSU Cooling: Hot swap fan Software: Network OS, VCS Fabric, DCB, IPv4/IPv6, BGP, OSPF Application: Data center ToR, virtualization cluster, storage converged network Certification: CE, UL

Components & Diagnostics

Main switching board, hot swap power supply module, fan tray, management interface, status LED indicator. Common faults: port link failure, fan alarm, power supply failure, firmware crash, high temperature shutdown.

Product Brief

VDX6740T data center fabric switch, Brocade network spare widely used for server room and cloud computing network cabinet maintenance and replacement.
