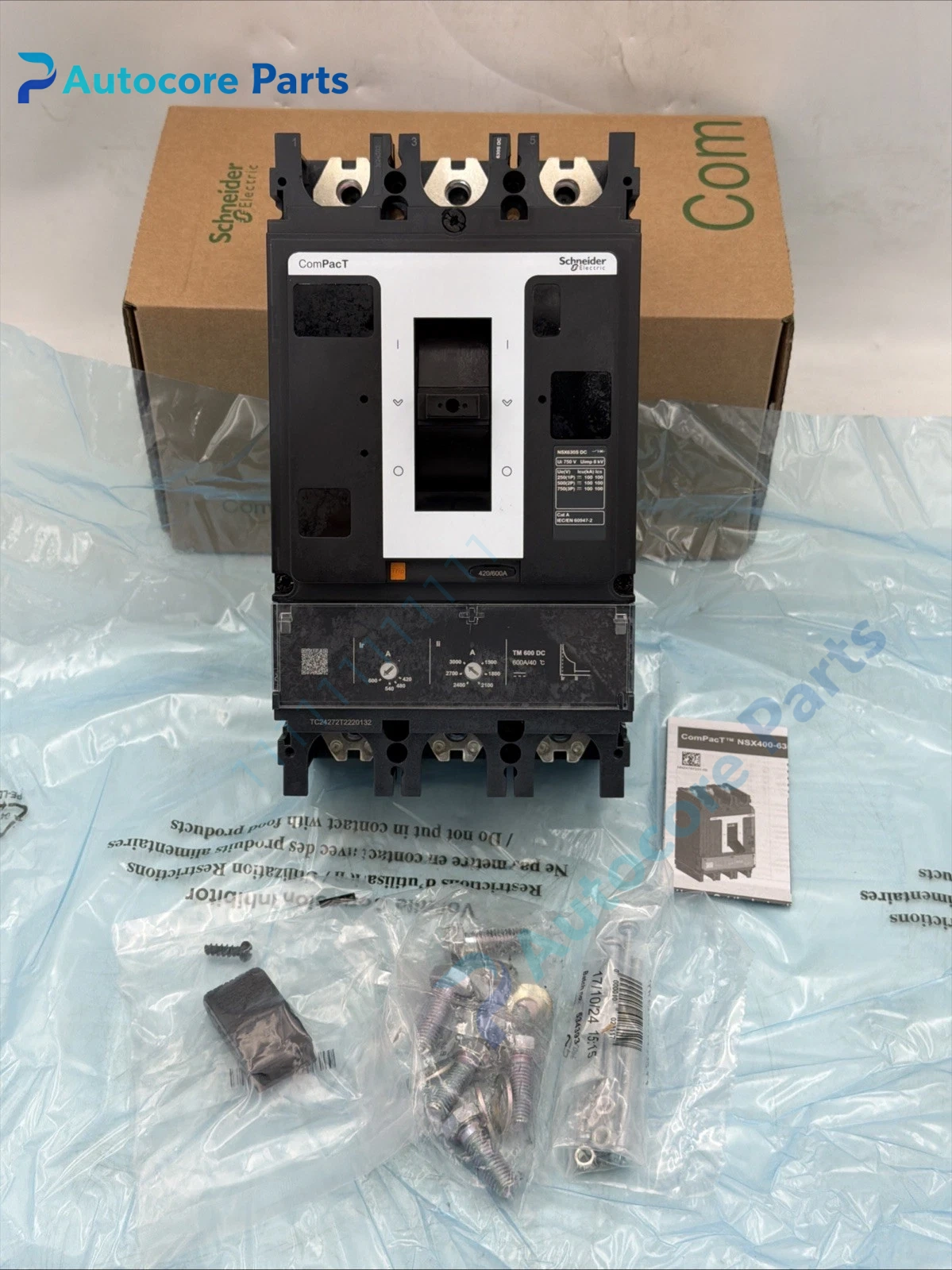

C63S3TM600D MCCB Unit

Feature & Principle

This molded case circuit breaker adopts thermal-magnetic trip structure. The thermal component responds to overload current, and the magnetic component trips rapidly under short-circuit fault, cutting off the circuit to protect cables and downstream electrical loads.

Specifications

Model: C63S3TM600D Type: Molded Case Circuit Breaker Poles: 3P Rated current: 600A Trip type: Thermal magnetic Mounting: Panel mounting Protection: IP20 Certification: CE

Components & Diagnostics

Breaker frame, thermal magnetic trip unit, main contact set, arc extinguishing chamber and operating handle. Common faults: false tripping, contact burnout, arc chamber carbon deposition and trip unit aging.

Product Brief

C63S3TM600D molded case circuit breaker, electrical spare widely used in industrial low voltage distribution cabinets.
