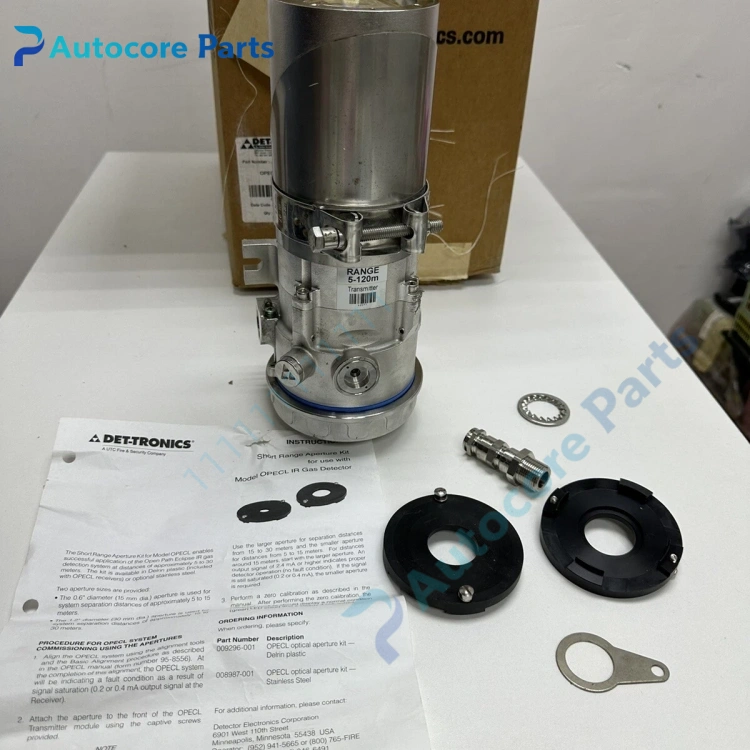

Det-Tronics OPECLS2M00T2T Open Path IR Gas Detector Transmitter Unit

Feature & Principle

This infrared transmitter emits modulated IR beam toward paired receiver. When combustible gas exists within the optical path, gas molecules absorb specific infrared wavelength. The receiver calculates gas concentration by measuring light attenuation. It supports HART communication and is certified for explosive hazardous zones.

Specifications

Model: OPECLS2M00T2T Brand: Det-Tronics (UTC) Series: OPECL Type: Transmitter for open path gas detector Detection range: 5 ~ 120 m Power supply: 18 ~ 30 VDC Communication: HART Enclosure: Explosion proof housing Certification: ATEX, IECEx, Class I Div 1 Protection: IP66

Components & Diagnostics

IR light source module, drive circuit, optical alignment assembly, terminal block, explosion-proof housing. Common faults: beam misalignment, lens contamination, light source aging, HART communication loss.

Product Brief

OPECLS2M00T2T gas detector transmitter, Det-Tronics safety instrument spare widely used for refinery, chemical plant and tank farm perimeter gas detection.
