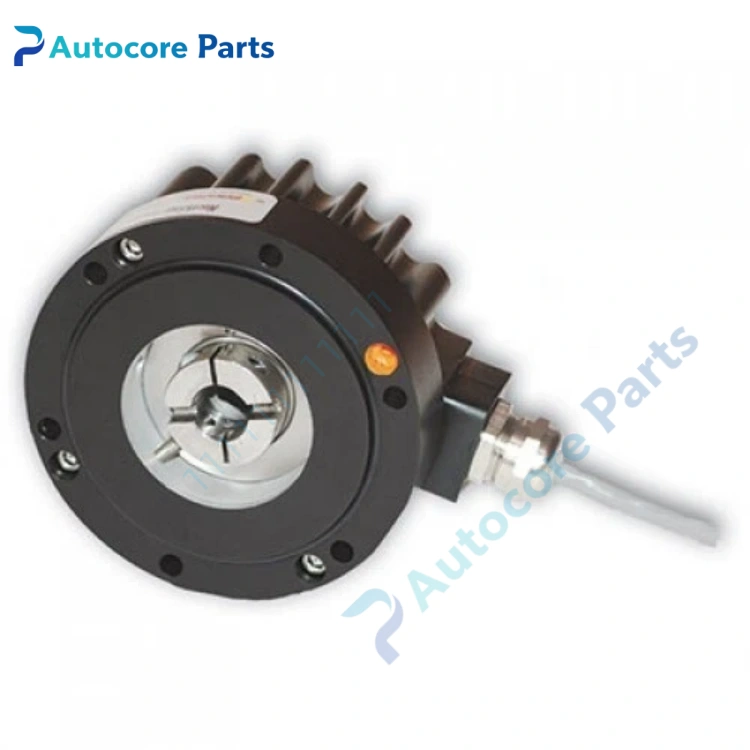

Dynapar NorthStar HSD44T2048A3K Rotary Encoder

Feature & Principle

It is Dynapar NorthStar HSD44 series heavy-duty hollow shaft optical incremental encoder. It converts shaft rotation into quadrature pulse signals for speed and position feedback. Equipped with stainless steel code disc and large optical sensing gap to reduce sensitivity to vibration and bearing runout. The integrated ASIC design improves reliability, with flexible isolated coupling to block shaft current damage. Rugged sealed housing resists dust, moisture and contaminants, suitable for continuous operation in severe industrial environments.

Specifications

Model: HSD44T2048A3K Brand: Dynapar (NorthStar) Series: HSD44 Resolution: 2048 PPR Output: 7272 differential line driver Supply voltage: 5-30 VDC Max speed: 6000 RPM Enclosure rating: NEMA 6 Operating temperature: -40 ~ +100℃ Shock resistance: 400g Vibration resistance: 20g Cable: 0.5m cable with 10-pin inline connector Application: Railway, heavy motor, mining equipment, crane and wind turbine speed feedback Certification: CE

Components & Diagnostics

Aluminum housing, stainless steel code wheel, optical sensor assembly, ASIC circuit board, isolated flexible coupling, cable assembly. Common faults: no pulse output, unstable signal, code disc contamination, coupling wear, cable breakage.

Product Brief

HSD44T2048A3K incremental encoder, Dynapar NorthStar HSD44 heavy duty rotary feedback spare widely used for heavy industry equipment overhaul and replacement.
