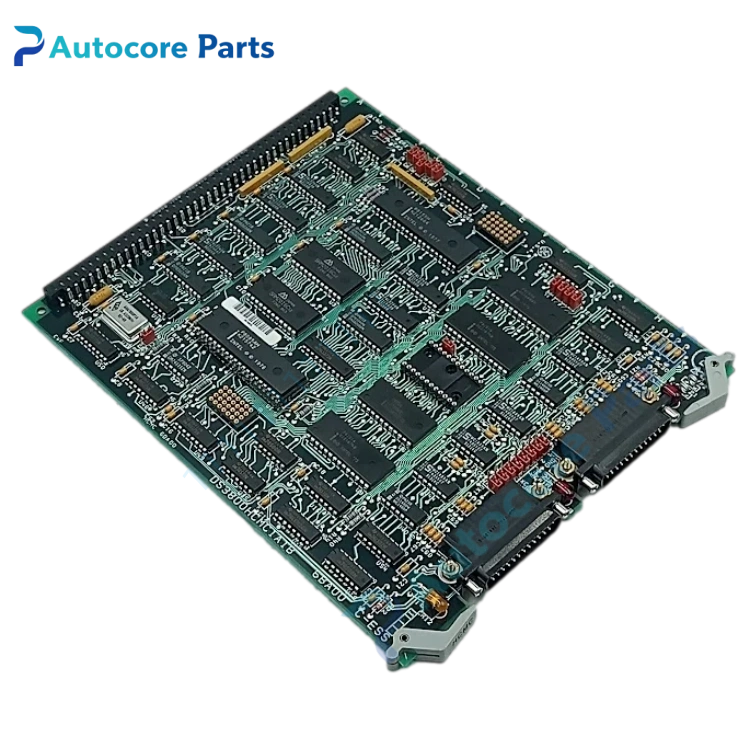

GE DS3800HCMC1A1B Communication Board

Feature & Principle

It is GE Mark IV turbine control universal communication board. It provides dual communication channels for data exchange between main controller and peripheral I/O or remote devices. Communication protocol can be configured via on-board jumpers, equipped with EPROM for protocol firmware storage. The PCB adopts conformal coating for anti-humidity and anti-dust, built-in signal isolation circuit to reduce interference. This model is discontinued and widely used for spare replacement of old gas turbine and steam turbine control racks in power plants.

Specifications

Model: DS3800HCMC1A1B Brand: GE System: Mark IV turbine control Function: Universal communication interface Channel: Dual channel Configuration: Jumper setting Firmware storage: EPROM Mounting: Rack plug-in PCB coating: Conformal coating Operating temperature: -20 ~ +70℃ Protection class: IP20 Application: Power plant gas turbine, steam turbine control cabinet Certification: CE

Components & Diagnostics

Main processing PCB, communication transceiver chip, EPROM chip, jumper block, backplane edge connector, status LED indicator. Common faults: communication channel failure, identification failure, firmware loss, poor backplane contact, circuit burnout.

Product Brief

DS3800HCMC1A1B communication board, GE Mark IV turbine control spare widely used for power plant turbine control cabinet overhaul and replacement.
