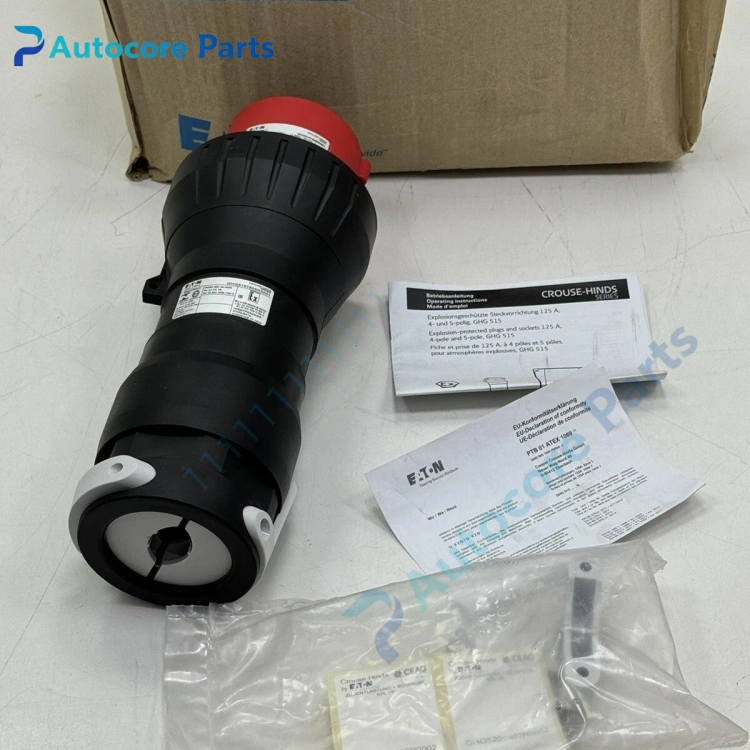

Eaton GHG5157506R0001 Explosion Proof Plug

Feature & Principle

It follows IEC60309 and explosion-proof de protection structure. It isolates internal live contacts from flammable gas, prevents electric arc ignition during plugging and unplugging. It provides reliable movable power connection for field equipment in explosive hazardous environment, with high impact resistant nylon housing and excellent waterproof and dustproof performance.

Specifications

Model: GHG5157506R0001 Brand: Eaton (CEAG / Crouse-Hinds) Poles: 5P (3P+N+PE) Rated current: 125A Rated voltage: 380~415V AC Protection class: IP66 Explosion certificate: ATEX, IECEx Housing material: Polyamide Cable range: 31~55mm Working temp: -20℃ ~ +40℃ Certification: CE, PTB

Components & Diagnostics

Insulated contact insert, copper pin contacts, polyamide shell, cable gland, locking ring, sealing gasket. Common faults: contact overheating, locking failure, seal aging water ingress, pin ablation, cable gland loose.

Product Brief

GHG5157506R0001 explosion-proof plug, Eaton hazardous area electrical spare widely used in petrochemical, mining, paint workshop and grain dust explosion risk site power distribution.
